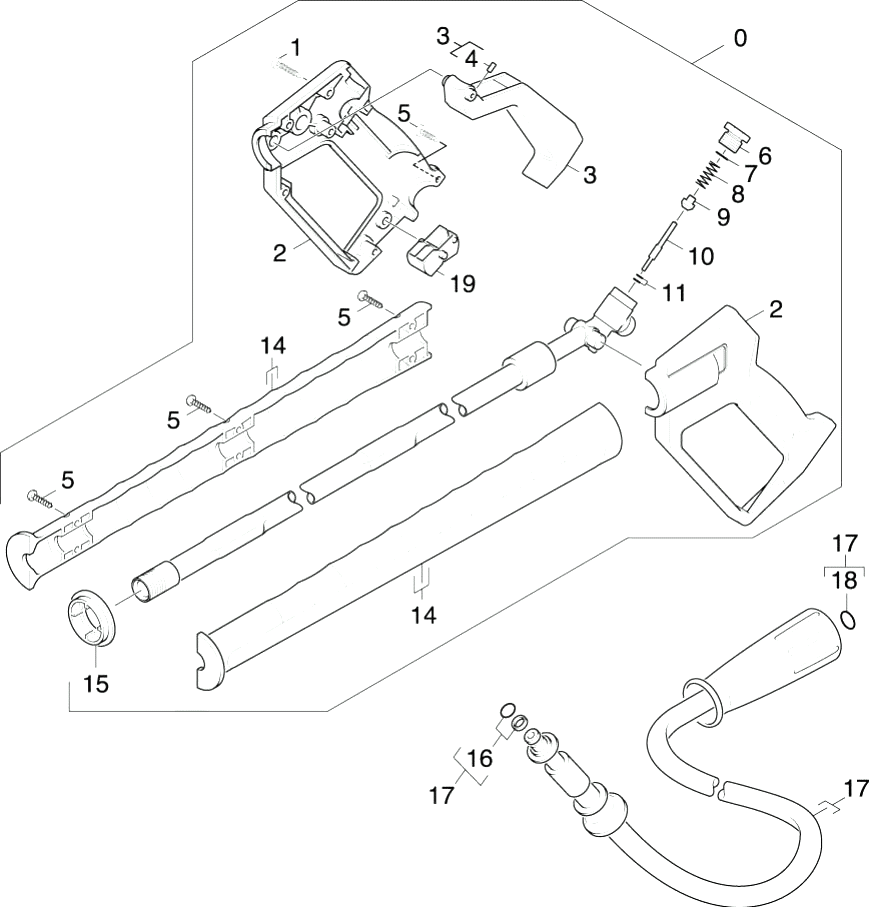

Karcher (Керхер) Pучной пистолет-распылитель (0.146-188.0)
Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85
| REF. |
АРТИКУЛ |
ОПИСАНИЕ |
ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
| 1 |
7.303-096.0 |
Screw 4x22 -ST-10.9-R2R (IN6RD) |
|
| 1 |
4.744-240.0 |
Switch complete |
|
| 2 |
7.303-096.0 |
Screw 4x22 -ST-10.9-R2R (IN6RD) |
|
| 2 |
5.321-206.0 |
Handhold few |
|
| 2 |
5.034-494.0 |
Retaining bracket |
|
| 3 |
5.481-331.0 |
Slider |
|
| 3 |
4.481-050.0 |
Lever |
|
| 4 |
7.307-417.0 |
Threaded pin M8x16 -45H-A2E ISO 4026 |
|
| 4 |
2.885-320.0 |
Cylinder head only for replacement |
|
| 5 |
5.321-669.0 |
Handhold few |
|
| 5 |
7.303-129.0 |
Screw 4x16 -10.9-R2R (K-In6Rd) |
|
| 6 |
5.411-067.0 |
Screw plug |
|
| 7 |
4.037-013.0 |
Hook |
|
| 7 |
6.362-584.0 |
O-Ring seal 12,42X 1,78 |
|
| 7 |
6.362-384.0 |
O-Ring seal 9x1,5 - NBR 70 |
|
| 8 |
4.363-691.0 |
O-Ring seal kpl. -nur fuer Ersatz- |
|
| 8 |
5.332-157.0 |
Helical spring |
|
| 9 |
4.421-739.0 |
Adapter pipelines AVS-M22x1,5 |
|
| 9 |
5.582-058.0 |
Valve disc |
|
| 10 |
5.107-259.0 |
Bar |
|
| 10 |
6.363-517.0 |
Supportring |
|
| 11 |
6.362-571.0 |
O-Ring seal complete /1ST.-R |
|
| 11 |
6.363-519.0 |
O-Ring seal 12,00x 2,00 |
|
| 12 |
2.885-238.0 |
Spare part set overflow valve |
|
| 13 |
5.581-270.0 |
Valve seat |
|
| 14 |
5.322-083.0 |
Handhold few extended Low End |
|
| 14 |
7.401-910.0 |
Sphere 3/8 G80-1.4034 DIN 5401 |
|
| 15 |
5.031-259.0 |
Moulded part |
|
| 15 |
6.362-151.0 |
O-Ring d. 10 x 2 NBR 70 |
|
| 16 |
6.363-115.0 |
O-Ring seal complete 1ST.-R. |
|
| 16 |
5.332-999.0 |
Helical spring |
|
| 17 |
6.391-238.0 |
High pressure hose DN6-10m |
|
| 17 |
5.769-082.0 |
Nozzle insert D2.0/ D2.7/ L38 |
|
| 18 |
5.332-258.0 |
Helical spring |
|
| 19 |
5.481-052.0 |
Lever |
|
| 19 |
7.401-908.0 |
Sphere 7 G300 -1.4301 DIN 5401 |
|
| 20 |
6.362-175.0 |
O-Ring seal 5,28x 1,78 |
|
| 21 |
6.362-113.0 |
O-Ring seal 6,0 x 2,0 NBR 70 |
|
| 22 |
5.443-370.0 |
Nipple |
|
| 23 |
5.427-320.0 |
Manifold |
|
| 24 |
6.362-703.0 |
O-Ring seal 6,0x1,5-NBR 70 |
|
| 25 |
5.411-161.0 |
CLOSING SCREW M10X1 |
|
| 26 |
5.411-152.0 |
Screw plug |
|
| 27 |
7.306-118.0 |
Screw M 6x35 -8.8-R3R (In6Rd) |
|
| 28 |
4.769-000.0 |
Nozzle insert complete |
|
| 29 |
6.363-282.0 |
O-Ring seal 6,3x2,4-NBR 70 |
|
