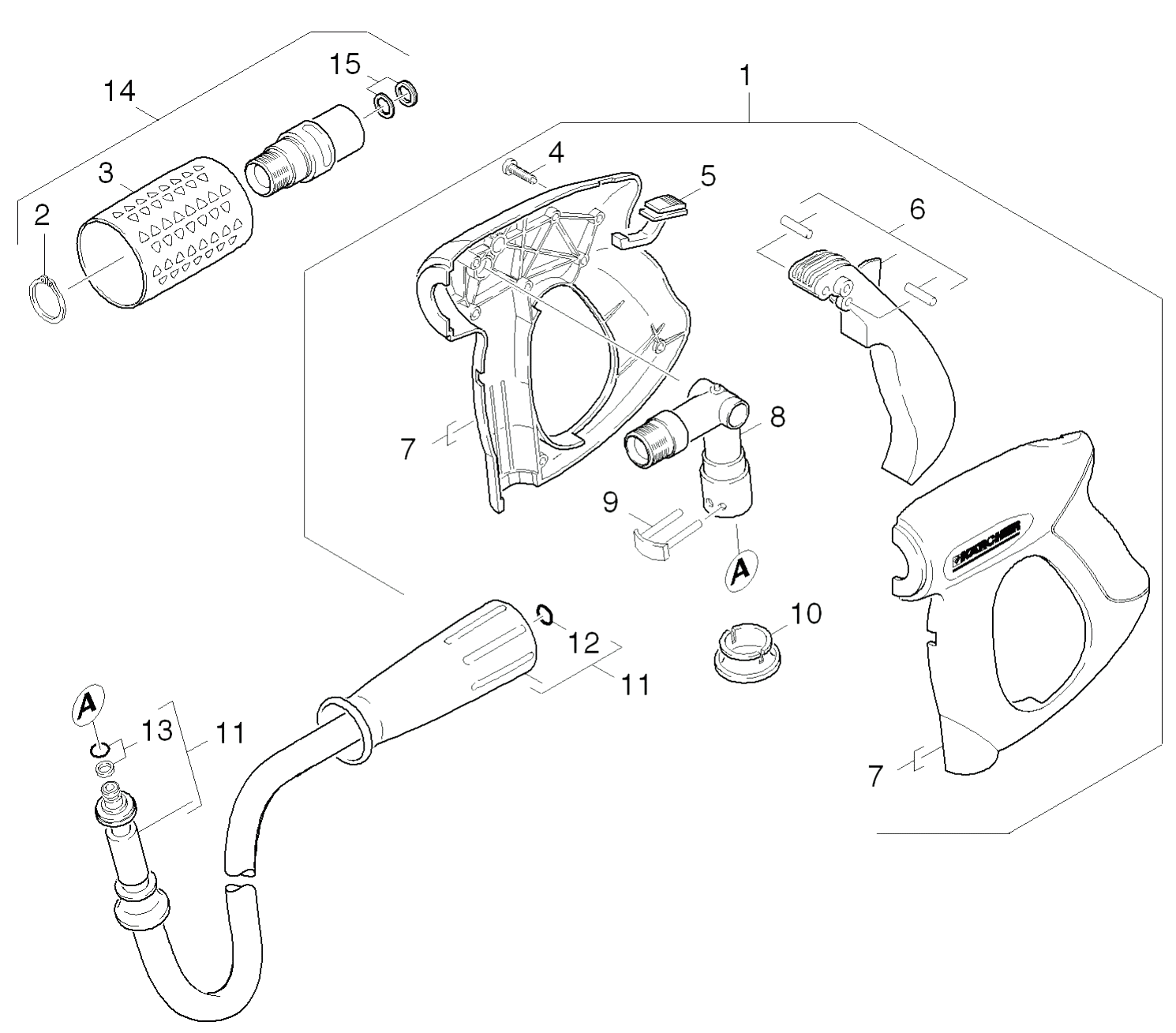

| REF. | АРТИКУЛ | ОПИСАНИЕ | ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
|---|---|---|---|
| 1 | 4.775-463.0 | HAND TRIGGER GUN EASY PRESS | |
| 1 | 4.403-002.0 | Coupler | |
| 1 | 6.389-768.0 | Hose clip | |
| 2 | 7.343-069.0 | Locking ring 25x1,2-1.4122 DIN 471 | |
| 2 | 6.389-534.0 | Hose | |
| 3 | 5.321-668.0 | Handle | |
| 4 | 7.303-096.0 | Screw 4x22 -ST-10.9-R2R (IN6RD) | |
| 5 | 5.587-147.0 | Valve housing | |
| 5 | 5.481-331.0 | Slider | |
| 6 | 6.362-078.0 | O-Ring seal 13,3x2,4 | |
| 7 | 5.443-285.0 | Hose stem | |
| 7 | 5.321-669.0 | Handhold few | |
| 8 | 5.310-062.0 | Nut | |
| 9 | 4.037-013.0 | Hook | |
| 10 | 5.364-095.0 | Flat gasket | |
| 10 | 5.110-596.0 | Sleeve | |
| 11 | 5.584-085.0 | Valve pin | |
| 11 | 6.391-351.0 | Hose assembly only for replacement DN8 4 | |
| 11 | 6.390-208.0 | Hose assembly DN8 40MPa 20m | |
| 12 | 5.070-140.0 | Tank | |
| 13 | 5.115-537.0 | Washer | |
| 13 | 7.373-022.0 | Hose clip A-16-27x9 -W2-2 DIN3017 | |
| 13 | 4.363-691.0 | O-Ring seal kpl. -nur fuer Ersatz- | |
| 14 | 6.365-053.0 | Compact seal 20X30X6 | |
| 14 | 6.392-256.0 | Piece of tube 19x4x430 | |
| 14 | 4.775-470.0 | Rotary controller 416L | |
| 15 | 5.112-420.0 | Bush | |
| 15 | 5.443-211.0 | Hose stem | |
| 15 | 4.363-695.0 | Grooved ring only for replacement | |
| 16 | 5.115-538.0 | Washer | |
| 16 | 7.303-112.0 | Screw 6x20 -10.9-R2R (In6Rd) | |
| 17 | 6.362-092.0 | O-Ring seal 36,0 X 2,0-NBR 70 | |
| 17 | 5.427-154.0 | Manifold | |
| 18 | 6.365-330.0 | Grooved ring | |
| 18 | 6.388-719.0 | FLEX HOSE(CUT TO REQD LENGTH-M'S) | |
| 19 | 4.550-607.0 | Cylinder head complete only for replacem | |
| 20 | 7.306-155.0 | Cylinder head screw M12x100 -8.8-A3E IS | |
| 20 | 5.112-286.0 | Bush | |
| 21 | 6.288-016.0 | Gear oil 1L | |
| 21 | 4.730-127.0 | Water filter | |
| 22 | 6.414-141.0 | Strainer | |
| 23 | 6.362-161.0 | O-Ring seal 19,3 X 2,4 | |
| 24 | 5.443-291.0 | Hose stem | |
| 25 | 5.310-076.0 | Nut | |
| 26 | 5.363-545.0 | Seal | |
| 27 | 5.363-336.0 | Seal | |
| 28 | 5.731-587.0 | Water filter |
