Karcher (Керхер) Pучной пистолет-распылитель (0.146-002.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

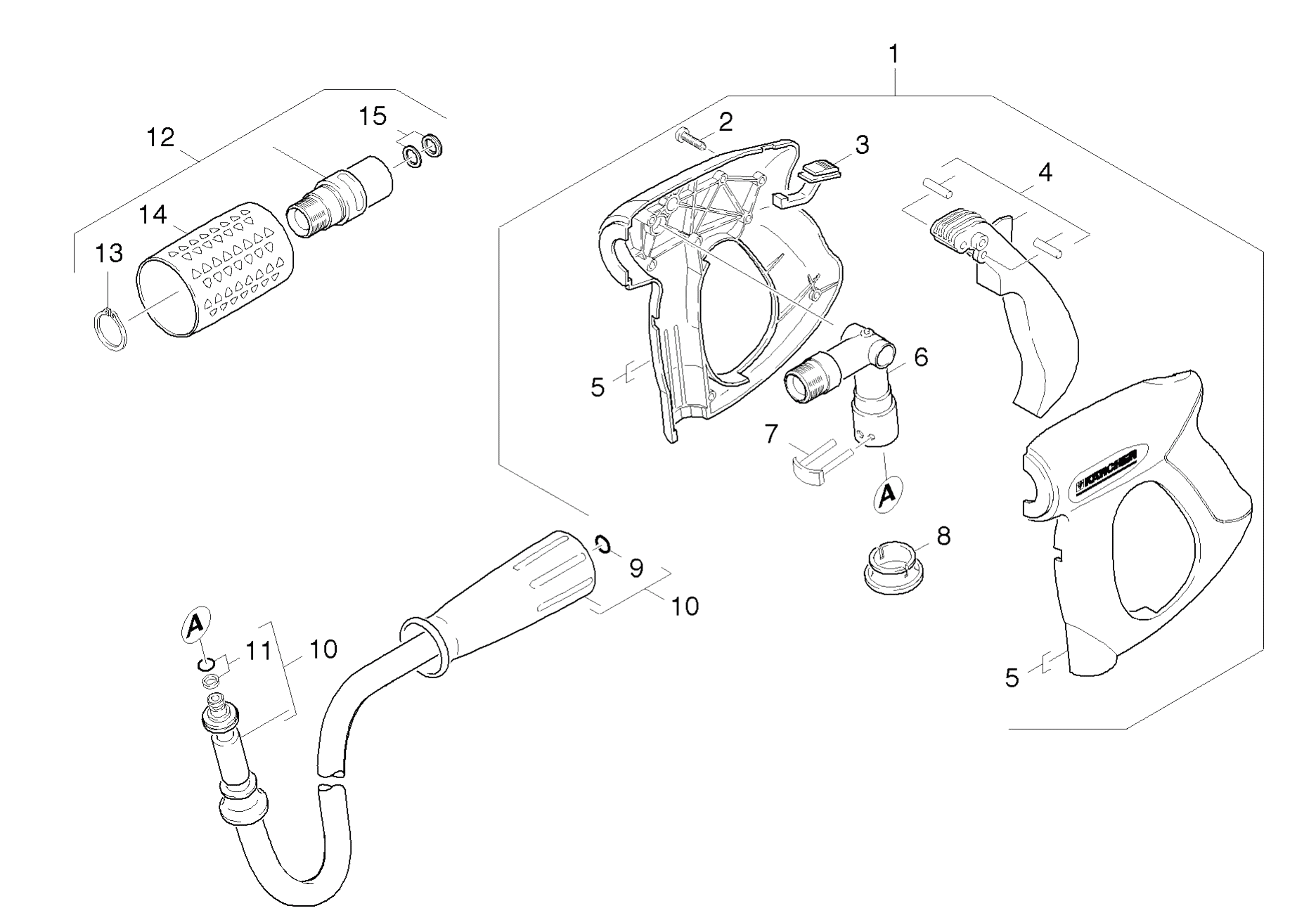

REF.	АРТИКУЛ	ОПИСАНИЕ
1	4.775-463.0	HAND TRIGGER GUN EASY PRESS
2	7.303-096.0	Screw 4x22 -ST-10.9-R2R (IN6RD)
3	5.481-331.0	Slider
5	5.321-669.0	Handhold few
7	4.037-013.0	Hook
8	5.110-596.0	Sleeve
10	6.391-875.0	Hose assembly premium DN6 30MPa 10m
11	4.363-691.0	O-Ring seal kpl. -nur fuer Ersatz-
12	4.775-526.0	Rotary controller 270 l
13	7.343-069.0	Locking ring 25x1,2-1.4122 DIN 471
14	5.321-668.0	Handle
15	4.363-695.0	Grooved ring only for replacement
18	6.362-384.0	O-Ring seal 9x1,5 - NBR 70
19	6.362-851.0	O-Ring seal 4 x 2 NBR 90
20	5.584-091.0	Valve pin check valve
21	4.769-034.0	Nozzle insert only for replacement
23	6.362-533.0	O-Ring seal 14,0 X 1,5-NBR 70
24	4.591-038.0	Overflow valve
27	5.110-630.0	Sleeve
28	7.314-629.0	Grooved pin 2x10 -A1 ISO 8742
29	5.583-147.0	Valve screw
30	6.362-468.0	O-Ring seal complete 1ST.-R.
31	4.291-014.0	Spindle complete
32	5.322-095.0	Handhold yellow RAL 1018
33	4.744-168.0	Switch complete
33	4.744-242.0	Switch kpl. -nur f?r Ersatz-
34	5.034-494.0	Retaining bracket
35	6.362-161.0	O-Ring seal 19,3 X 2,4
36	5.443-291.0	Hose stem
37	5.310-076.0	Nut
38	6.421-349.0	Pressure gauge 0-30 MPa
