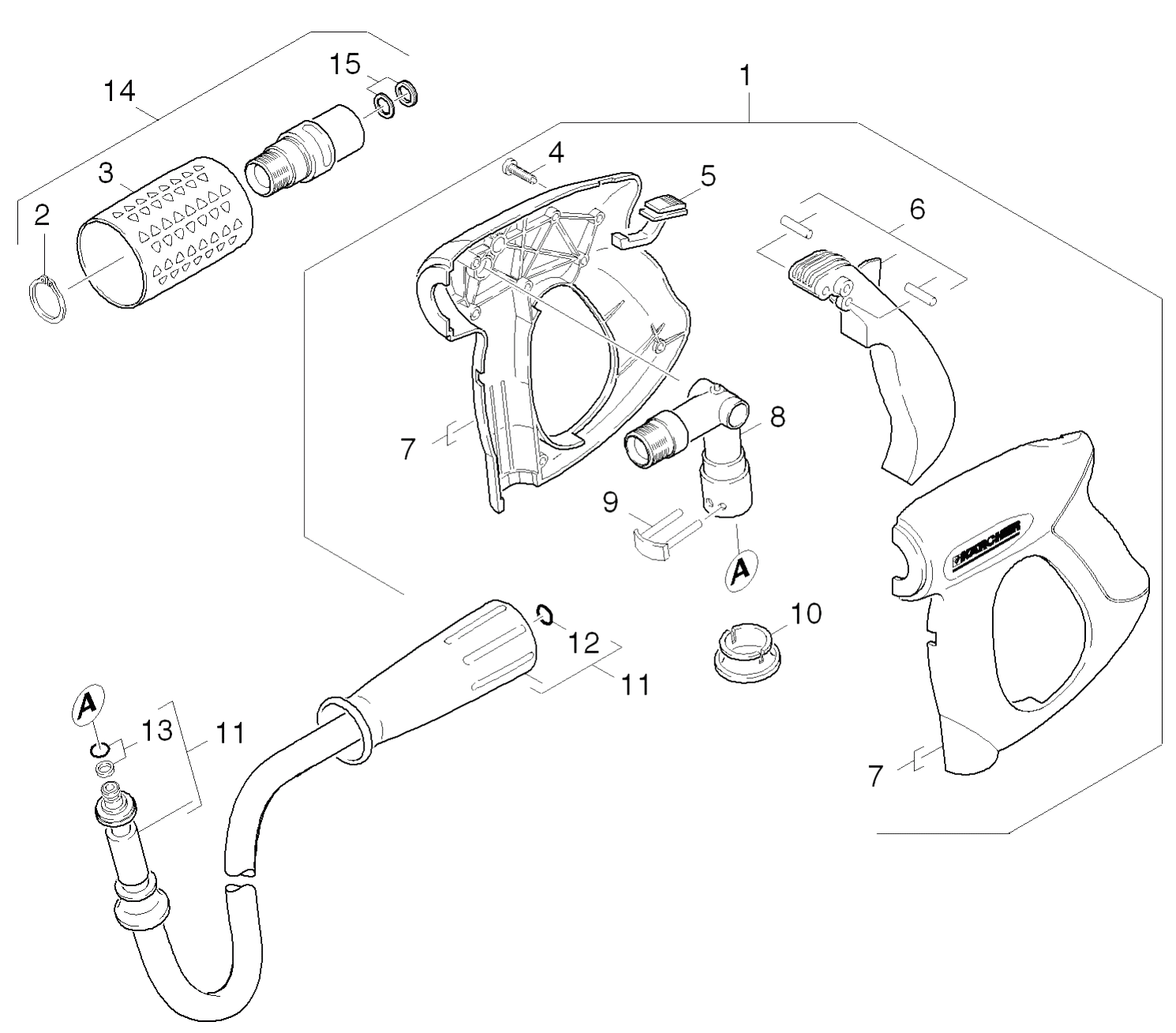

| REF. | АРТИКУЛ | ОПИСАНИЕ | ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
|---|---|---|---|
| 1 | 4.775-463.0 | HAND TRIGGER GUN EASY PRESS | |
| 2 | 7.343-069.0 | Locking ring 25x1,2-1.4122 DIN 471 | |
| 3 | 5.321-668.0 | Handle | |
| 4 | 5.481-118.0 | Lever | |
| 4 | 7.303-096.0 | Screw 4x22 -ST-10.9-R2R (IN6RD) | |
| 5 | 5.587-147.0 | Valve housing | |
| 5 | 5.481-331.0 | Slider | |
| 6 | 6.362-078.0 | O-Ring seal 13,3x2,4 | |
| 7 | 5.443-285.0 | Hose stem | |
| 7 | 5.321-669.0 | Handhold few | |
| 8 | 5.310-062.0 | Nut | |
| 9 | 4.037-013.0 | Hook | |
| 10 | 5.364-095.0 | Flat gasket | |
| 10 | 5.110-596.0 | Sleeve | |
| 11 | 5.584-085.0 | Valve pin | |
| 11 | 6.391-351.0 | Hose assembly only for replacement DN8 4 | |
| 11 | 6.390-208.0 | Hose assembly DN8 40MPa 20m | |
| 11 | 6.390-025.0 | High pressure hose DN 8 | |
| 12 | 5.070-140.0 | Tank | |
| 13 | 7.373-022.0 | Hose clip A-16-27x9 -W2-2 DIN3017 | |
| 13 | 4.363-691.0 | O-Ring seal kpl. -nur fuer Ersatz- | |
| 14 | 6.392-256.0 | Piece of tube 19x4x430 | |
| 14 | 4.775-471.0 | Rotary controller 700L | |
| 15 | 5.443-211.0 | Hose stem | |
| 15 | 4.363-695.0 | Grooved ring only for replacement | |
| 16 | 7.303-112.0 | Screw 6x20 -10.9-R2R (In6Rd) | |
| 17 | 5.427-154.0 | Manifold | |
| 18 | 6.388-719.0 | FLEX HOSE(CUT TO REQD LENGTH-M'S) | |
| 21 | 4.730-127.0 | Water filter | |
| 22 | 6.414-141.0 | Strainer | |
| 23 | 6.362-161.0 | O-Ring seal 19,3 X 2,4 | |
| 24 | 5.443-291.0 | Hose stem |
