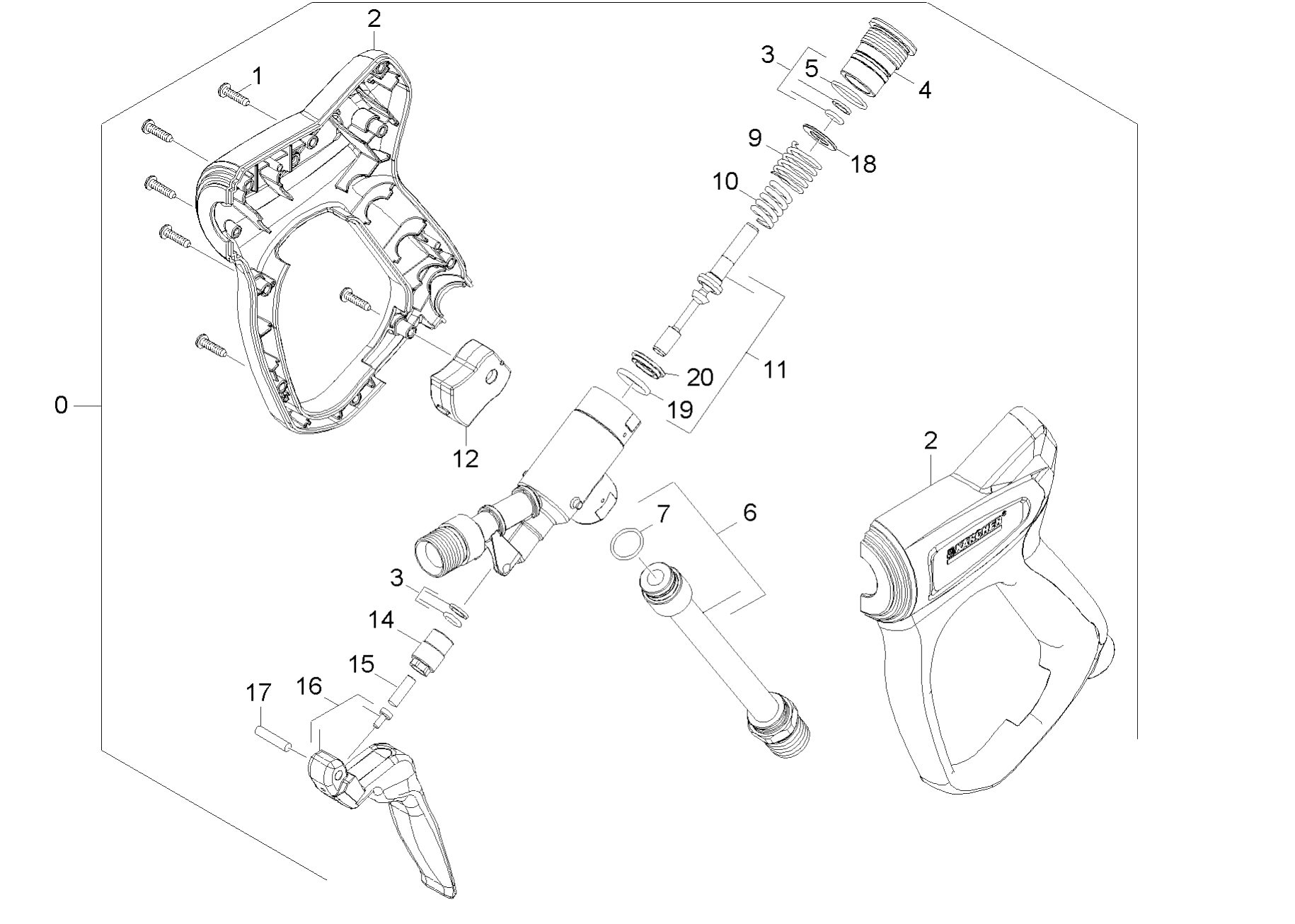

Karcher (Керхер) Pучной пистолет-распылитель (0.115-389.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

REF.	АРТИКУЛ	ОПИСАНИЕ
0	4.775-823.0	Hand trigger gun only for replacement
1	7.303-129.0	Screw 4x16 -10.9-R2R (K-In6Rd)
1	2.885-353.0	Spare part set cover grey
2	5.322-045.0	Handhold few 30MPa 2500l/h
3	2.885-211.0	Spare part set seal 30MPa
4	5.411-528.0	Screw plug 30MPa
5	6.362-397.0	O-Ring seal 18,0 X 1,5-NBR 70
6	2.885-213.0	Spare part set adapter 30MPa
7	6.363-069.0	O-Ring d. 15x1,5 NBR 90
9	5.332-046.0	Helical spring
10	5.332-977.0	Spring
11	2.885-210.0	Spare part set piston 30MPa
12	5.424-145.0	Trigger safety latch yellow
14	5.401-329.0	Screw connector 30MPa
15	5.317-403.0	Pin
16	2.885-212.0	Spare part set lever yellow
17	7.314-042.0	Straight pin 5m6x26 - A1 ISO 2338
18	5.114-571.0	Supportring 30MPa
19	6.362-174.0	O-Ring seal 16,0 X 2,0-NBR 70
20	6.343-137.0	Quick-fastener
20	5.363-767.0	Sealing insert 30MPa
21	6.435-310.0	Колесо D300
21	6.435-824.0	Wheel D 290 PU
22	5.110-378.0	Sleeve
23	5.050-913.0	Sheet metal component accessory shed
25	6.339-100.0	Rubber buffer
27	6.368-428.0	Cap
27	6.368-429.0	Cap
28	7.312-002.0	Washer 5-200HV-A3E ISO 7090
29	7.312-289.0	Washer 8 -A2 ISO 7093-1
