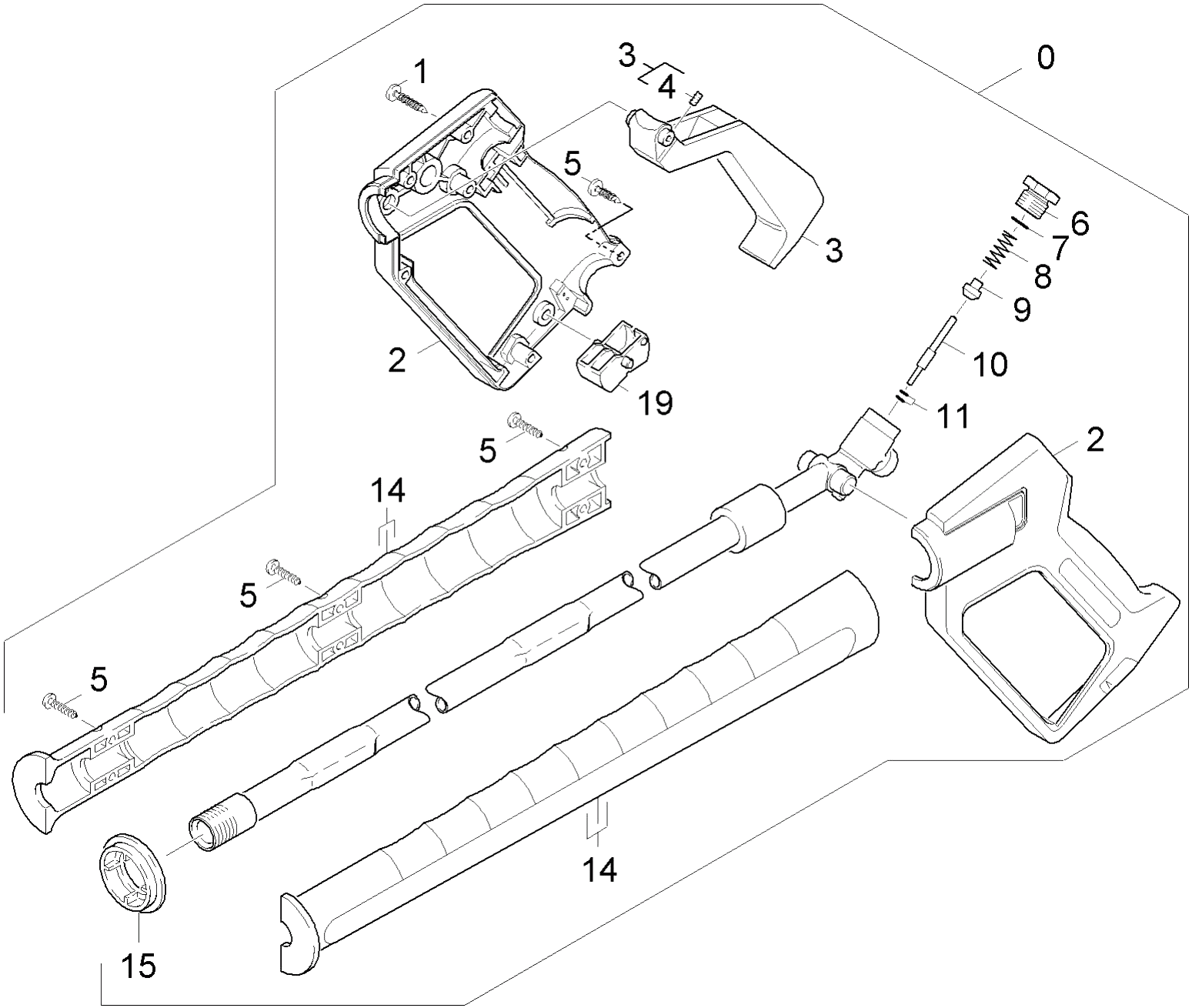

Karcher (Керхер) Pучной пистолет-распылитель (0.114-444.0)
Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85
| REF. |
АРТИКУЛ |
ОПИСАНИЕ |
ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
| 1 |
7.303-096.0 |
Screw 4x22 -ST-10.9-R2R (IN6RD) |
|
| 1 |
6.363-273.0 |
O-Ring seal 11,0 x 2,0 |
|
| 1 |
6.401-349.0 |
Wobble plate |
|
| 2 |
5.321-206.0 |
Handhold few |
|
| 2 |
5.110-714.0 |
Sleeve |
|
| 2 |
6.288-050.0 |
Engine oil 1L |
|
| 3 |
4.481-050.0 |
Lever |
|
| 3 |
2.884-916.0 |
Valve (3 St?ck) |
|
| 3 |
5.767-005.0 |
Rubber buffer |
|
| 4 |
7.307-417.0 |
Threaded pin M8x16 -45H-A2E ISO 4026 |
|
| 4 |
4.132-007.0 |
Drain plug only for replacement |
|
| 4 |
5.600-038.0 |
Blower wheel |
|
| 5 |
7.303-129.0 |
Screw 4x16 -10.9-R2R (K-In6Rd) |
|
| 5 |
7.401-128.0 |
Ball bearing 6202-2RS -W?lzl.St DIN 625 |
|
| 6 |
5.411-067.0 |
Screw plug |
|
| 6 |
4.769-034.0 |
Nozzle insert only for replacement |
|
| 6 |
6.343-218.0 |
Tolerance ring 15x6 |
|
| 7 |
6.362-584.0 |
O-Ring seal 12,42X 1,78 |
|
| 7 |
6.362-384.0 |
O-Ring seal 9x1,5 - NBR 70 |
|
| 7 |
5.363-590.0 |
Joint ring |
|
| 8 |
5.332-157.0 |
Helical spring |
|
| 8 |
4.584-022.0 |
Valve pin complete |
|
| 8 |
4.623-623.0 |
Motor complete |
|
| 9 |
5.582-058.0 |
Valve disc |
|
| 9 |
6.362-851.0 |
O-Ring seal 4 x 2 NBR 90 |
|
| 9 |
6.303-320.0 |
Screw M 5x 20-St-R2R |
|
| 10 |
5.107-259.0 |
Bar |
|
| 10 |
6.362-451.0 |
O-Ring seal 8,0 x 1,0 |
|
| 10 |
6.362-471.0 |
O-Ring seal 80,0 X 3,0 -NBR 70 |
|
| 11 |
6.362-571.0 |
O-Ring seal complete /1ST.-R |
|
| 11 |
4.030-070.0 |
Throttle complete |
|
| 11 |
6.367-051.0 |
Rotary shaft seal -20X37X8 NBR |
|
| 12 |
4.030-125.0 |
Joining piece only for replacement |
|
| 12 |
7.401-155.0 |
Ball bearing 6304-WAELZLAGERST DIN 625 |
|
| 13 |
4.580-308.0 |
Suction valve complete |
|
| 13 |
6.304-048.0 |
Cylinder head screw M6x19 |
|
| 14 |
5.322-083.0 |
Handhold few extended Low End |
|
| 14 |
5.044-713.0 |
Bracket motor |
|
| 15 |
5.031-259.0 |
Moulded part |
|
| 15 |
7.304-098.0 |
Hexagonal head screw M8x80-8.8-A2E ISO |
|
| 15 |
5.692-073.0 |
Air circulation |
|
| 16 |
5.550-304.0 |
Cylinder head |
|
| 16 |
6.303-125.0 |
Screw 5x20-Sonder In6Rd+Spitze |
|
| 17 |
5.802-288.0 |
Mounting part |
|
| 18 |
6.365-574.0 |
Grooved ring |
|
| 18 |
7.303-108.0 |
Screw 5x20 -10.9-R2R (In6Rd) |
|
| 19 |
5.481-052.0 |
Lever |
|
| 23 |
6.362-175.0 |
O-Ring seal 5,28x 1,78 |
|
| 24 |
7.401-908.0 |
Sphere 7 G300 -1.4301 DIN 5401 |
|
| 25 |
5.332-258.0 |
Helical spring |
|
| 26 |
5.003-062.0 |
Plate |
|
