Karcher (Керхер) Pучной пистолет-распылитель (0.114-244.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

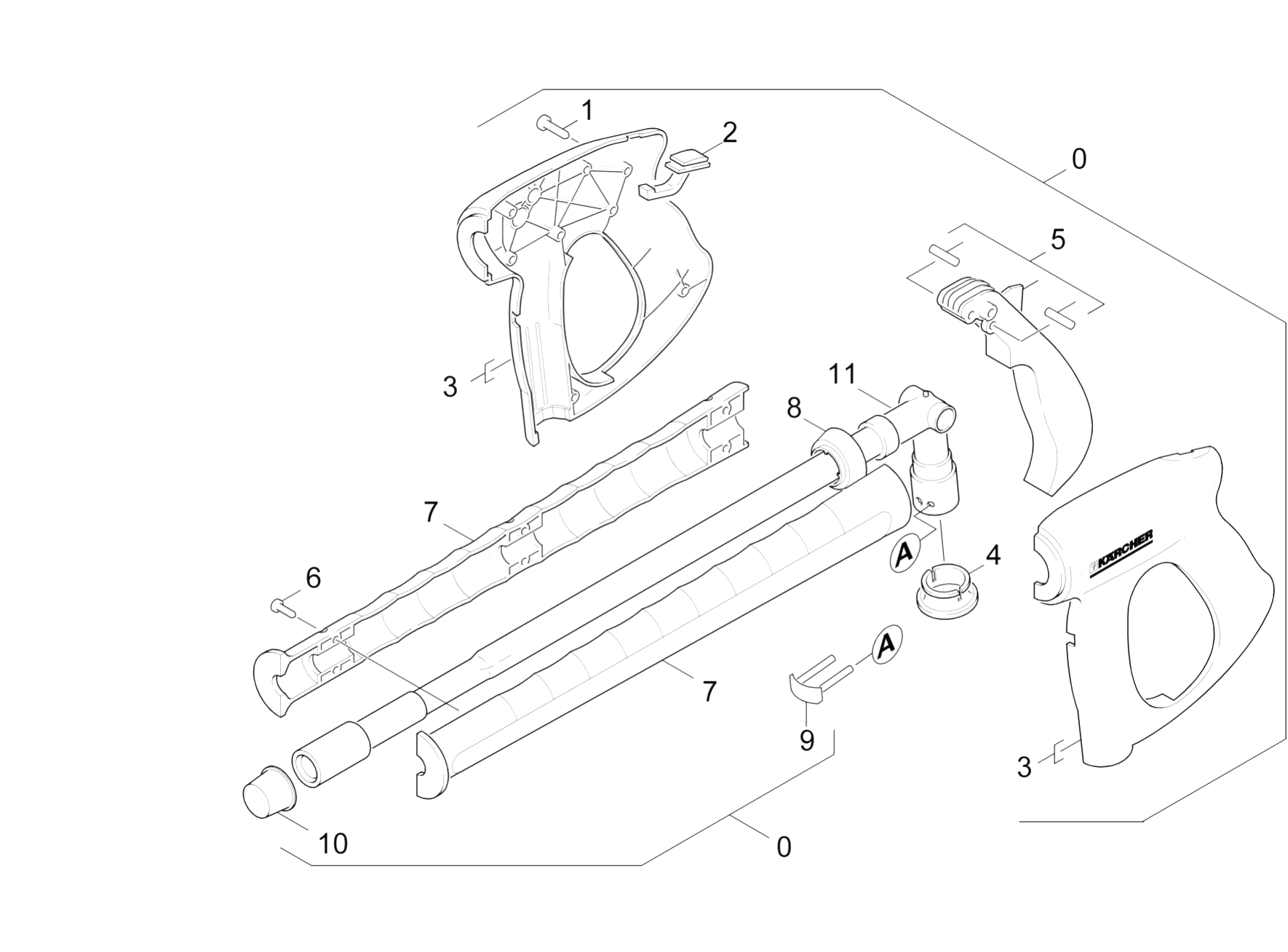

REF.	АРТИКУЛ	ОПИСАНИЕ
0	4.775-529.0	Trigger gun
1	6.491-618.0	Cap of a tank complete
2	5.481-331.0	Slider
2	5.064-127.0	Cover
3	4.030-108.0	Moulded part only for replacement
3	6.491-617.0	Seal exhaust
3	5.068-226.0	Cover grey HD 801 B
4	6.491-719.0	Ignition plug
5	6.491-540.0	Air filter -HONDA 17210ZE1822
5	7.311-427.0	Hexagon nut M8 -04-A2E ISO 10511
6	6.491-615.0	Starter rope complete only for replaceme
7	5.322-083.0	Handhold few extended Low End
7	6.288-050.0	Engine oil 1L
8	6.491-619.0	Spark arrester only for replacement
9	4.037-013.0	Hook
10	6.390-185.0	Hose assembly DN8 max.31,5MPa 15m
10	5.443-229.0	Hose stem
11	4.427-363.0	Manifold complete only for replacement L
11	5.310-065.0	Nut
13	7.311-512.0	Hexagon nut M 6-8-A2E ISO 7040
15	7.303-200.0	Saucer-head screw M 6x40-St-A0P DIN 603
16	9.803-098.0	Holder
17	9.802-710.0	"""Screw 5/16"""" x 1"""" NC """
