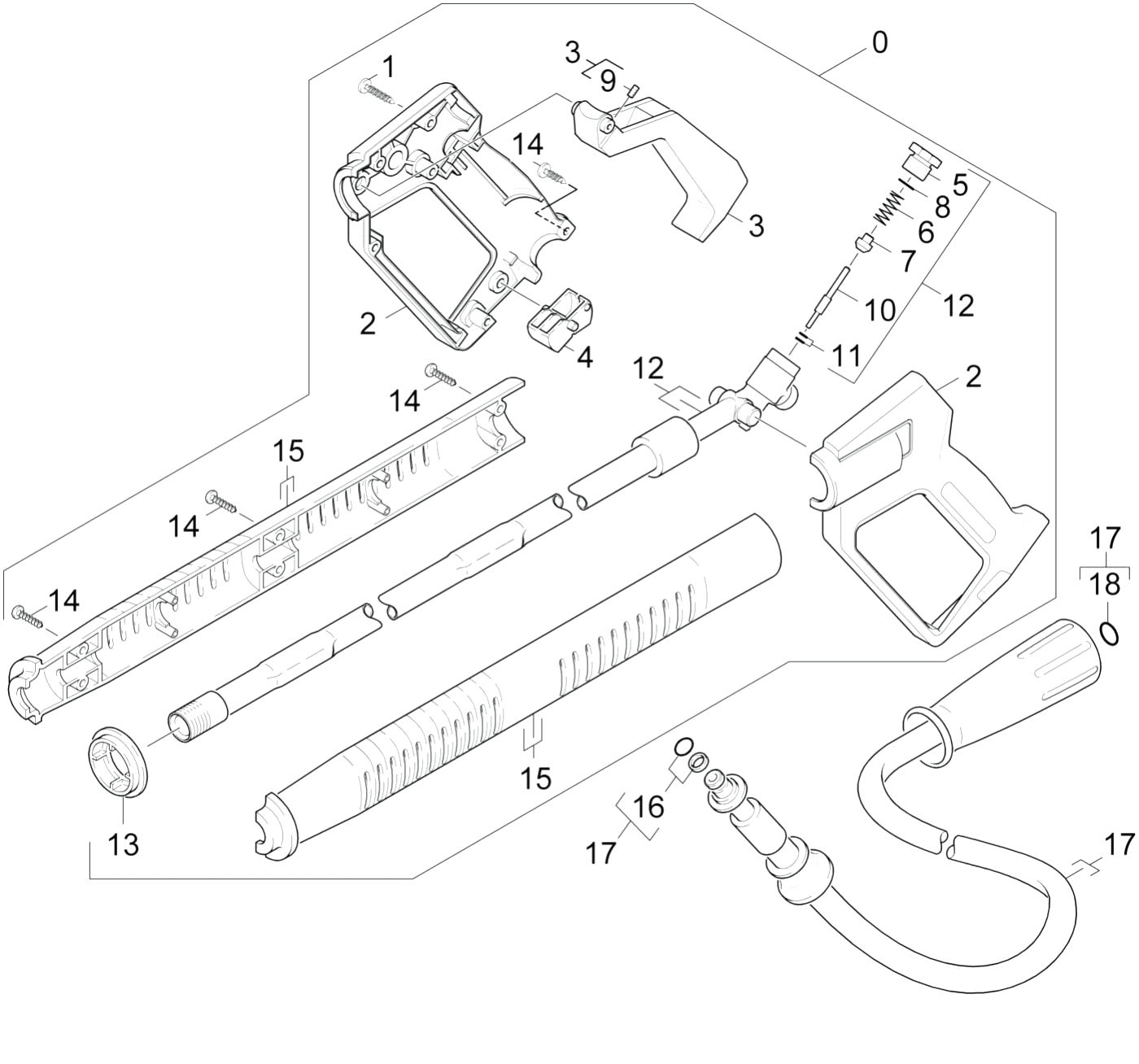

Karcher (Керхер) Pучной пистолет-распылитель (0.114-126.0)
Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85
| REF. |
АРТИКУЛ |
ОПИСАНИЕ |
ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
| 0 |
4.623-338.0 |
Motor complete |
|
| 0 |
4.623-521.0 |
Motor complete only for replacement |
|
| 1 |
7.303-096.0 |
Screw 4x22 -ST-10.9-R2R (IN6RD) |
|
| 1 |
7.306-090.0 |
Screw M6x16 -8.8-R3R (In6Rd) |
|
| 1 |
6.288-050.0 |
Engine oil 1L |
|
| 2 |
5.321-206.0 |
Handhold few |
|
| 2 |
5.064-127.0 |
Cover |
|
| 2 |
7.367-018.0 |
Radial shaft seal ring A26x37x7 -NBR DI |
|
| 3 |
4.481-050.0 |
Lever |
|
| 3 |
4.030-069.0 |
Moulded part complete only for replaceme |
|
| 3 |
5.093-226.0 |
Bearing plate A |
|
| 4 |
5.481-052.0 |
Lever |
|
| 4 |
6.362-169.0 |
O-Ring seal 12,0 X 2,0 |
|
| 4 |
6.303-320.0 |
Screw M 5x 20-St-R2R |
|
| 5 |
5.411-067.0 |
Screw plug |
|
| 5 |
4.580-325.0 |
Excess-current complete |
|
| 5 |
6.362-471.0 |
O-Ring seal 80,0 X 3,0 -NBR 70 |
|
| 6 |
7.401-155.0 |
Ball bearing 6304-WAELZLAGERST DIN 625 |
|
| 6 |
5.332-157.0 |
Helical spring |
|
| 6 |
6.362-852.0 |
O-Ring seal complete 3,69 |
|
| 7 |
6.401-289.0 |
Wobble plate |
|
| 7 |
5.582-058.0 |
Valve disc |
|
| 7 |
6.414-252.0 |
Strainer |
|
| 8 |
6.304-048.0 |
Cylinder head screw M6x19 |
|
| 8 |
6.362-584.0 |
O-Ring seal 12,42X 1,78 |
|
| 8 |
6.465-031.0 |
Connection 3/4 |
|
| 9 |
7.307-417.0 |
Threaded pin M8x16 -45H-A2E ISO 4026 |
|
| 9 |
6.362-078.0 |
O-Ring seal 13,3x2,4 |
|
| 10 |
5.107-259.0 |
Bar |
|
| 10 |
5.443-229.0 |
Hose stem |
|
| 11 |
6.362-571.0 |
O-Ring seal complete /1ST.-R |
|
| 11 |
5.310-065.0 |
Nut |
|
| 12 |
4.427-179.0 |
Manifold |
|
| 13 |
5.031-259.0 |
Moulded part |
|
| 14 |
6.303-025.0 |
Oval head screw 4,2x16-St-vz |
|
| 15 |
5.322-083.0 |
Handhold few extended Low End |
|
| 16 |
6.363-115.0 |
O-Ring seal complete 1ST.-R. |
|
| 17 |
6.389-853.0 |
Hose assembly standard DN6 25MPa 10m |
|
| 28 |
4.481-237.0 |
Valve seat complete only for replacement |
|
| 29 |
2.884-856.0 |
Spare part set excess-current |
|
| 30 |
7.306-023.0 |
Cylinder head screw M6x25 -8.8-A2E ISO4 |
|
| 32 |
2.884-551.0 |
Spare part set |
|
| 33 |
4.591-054.0 |
Set excess-current |
|
| 34 |
7.311-510.0 |
Hexagon nut M 8-8-A2E ISO 7040 |
|
| 35 |
6.362-480.0 |
O-Ring seal 12,42x 1,78 |
|
| 36 |
5.411-171.0 |
Screw plug |
|
| 37 |
4.580-594.0 |
Valve complete |
|
