Karcher (Керхер) Pучной пистолет-распылитель (0.113-686.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

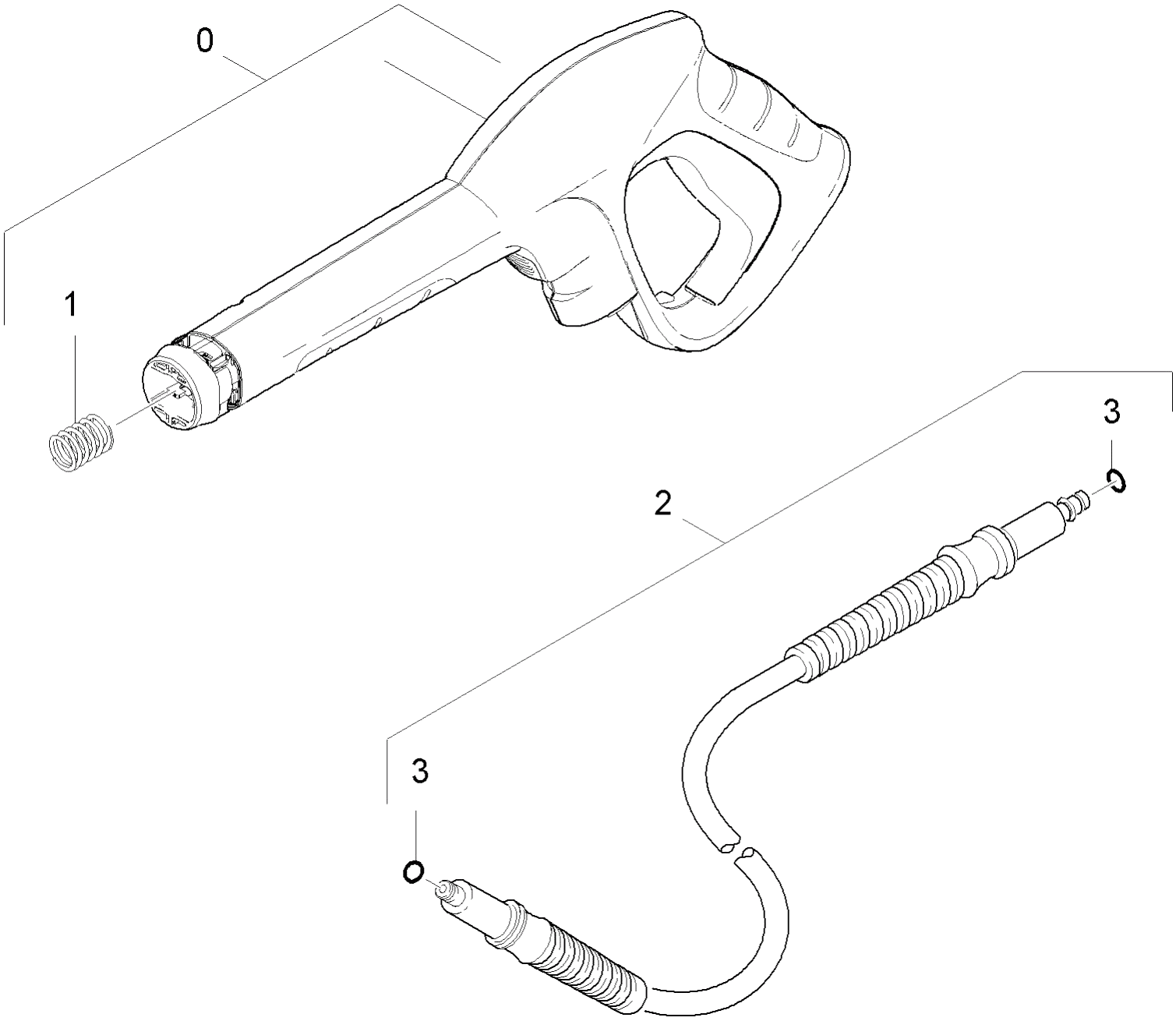

REF.	АРТИКУЛ	ОПИСАНИЕ
0	2.642-172.0	G 160 Q pistol Quick Connect
0	4.775-264.0	Pistol only for replacement 96
1	5.332-464.0	Pressure spring
1	5.321-512.0	Handhold few
1	4.470-041.0	High pressure quick-fitting pipe union A
2	2.641-721.0	H 9 Q high pressure hose Quick Connect
2	6.303-122.0	M4 .2X13 DIN 7981 TORX T15 PAN HD HI/LO
2	9.001-887.0	Connection K5
3	6.363-410.0	O-Ring seal 5,7x1,78 NBR 90Shore
3	5.481-189.0	Lever locking part
3	9.001-885.0	Connection
4	4.427-178.0	Manifold complete
4	5.731-598.0	Fine filter
5	9.086-173.0	Винт 4x22 Torx-d.7,5
6	7.362-502.0	O-Ring seal 2,8x1,6-NBR 70 DIN 3770
7	5.107-147.0	Bar
7	9.001-281.0	By-pass valve
8	5.582-058.0	Valve disc
9	5.332-157.0	Helical spring
10	6.362-479.0	O-Ring seal 7,59X 2,62
10	7.306-151.0	Cylinder head screw M8x65 -8.8-A2E ISO4
11	4.481-105.0	Lever complete
11	9.001-277.0	Spare parts set chemistry
12	5.314-082.0	Pin -BONEZZI 12.022.706
12	9.080-455.0	Поэзия 10x2,8
13	5.110-539.0	Sleeve
13	9.001-800.0	Spare part set control head
14	5.028-905.0	Tube pistol
14	9.081-424.0	Фасонное уплотнение
15	5.332-349.0	Pressure spring
15	9.001-274.0	Spare part set control head
16	6.362-498.0	O-Ring seal 6,75x1,78 NBR 70
16	9.001-110.0	Moulded part complete
17	6.389-555.0	High pressure hose 9/16MPa 60G MU=50,E
17	6.362-875.0	Grooved ring
18	9.037-059.0	Support ring
19	9.001-275.0	Valve set
20	9.001-276.0	Joining piece
