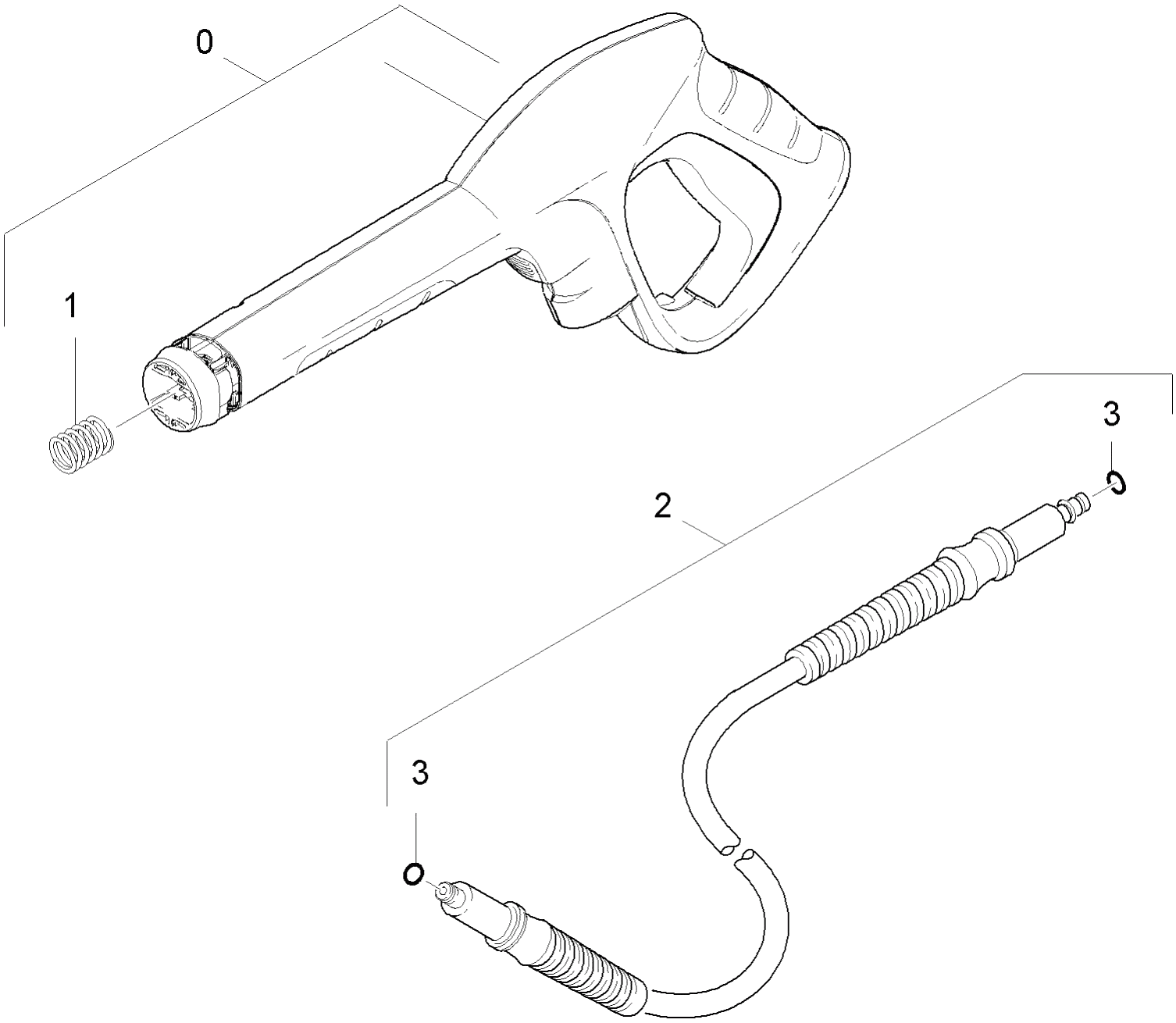

Karcher (Керхер) Pучной пистолет-распылитель (0.113-535.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

REF.	АРТИКУЛ	ОПИСАНИЕ
0	2.642-172.0	G 160 Q pistol Quick Connect
1	5.332-464.0	Pressure spring
1	9.037-693.0	Handhold switch
1	2.885-189.0	Spare parts set electric box
2	2.641-721.0	H 9 Q high pressure hose Quick Connect
2	6.391-869.0	Шланг высокого давления резина 16/7,5 60
2	6.390-426.0	Hose DN 5
2	6.649-740.0	Cable with plug *EU
3	6.363-410.0	O-Ring seal 5,7x1,78 NBR 90Shore
3	9.048-123.0	Вращающаяся ручка чёрный 2K
5	4.321-982.0	Handhold front rear
5	6.661-288.0	Capacitor 40 µF mit Kabel (K6/7)
6	6.303-150.0	Screw 4,2x 22
6	5.363-749.0	Seal control piston
7	9.037-622.0	Catch for cable
8	2.885-193.0	Spare parts set cover Top
9	9.037-619.0	Holder pistol bottom
10	2.885-282.0	Spare parts set hook hose
11	9.086-203.0	Винт 4x22
12	6.362-522.0	O-Ring seal 24,0 X 2,0
13	9.037-621.0	Handhold chemistry
14	6.363-018.0	O-Ring seal 4X2
16	9.037-618.0	Holder pistol above
