Karcher (Керхер) Pучной пистолет-распылитель (0.113-521.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

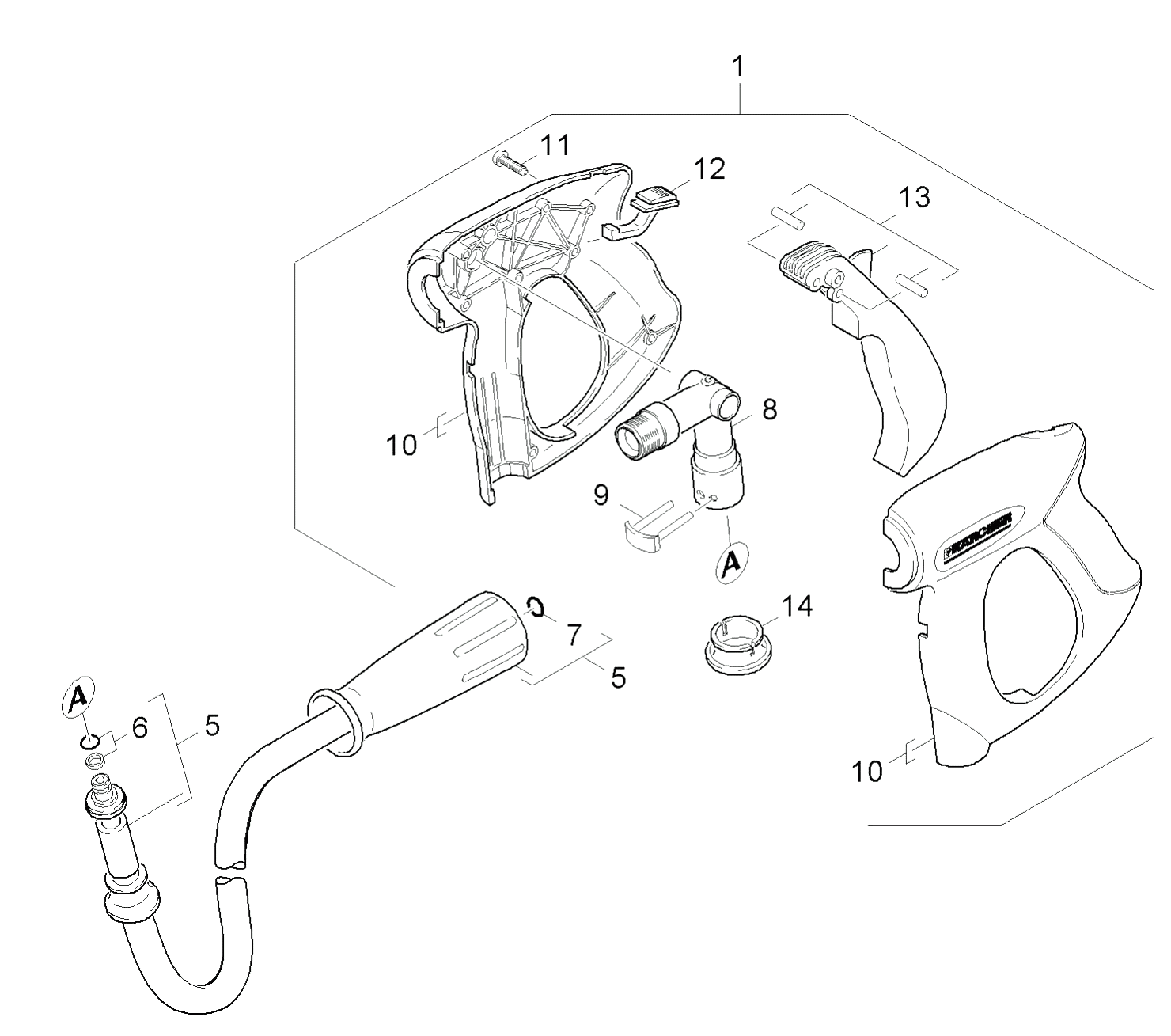

REF.	АРТИКУЛ	ОПИСАНИЕ
1	4.775-463.0	HAND TRIGGER GUN EASY PRESS
1	7.303-240.0	Screw M5x40-ST-A2E (IN6RD)
1	4.403-002.0	Coupler
2	4.622-025.0	Ignition transformer only for replacemen
3	6.278-018.0	Glass pane
4	6.343-165.0	Serrated ring
5	6.390-025.0	High pressure hose DN 8
5	7.311-101.0	Hexagon nut M10x1 -04-A2E ISO 8675
6	4.363-691.0	O-Ring seal kpl. -nur fuer Ersatz-
6	7.312-302.0	Spring washer B10-FST-A2E DIN 137
7	4.654-288.0	Cover pressure boiler only for replaceme
8	5.667-055.0	Nozzle holder
9	4.037-013.0	Hook
9	7.312-304.0	Spring washer B 5-FST-A2E DIN 137
10	5.321-669.0	Handhold few
10	7.306-217.0	Screw M5x14 -8.8-R2R (In6Rd)
11	7.303-096.0	Screw 4x22 -ST-10.9-R2R (IN6RD)
11	2.638-974.0	Conversion kit ignition electrode
12	5.481-331.0	Slider
13	6.415-775.0	Burner nozzle
14	5.110-596.0	Sleeve
14	7.303-038.0	Screw M5x12 -St-P2R (In6Rd)
15	6.389-262.0	Union nut A 4-LL
16	6.389-263.0	Cutting ring d.4
17	5.423-400.0	Conduit fuel
