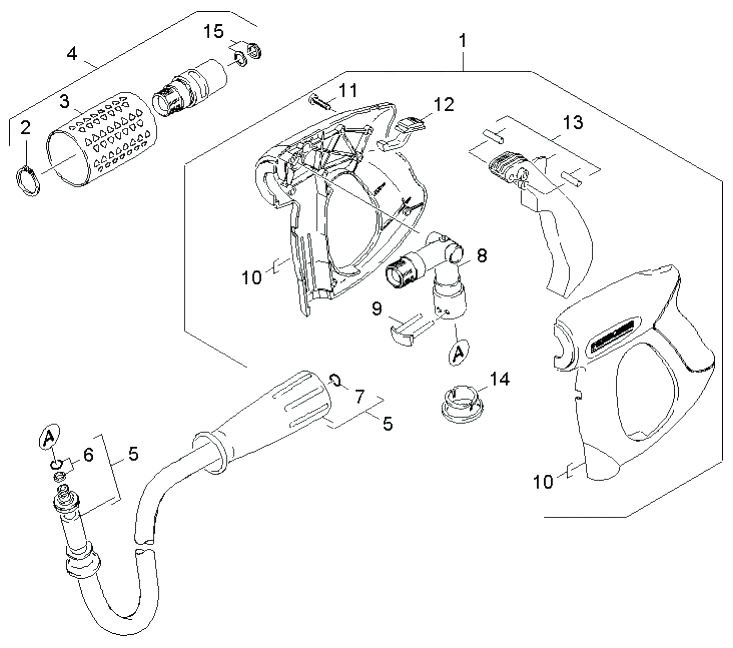

| REF. | АРТИКУЛ | ОПИСАНИЕ | ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
|---|---|---|---|
| 1 | 4.775-463.0 | HAND TRIGGER GUN EASY PRESS | |
| 1 | 4.403-002.0 | Coupler | |
| 1 | 4.067-048.0 | Device cover complete | |
| 2 | 7.343-069.0 | Locking ring 25x1,2-1.4122 DIN 471 | |
| 2 | 5.332-236.0 | Helical spring | |
| 3 | 5.321-668.0 | Handle | |
| 4 | 4.775-526.0 | Rotary controller 270 l | |
| 5 | 6.390-025.0 | High pressure hose DN 8 | |
| 6 | 4.363-691.0 | O-Ring seal kpl. -nur fuer Ersatz- | |
| 9 | 4.037-013.0 | Hook | |
| 10 | 5.321-669.0 | Handhold few | |
| 11 | 7.303-096.0 | Screw 4x22 -ST-10.9-R2R (IN6RD) | |
| 12 | 5.481-331.0 | Slider | |
| 14 | 5.110-596.0 | Sleeve | |
| 15 | 4.363-695.0 | Grooved ring only for replacement | |
| 18 | 6.362-458.0 | O-Ring seal 11,0x2,0-NBR 70 | |
| 20 | 2.884-916.0 | Valve (3 St?ck) | |
| 21 | 6.363-536.0 | O-Ring seal 21x1,5 | |
| 22 | 5.427-438.0 | Manifold water intake | |
| 23 | 7.306-105.0 | Screw M6x30 -8.8-R3R (In6Rd) | |
| 24 | 5.110-815.0 | Sleeve | |
| 25 | 6.362-381.0 | O-Ring seal 13x2 - NBR 70 | |
| 26 | 4.580-581.0 | Valve complete | |
| 27 | 6.362-427.0 | O-Ring seal 15,0x2,0 | |
| 28 | 4.580-594.0 | Valve complete | |
| 29 | 4.440-895.0 | Hose SDS | |
| 30 | 6.362-853.0 | O-Ring seal 4,47x1,78 | |
| 31 | 5.402-705.0 | Joining piece | |
| 32 | 4.553-197.0 | Piston complete only for replacement | |
| 33 | 6.363-037.0 | O-Ring seal complete 1ST.-R. | |
| 34 | 5.115-796.0 | Washer | |
| 35 | 5.332-268.0 | Helical spring | |
| 36 | 5.411-148.0 | Screw plug | |
| 37 | 5.367-030.0 | Diaphragm | |
| 38 | 5.034-494.0 | Retaining bracket | |
| 39 | 4.744-225.0 | Switch complete | |
| 40 | 4.744-224.0 | Switch complete | |
| 41 | 5.003-062.0 | Plate | |
| 42 | 6.362-533.0 | O-Ring seal 14,0 X 1,5-NBR 70 |
