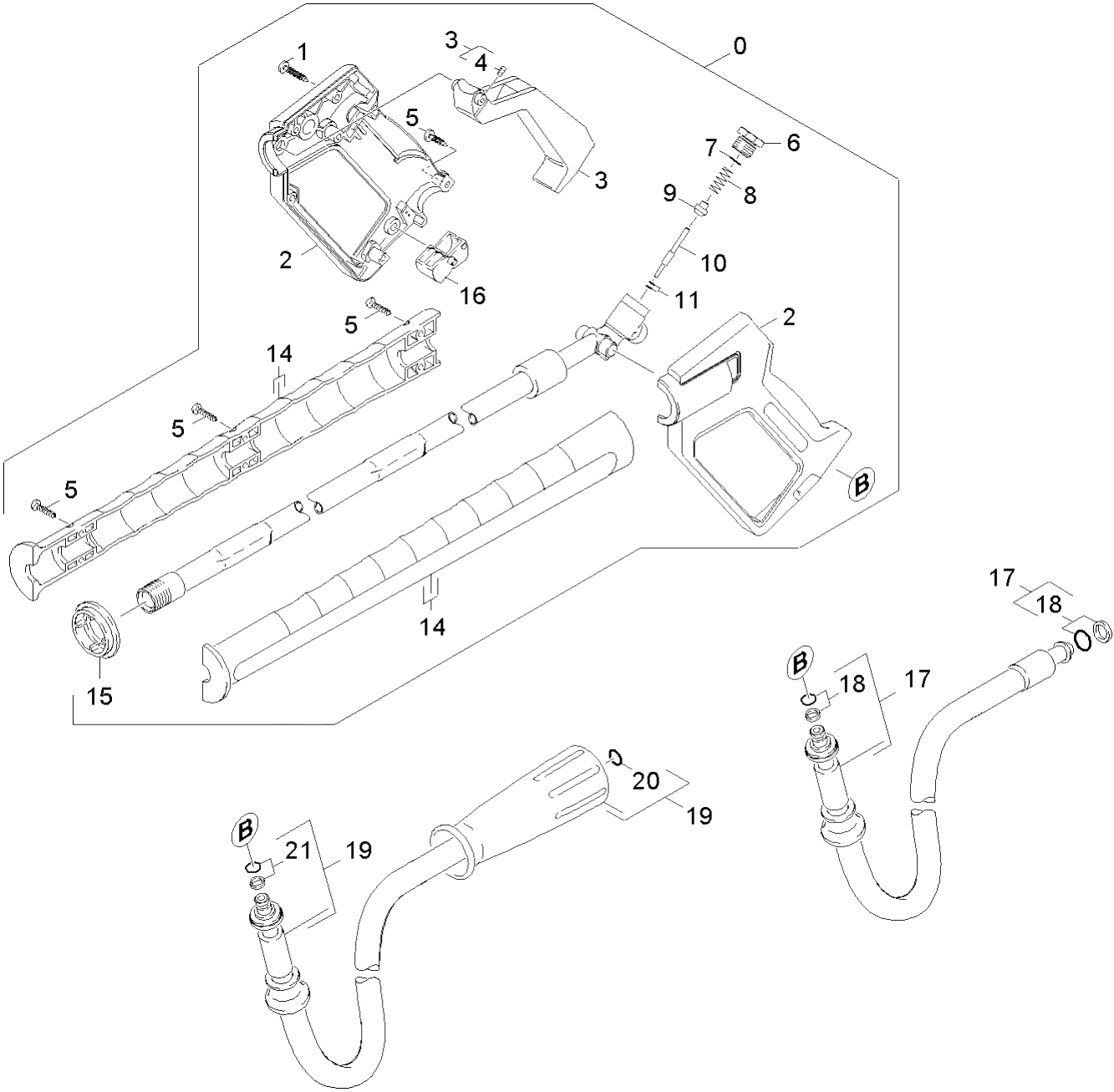

| REF. | АРТИКУЛ | ОПИСАНИЕ | ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
|---|---|---|---|
| 1 | 7.303-096.0 | Screw 4x22 -ST-10.9-R2R (IN6RD) | |
| 1 | 4.403-002.0 | Coupler | |
| 2 | 5.321-206.0 | Handhold few | |
| 3 | 4.481-050.0 | Lever | |
| 4 | 7.307-417.0 | Threaded pin M8x16 -45H-A2E ISO 4026 | |
| 5 | 7.303-129.0 | Screw 4x16 -10.9-R2R (K-In6Rd) | |
| 6 | 5.411-067.0 | Screw plug | |
| 7 | 6.362-584.0 | O-Ring seal 12,42X 1,78 | |
| 8 | 5.332-157.0 | Helical spring | |
| 9 | 5.582-058.0 | Valve disc | |
| 10 | 5.107-259.0 | Bar | |
| 11 | 4.880-069.0 | Spare part O-ring kit | |
| 14 | 5.322-083.0 | Handhold few extended Low End | |
| 15 | 5.031-259.0 | Moulded part | |
| 16 | 5.481-052.0 | Lever | |
| 17 | 6.391-417.0 | Hose assembly standard DN6 25MPa 15m | |
| 18 | 4.363-691.0 | O-Ring seal kpl. -nur fuer Ersatz- | |
| 19 | 6.391-238.0 | High pressure hose DN6-10m |
