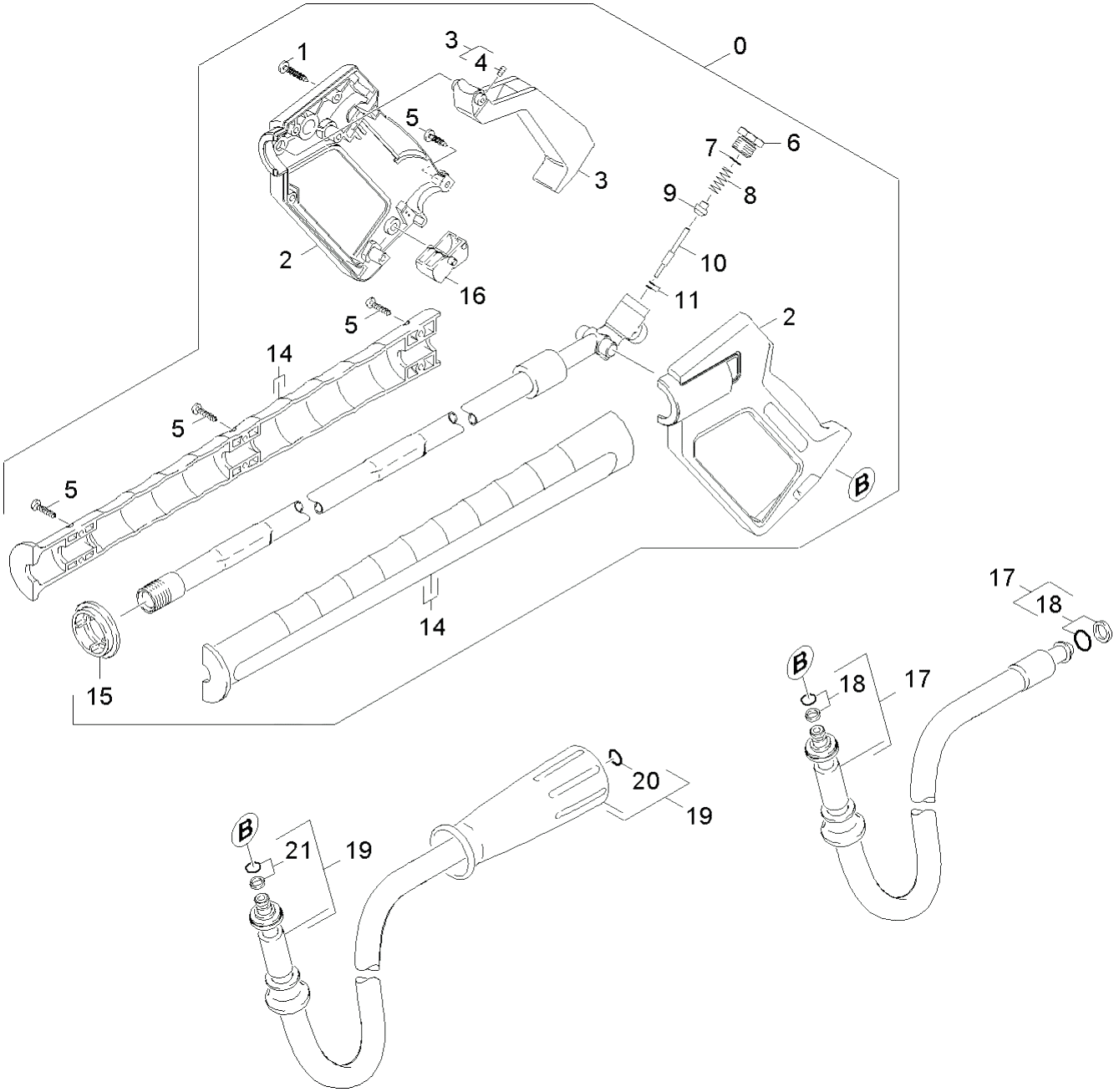

Karcher (Керхер) Pучной пистолет-распылитель (0.110-123.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

REF.	АРТИКУЛ	ОПИСАНИЕ
1	7.303-096.0	Screw 4x22 -ST-10.9-R2R (IN6RD)
2	5.321-206.0	Handhold few
3	4.481-050.0	Lever
4	7.307-417.0	Threaded pin M8x16 -45H-A2E ISO 4026
5	7.303-129.0	Screw 4x16 -10.9-R2R (K-In6Rd)
6	5.411-067.0	Screw plug
7	6.362-584.0	O-Ring seal 12,42X 1,78
8	5.332-157.0	Helical spring
9	5.582-058.0	Valve disc
10	5.107-259.0	Bar
11	4.880-069.0	Spare part O-ring kit
12	4.030-125.0	Joining piece only for replacement
13	4.769-034.0	Nozzle insert only for replacement
14	6.362-384.0	O-Ring seal 9x1,5 - NBR 70
14	5.322-083.0	Handhold few extended Low End
15	4.584-022.0	Valve pin complete
15	5.031-259.0	Moulded part
16	6.362-851.0	O-Ring seal 4 x 2 NBR 90
16	5.481-052.0	Lever
17	5.003-062.0	Plate
17	6.391-417.0	Hose assembly standard DN6 25MPa 15m
18	7.304-098.0	Hexagonal head screw M8x80-8.8-A2E ISO
18	4.363-691.0	O-Ring seal kpl. -nur fuer Ersatz-
19	5.550-304.0	Cylinder head
19	6.391-238.0	High pressure hose DN6-10m
20	6.388-216.0	Hose DN 5
21	4.862-032.0	Filter chemistry regulation
