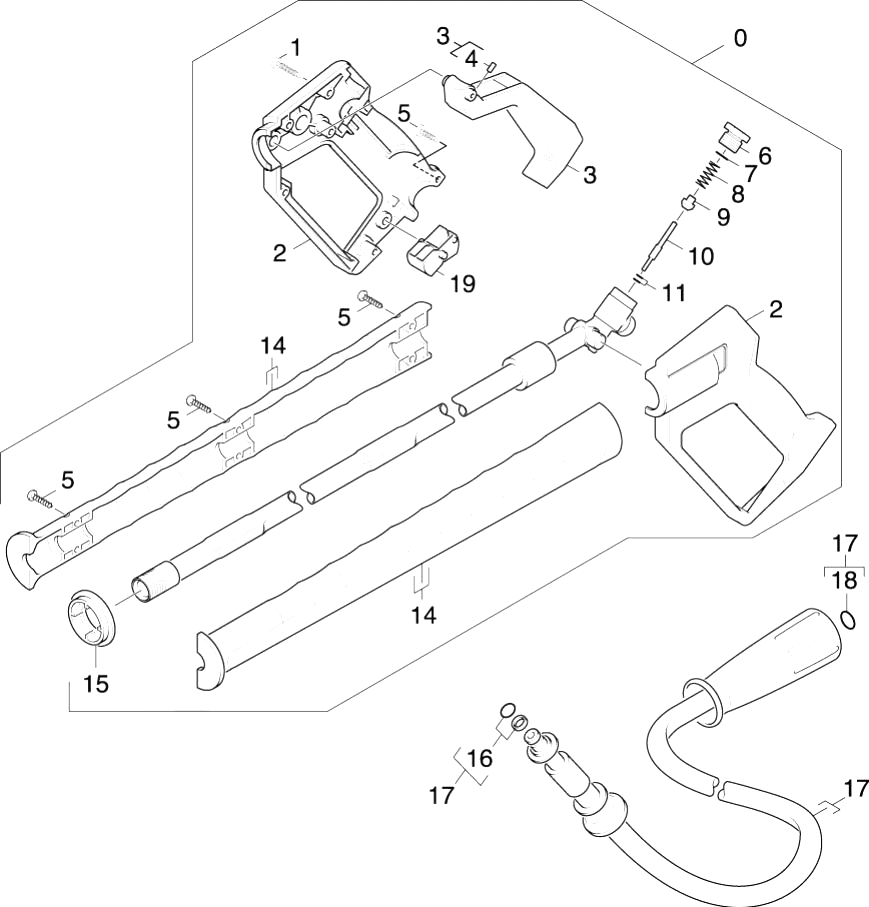

| REF. | АРТИКУЛ | ОПИСАНИЕ | ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
|---|---|---|---|
| 1 | 7.303-096.0 | Screw 4x22 -ST-10.9-R2R (IN6RD) | |
| 2 | 5.321-206.0 | Handhold few | |
| 3 | 4.481-050.0 | Lever | |
| 4 | 7.307-417.0 | Threaded pin M8x16 -45H-A2E ISO 4026 | |
| 5 | 7.303-129.0 | Screw 4x16 -10.9-R2R (K-In6Rd) | |
| 6 | 5.411-067.0 | Screw plug | |
| 7 | 6.362-584.0 | O-Ring seal 12,42X 1,78 | |
| 8 | 5.332-157.0 | Helical spring | |
| 9 | 5.582-058.0 | Valve disc | |
| 10 | 5.107-259.0 | Bar | |
| 11 | 4.132-007.0 | Drain plug only for replacement | |
| 11 | 6.362-571.0 | O-Ring seal complete /1ST.-R | |
| 12 | 5.003-062.0 | Plate | |
| 13 | 5.443-624.0 | Nipple | |
| 14 | 6.362-113.0 | O-Ring seal 6,0 x 2,0 NBR 70 | |
| 14 | 5.322-083.0 | Handhold few extended Low End | |
| 15 | 7.401-908.0 | Sphere 7 G300 -1.4301 DIN 5401 | |
| 15 | 5.031-259.0 | Moulded part | |
| 16 | 6.362-175.0 | O-Ring seal 5,28x 1,78 | |
| 17 | 5.332-258.0 | Helical spring | |
| 19 | 6.362-851.0 | O-Ring seal 4 x 2 NBR 90 | |
| 20 | 5.584-091.0 | Valve pin check valve | |
| 21 | 4.769-034.0 | Nozzle insert only for replacement | |
| 24 | 4.591-038.0 | Overflow valve | |
| 27 | 5.110-630.0 | Sleeve |
