Karcher (Керхер) Pучной пистолет-распылитель (0.109-699.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

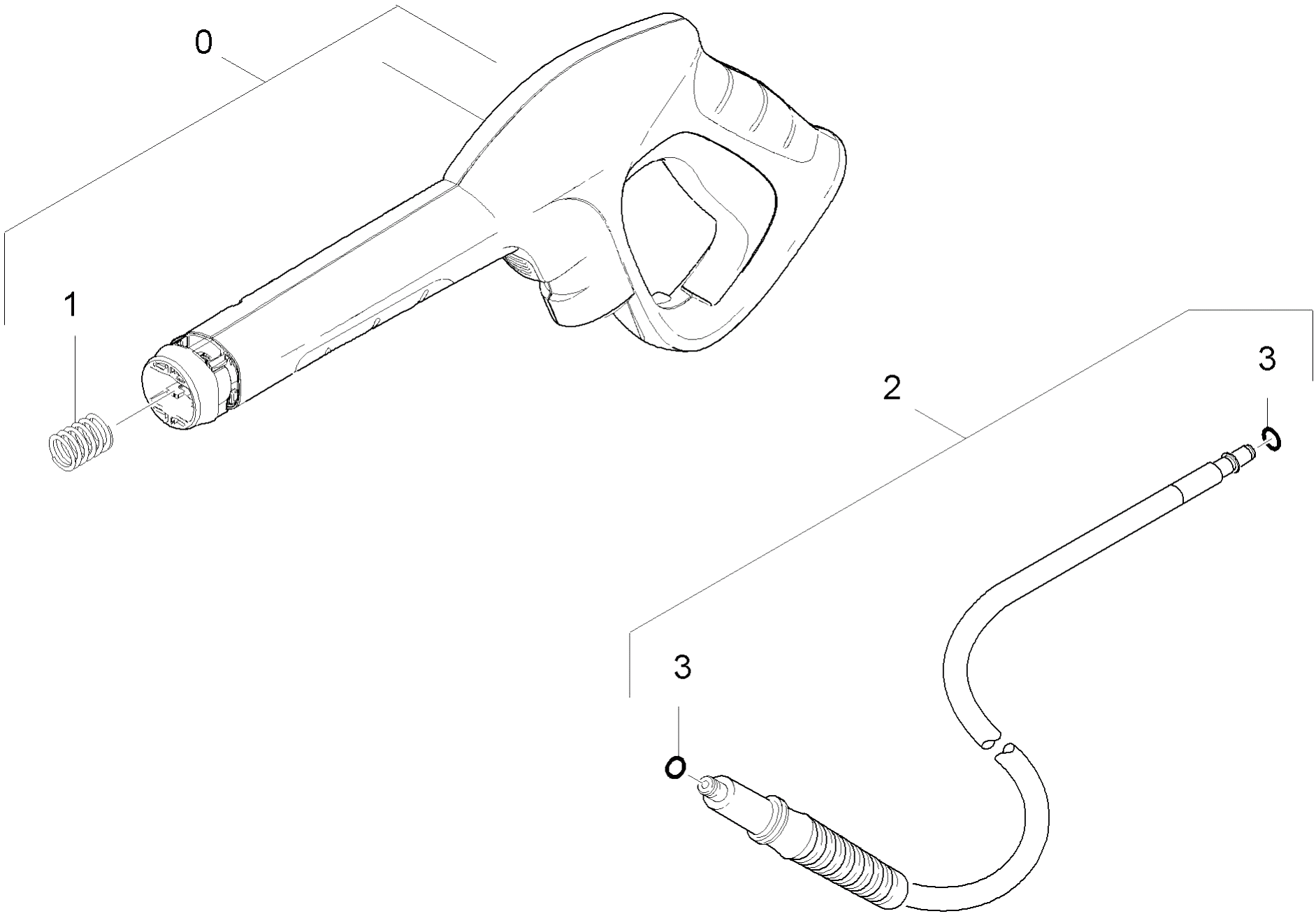

REF.	АРТИКУЛ	ОПИСАНИЕ
0	2.642-172.0	G 160 Q pistol Quick Connect
1	5.332-464.0	Pressure spring
2	9.039-148.0	Metal fork
2	6.391-794.0	High pressure hose 16MPa/9m 60°C
3	7.306-151.0	Cylinder head screw M8x65 -8.8-A2E ISO4
3	6.363-410.0	O-Ring seal 5,7x1,78 NBR 90Shore
4	9.081-420.0	Кольцо круглого сечения d.17,86x2,62
5	9.039-308.0	Крышка K130
7	9.001-741.0	FRONT HOUSING MODULAR COMPACT
8	9.001-361.0	Spare parts set control head
9	9.036-801.0	Connection suction side black
10	9.081-422.0	Фасонное уплотнение
11	9.001-215.0	Spare part set cylinder head
12	6.388-216.0	Hose DN 5
13	6.362-875.0	Grooved ring
14	9.001-110.0	Moulded part complete
15	9.001-149.0	Spare parts set valve
16	9.001-106.0	Joining piece
17	9.001-107.0	Cage complete
18	9.047-026.0	Пружина
19	9.001-108.0	Injector complete
20	9.001-664.0	Spare parts set suction connection SV5.5
21	6.465-031.0	Connection 3/4
