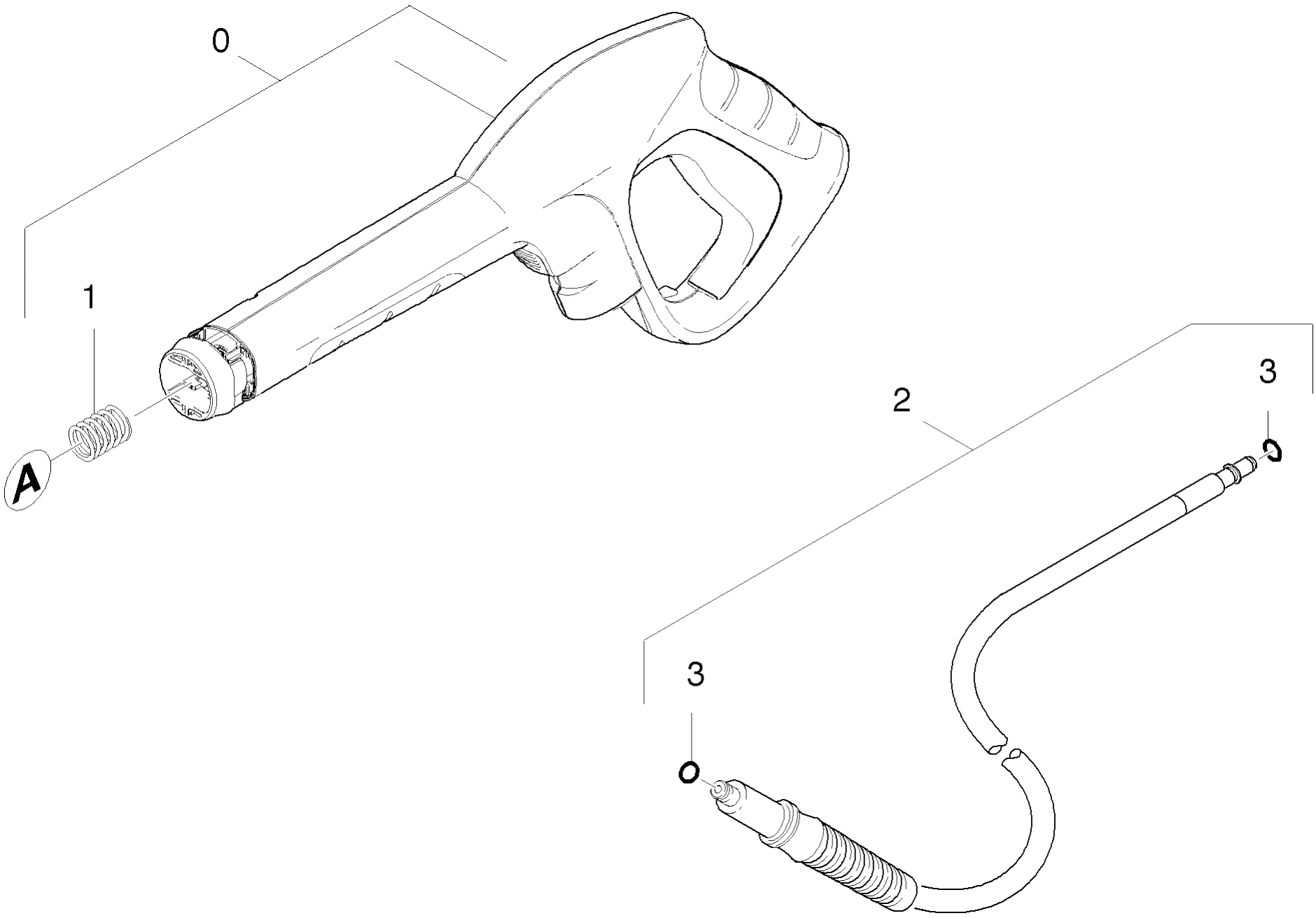

Karcher (Керхер) Pучной пистолет-распылитель (0.109-328.0)
Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85
| REF. |
АРТИКУЛ |
ОПИСАНИЕ |
ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
| 0 |
2.642-172.0 |
G 160 Q pistol Quick Connect |
|
| 1 |
5.332-464.0 |
Pressure spring |
|
| 1 |
2.885-189.0 |
Spare parts set electric box |
|
| 1 |
2.885-186.0 |
Spare parts set excess-current |
|
| 2 |
6.391-796.0 |
Шланг высокого давления 12/16MPa,60G |
|
| 2 |
6.391-797.0 |
High pressure hose strip yellow 16/12 60 |
|
| 2 |
6.391-795.0 |
High pressure hose 16MPa/12m 60°C |
|
| 2 |
6.649-740.0 |
Cable with plug *EU |
|
| 2 |
6.362-381.0 |
O-Ring seal 13x2 - NBR 70 |
|
| 3 |
6.363-410.0 |
O-Ring seal 5,7x1,78 NBR 90Shore |
|
| 3 |
6.362-958.0 |
O-Ring seal 9 x 2-NBR 90 |
|
| 4 |
6.362-101.0 |
O-Ring seal 8 X 2 |
|
| 5 |
6.661-288.0 |
Capacitor 40 µF mit Kabel (K6/7) |
|
| 5 |
6.362-486.0 |
O-Ring seal 4,7 X 1,9 -NBR 70 |
|
| 6 |
5.363-749.0 |
Seal control piston |
|
| 6 |
5.314-150.0 |
Pin |
|
| 7 |
5.062-149.0 |
Housing |
|
| 8 |
6.362-204.0 |
O-Ring seal 60,0 X 2,0-NBR 70 |
|
| 10 |
4.550-942.0 |
Cylinder head complete K7 |
|
| 11 |
6.363-435.0 |
Grooved ring 12x17x4,25/2,5 |
|
| 12 |
5.731-620.0 |
Fine filter |
|
| 13 |
5.443-602.0 |
Tube water intake |
|
| 14 |
6.363-018.0 |
O-Ring seal 4X2 |
|
| 14 |
6.363-038.0 |
Кольцо круглого сечения 13 х 3 NBR 70 |
|
| 15 |
5.048-915.0 |
Clamp |
|
| 16 |
9.037-618.0 |
Holder pistol above |
|
| 16 |
6.362-851.0 |
O-Ring seal 4 x 2 NBR 90 |
|
| 17 |
4.584-022.0 |
Valve pin complete |
|
| 18 |
6.362-384.0 |
O-Ring seal 9x1,5 - NBR 70 |
|
| 19 |
4.769-034.0 |
Nozzle insert only for replacement |
|
| 21 |
7.306-268.0 |
Винт M6x70 -8.8-R3R (In6Rd) |
|
| 22 |
4.580-702.0 |
Plug complete |
|
| 24 |
6.465-031.0 |
Connection 3/4 |
|
| 25 |
6.362-562.0 |
O-Ring seal 21,95X 1,78-NBR 90 |
|
| 27 |
6.362-427.0 |
O-Ring seal 15,0x2,0 |
|
