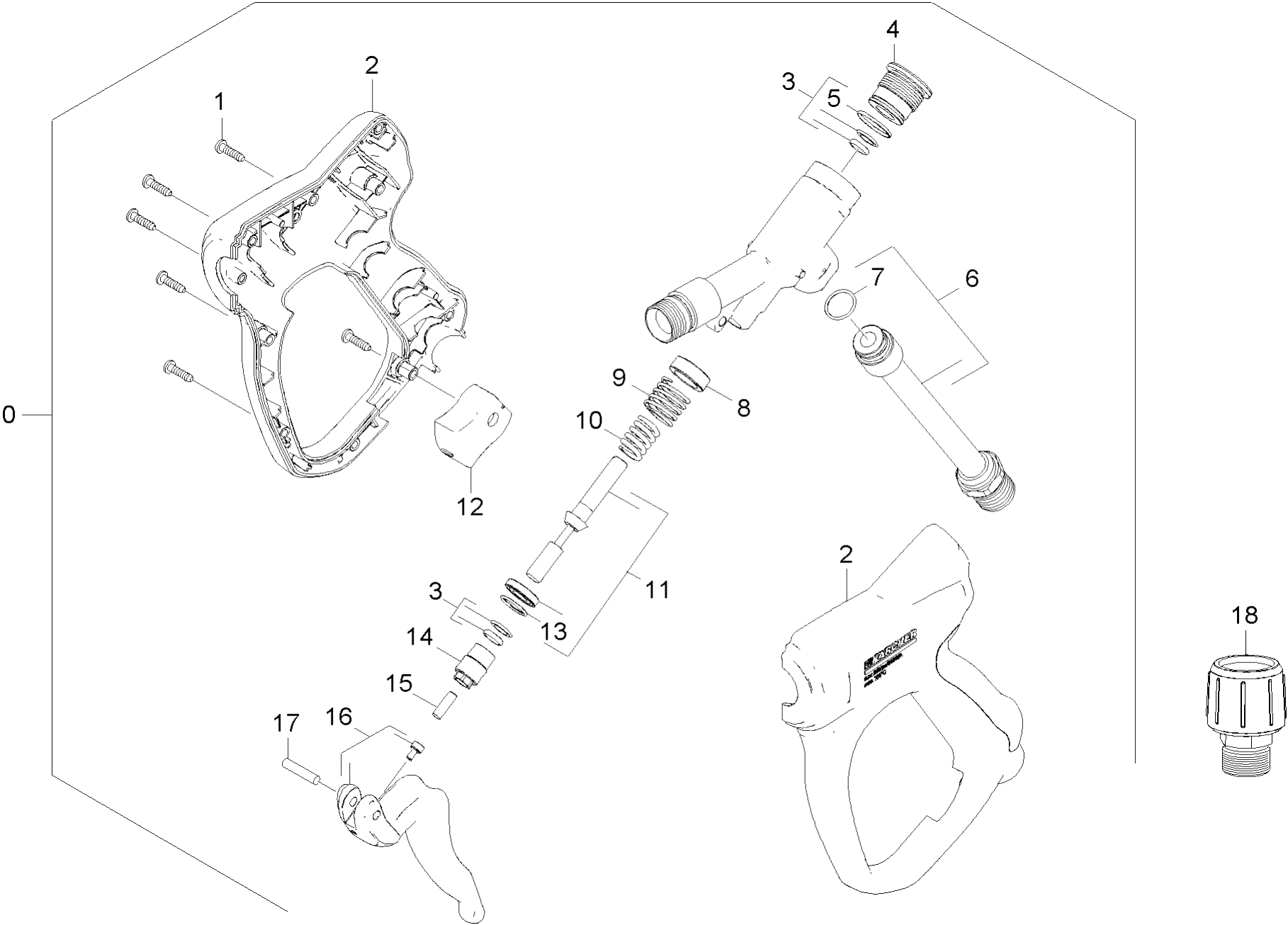

Karcher (Керхер) Pучной пистолет-распылитель (0.109-251.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

REF.	АРТИКУЛ	ОПИСАНИЕ
1	7.303-129.0	Screw 4x16 -10.9-R2R (K-In6Rd)
2	5.321-936.0	Захватная пара 30 Mpa 2500 l/h
3	7.311-421.0	Hexagon nut M 5-04-A2E ISO 10511
3	2.885-135.0	Spare part set seal
4	5.411-522.0	Screw plug
5	7.306-217.0	Screw M5x14 -8.8-R2R (In6Rd)
5	6.362-397.0	O-Ring seal 18,0 X 1,5-NBR 70
6	5.034-882.0	Retaining bracket
6	2.885-138.0	Spare part set adapter
7	7.306-044.0	Cylinder head screw M8x35 -8.8-A2E ISO4
7	6.363-069.0	O-Ring d. 15x1,5 NBR 90
8	5.034-933.0	Ведущая дуга
8	5.111-171.0	Sleeve
9	5.332-989.0	Helical spring
10	5.332-977.0	Spring
11	7.311-427.0	Hexagon nut M8 -04-A2E ISO 10511
11	2.885-134.0	Spare part set piston
12	7.303-112.0	Screw 6x20 -10.9-R2R (In6Rd)
12	5.424-145.0	Trigger safety latch yellow
13	6.362-533.0	O-Ring seal 14,0 X 1,5-NBR 70
14	5.401-315.0	Screw connector
15	5.317-309.0	Pin
16	2.885-136.0	Spare part set lever yellow
17	7.314-042.0	Straight pin 5m6x26 - A1 ISO 2338
18	4.401-091.0	Rotating coupler
20	6.343-137.0	Quick-fastener
21	6.435-310.0	Колесо D300
21	6.435-824.0	Wheel D 290 PU
22	5.110-378.0	Sleeve
23	5.050-913.0	Sheet metal component accessory shed
24	7.303-046.0	Screw M6x12 -St-R3R (In6Rd)
25	6.339-100.0	Rubber buffer
27	6.368-429.0	Cap
27	6.368-428.0	Cap
28	7.312-002.0	Washer 5-200HV-A3E ISO 7090
29	7.312-289.0	Washer 8 -A2 ISO 7093-1
