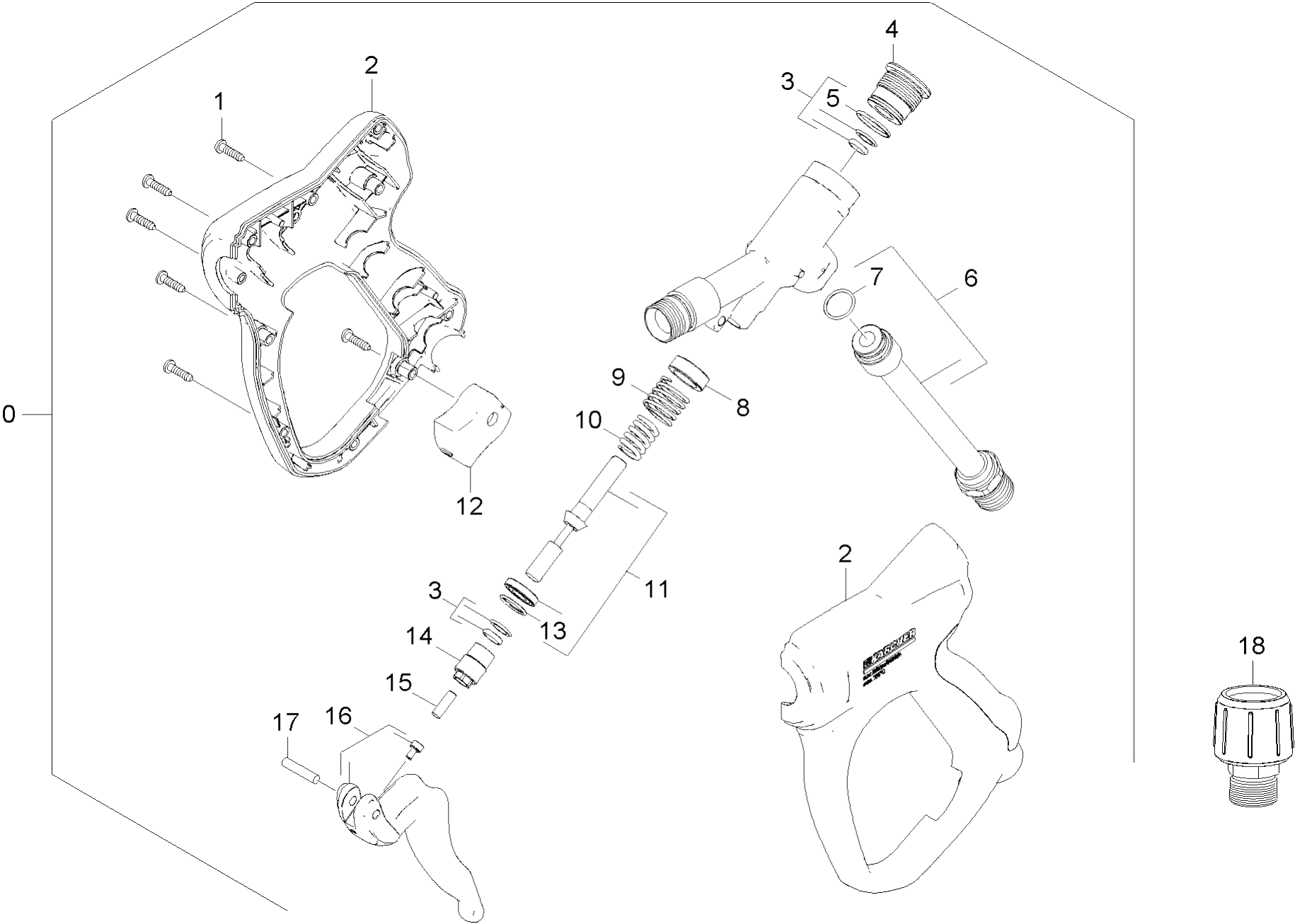

Karcher (Керхер) Pучной пистолет-распылитель (0.109-109.0)
Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85
| REF. |
АРТИКУЛ |
ОПИСАНИЕ |
ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
| 0 |
4.775-823.0 |
Hand trigger gun only for replacement |
|
| 1 |
7.303-129.0 |
Screw 4x16 -10.9-R2R (K-In6Rd) |
|
| 1 |
4.775-463.0 |
HAND TRIGGER GUN EASY PRESS |
|
| 1 |
7.306-105.0 |
Screw M6x30 -8.8-R3R (In6Rd) |
|
| 1 |
5.388-512.0 |
Label |
|
| 2 |
5.321-936.0 |
Захватная пара 30 Mpa 2500 l/h |
|
| 2 |
5.322-045.0 |
Handhold few 30MPa 2500l/h |
|
| 2 |
7.303-096.0 |
Screw 4x22 -ST-10.9-R2R (IN6RD) |
|
| 2 |
6.414-252.0 |
Strainer |
|
| 2 |
4.063-810.0 |
Крышка в комплекте |
|
| 3 |
2.885-135.0 |
Spare part set seal |
|
| 3 |
2.885-211.0 |
Spare part set seal 30MPa |
|
| 3 |
5.064-150.0 |
Suction cover |
|
| 3 |
5.481-331.0 |
Slider |
|
| 3 |
5.365-181.0 |
Profile gasket |
|
| 4 |
5.411-522.0 |
Screw plug |
|
| 4 |
5.411-528.0 |
Screw plug 30MPa |
|
| 4 |
2.884-916.0 |
Valve (3 St?ck) |
|
| 4 |
5.064-242.0 |
Housing with bore |
|
| 5 |
6.362-397.0 |
O-Ring seal 18,0 X 1,5-NBR 70 |
|
| 5 |
5.321-669.0 |
Handhold few |
|
| 5 |
7.303-108.0 |
Screw 5x20 -10.9-R2R (In6Rd) |
|
| 5 |
6.661-274.0 |
Capacitor 100 µF |
|
| 5 |
6.661-254.0 |
Capacitor 80 µF |
|
| 6 |
2.885-138.0 |
Spare part set adapter |
|
| 6 |
2.885-213.0 |
Spare part set adapter 30MPa |
|
| 6 |
5.402-727.0 |
Suction nipple |
|
| 6 |
6.650-270.0 |
Кабель с штепсель GFCI |
|
| 6 |
6.649-467.0 |
Cable without plug |
|
| 7 |
6.363-069.0 |
O-Ring d. 15x1,5 NBR 90 |
|
| 7 |
4.037-013.0 |
Hook |
|
| 7 |
6.362-481.0 |
O-Ring seal 14,0 x 2,0 NBR 80 |
|
| 8 |
5.111-171.0 |
Sleeve |
|
| 8 |
5.064-230.0 |
Suction cover |
|
| 8 |
5.110-596.0 |
Sleeve |
|
| 9 |
5.332-989.0 |
Helical spring |
|
| 9 |
5.332-046.0 |
Helical spring |
|
| 9 |
5.550-324.0 |
Cylinder head |
|
| 10 |
5.332-977.0 |
Spring |
|
| 10 |
6.391-654.0 |
Hose assembly standard hygiene 15m DN6 2 |
|
| 10 |
2.884-501.0 |
Spare part set control piston |
|
| 10 |
6.390-025.0 |
High pressure hose DN 8 |
|
| 11 |
2.885-134.0 |
Spare part set piston |
|
| 11 |
2.885-210.0 |
Spare part set piston 30MPa |
|
| 11 |
4.132-007.0 |
Drain plug only for replacement |
|
| 11 |
4.363-691.0 |
O-Ring seal kpl. -nur fuer Ersatz- |
|
| 12 |
5.424-145.0 |
Trigger safety latch yellow |
|
| 12 |
5.003-062.0 |
Plate |
|
| 13 |
6.362-533.0 |
O-Ring seal 14,0 X 1,5-NBR 70 |
|
| 13 |
5.443-624.0 |
Nipple |
|
| 14 |
5.401-315.0 |
Screw connector |
|
| 14 |
5.401-329.0 |
Screw connector 30MPa |
|
| 14 |
6.362-113.0 |
O-Ring seal 6,0 x 2,0 NBR 70 |
|
| 15 |
5.317-309.0 |
Pin |
|
| 15 |
5.317-403.0 |
Pin |
|
| 15 |
7.401-908.0 |
Sphere 7 G300 -1.4301 DIN 5401 |
|
| 16 |
2.885-136.0 |
Spare part set lever yellow |
|
| 16 |
2.885-212.0 |
Spare part set lever yellow |
|
| 16 |
6.362-175.0 |
O-Ring seal 5,28x 1,78 |
|
| 17 |
7.314-042.0 |
Straight pin 5m6x26 - A1 ISO 2338 |
|
| 17 |
5.332-258.0 |
Helical spring |
|
| 18 |
4.401-091.0 |
Rotating coupler |
|
| 18 |
5.114-571.0 |
Supportring 30MPa |
|
| 18 |
6.362-384.0 |
O-Ring seal 9x1,5 - NBR 70 |
|
| 19 |
6.362-174.0 |
O-Ring seal 16,0 X 2,0-NBR 70 |
|
| 19 |
6.362-851.0 |
O-Ring seal 4 x 2 NBR 90 |
|
| 20 |
5.363-767.0 |
Sealing insert 30MPa |
|
| 20 |
5.584-091.0 |
Valve pin check valve |
|
| 21 |
4.769-034.0 |
Nozzle insert only for replacement |
|
| 22 |
7.306-129.0 |
Screw M6x40 -8.8-R3R (In6Rd) |
|
| 23 |
6.362-533.0 |
O-Ring seal 14,0 X 1,5-NBR 70 |
|
| 24 |
4.591-038.0 |
Overflow valve |
|
| 25 |
5.365-284.0 |
Profile gasket |
|
| 27 |
5.110-630.0 |
Sleeve |
|
| 28 |
7.314-629.0 |
Grooved pin 2x10 -A1 ISO 8742 |
|
| 29 |
5.583-147.0 |
Valve screw |
|
| 30 |
6.362-468.0 |
O-Ring seal complete 1ST.-R. |
|
| 31 |
4.291-014.0 |
Spindle complete |
|
| 32 |
5.321-307.0 |
Handhold |
|
| 33 |
4.744-193.0 |
Switch complete |
|
| 33 |
4.744-242.0 |
Switch kpl. -nur f?r Ersatz- |
|
| 34 |
5.034-494.0 |
Retaining bracket |
|
| 35 |
4.401-059.0 |
Screw connector part |
|
| 36 |
5.364-129.0 |
Flat gasket |
|
| 38 |
6.421-320.0 |
Pressure gauge 0-15 MPa |
|
| 38 |
6.421-274.0 |
Pressure gauge |
|
| 39 |
4.401-070.0 |
Screw connector part neutrally * AUS |
|
