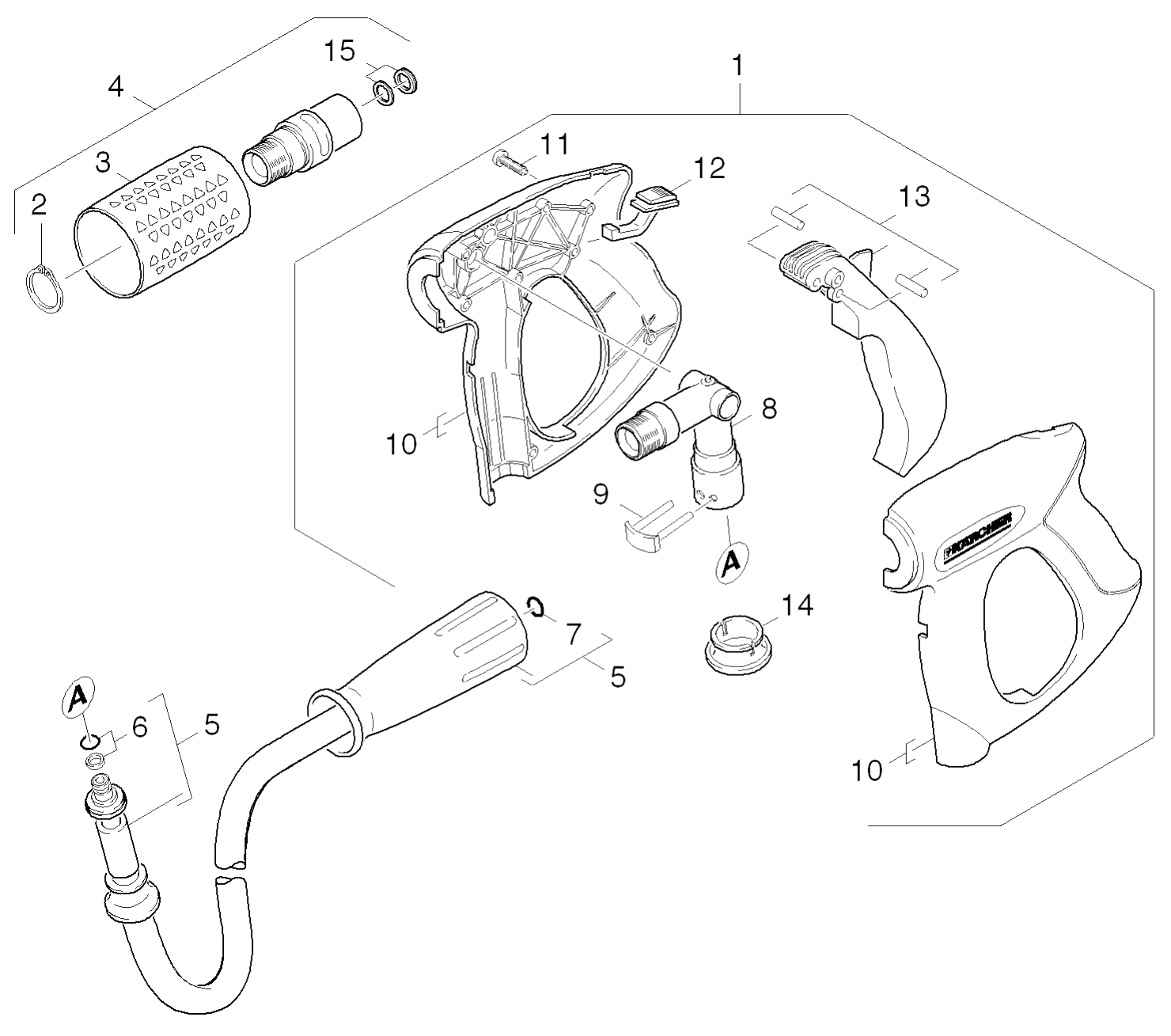

Karcher (Керхер) Pучной пистолет-распылитель (0.105-771.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

REF.	АРТИКУЛ	ОПИСАНИЕ
1	4.775-463.0	HAND TRIGGER GUN EASY PRESS
2	7.343-069.0	Locking ring 25x1,2-1.4122 DIN 471
3	5.321-668.0	Handle
4	4.775-471.0	Rotary controller 700L
5	6.391-351.0	Hose assembly only for replacement DN8 4
6	4.363-691.0	O-Ring seal kpl. -nur fuer Ersatz-
9	4.037-013.0	Hook
10	5.321-669.0	Handhold few
11	7.303-096.0	Screw 4x22 -ST-10.9-R2R (IN6RD)
12	5.481-331.0	Slider
14	5.110-596.0	Sleeve
15	4.363-695.0	Grooved ring only for replacement
21	6.363-003.0	O-Ring seal 13,0 X 2,0-NBR 90
22	4.550-887.0	Cylinder head complete
23	6.363-536.0	O-Ring seal 21x1,5
24	5.427-418.0	Manifold water intake
25	7.306-043.0	Cylinder head screw M8x30 -8.8-A2E ISO
26	6.362-381.0	O-Ring seal 13x2 - NBR 70
27	6.362-703.0	O-Ring seal 6,0x1,5-NBR 70
28	5.110-867.0	Sleeve
29	6.362-427.0	O-Ring seal 15,0x2,0
30	4.580-581.0	Valve complete
31	6.362-853.0	O-Ring seal 4,47x1,78
32	5.402-705.0	Joining piece
33	6.363-037.0	O-Ring seal complete 1ST.-R.
34	4.553-197.0	Piston complete only for replacement
35	5.115-796.0	Washer
36	5.332-268.0	Helical spring
37	5.411-148.0	Screw plug
38	5.367-030.0	Diaphragm
39	5.034-494.0	Retaining bracket
40	4.580-594.0	Valve complete
41	4.744-225.0	Switch complete
42	4.744-224.0	Switch complete
43	5.411-504.0	Screw plug
44	6.362-176.0	O-Ring seal 6,07x1,78
45	6.362-079.0	O-Ring seal 18,0 X 2,5
46	5.581-239.0	Valve seat
47	6.362-386.0	O-Ring seal 5,0 x 1,5-NBR 80
