Karcher (Керхер) Pучной пистолет-распылитель (0.104-643.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

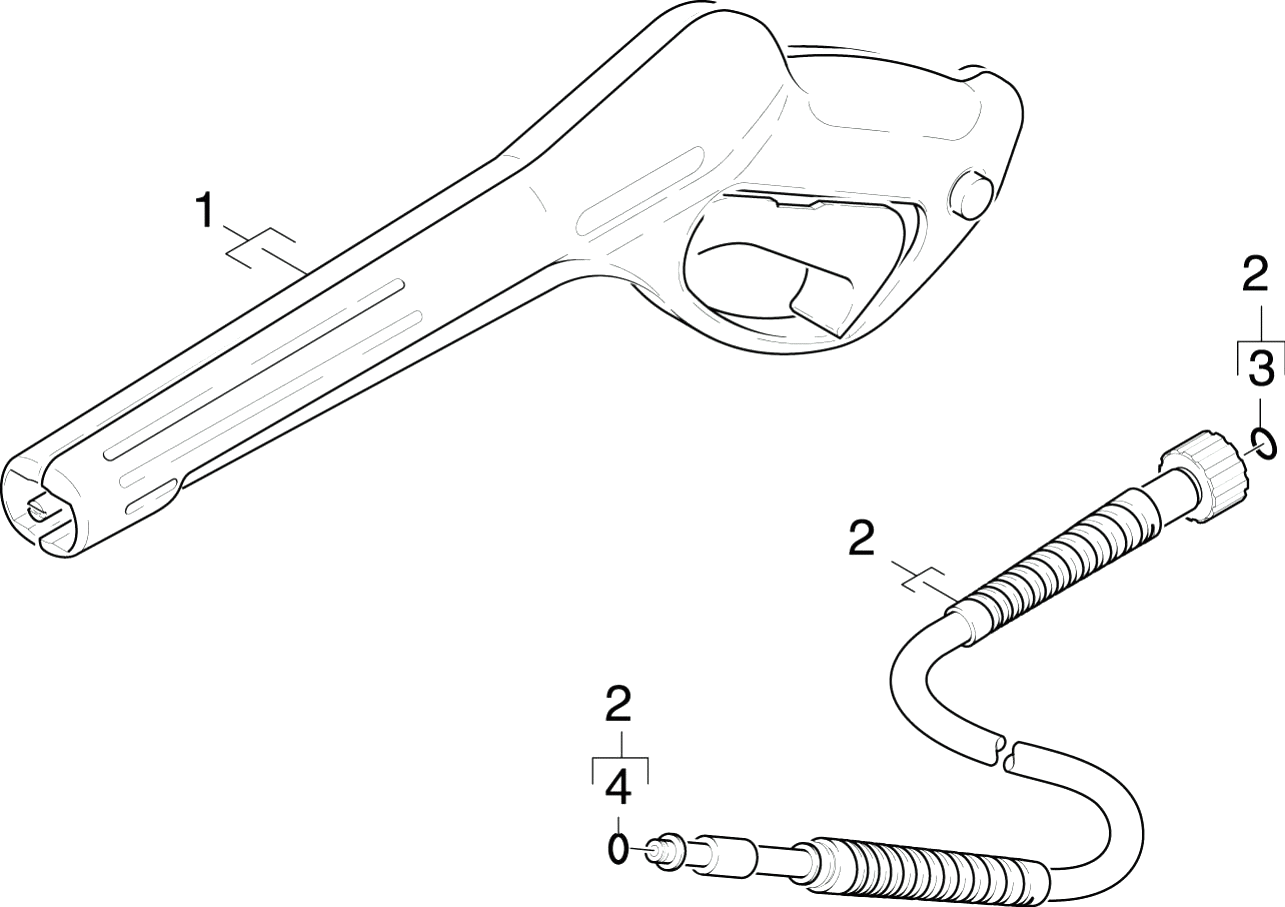

REF.	АРТИКУЛ	ОПИСАНИЕ
0	2.642-172.0	G 160 Q pistol Quick Connect
1	4.775-331.0	Pistol replacement 97K
1	5.332-464.0	Pressure spring
1	9.001-749.0	High-pressure outlet complete
2	6.391-663.0	High pressure hose 7,5/14MPa
2	2.641-721.0	H 9 Q high pressure hose Quick Connect
2	9.039-148.0	Metal fork
3	2.880-154.0	O-Ring kit
3	6.363-410.0	O-Ring seal 5,7x1,78 NBR 90Shore
3	9.086-200.0	Винт M 8x55 Класс 8.8
4	6.362-498.0	O-Ring seal 6,75x1,78 NBR 70
4	9.037-673.0	Bracket pump (bridge)
5	9.039-308.0	Крышка K130
7	9.001-741.0	FRONT HOUSING MODULAR COMPACT
8	9.001-692.0	Housing and pressure controller WCP
10	9.081-422.0	Фасонное уплотнение
11	9.001-693.0	Spare parts set cylinder head WCP
12	9.080-455.0	Поэзия 10x2,8
13	6.362-875.0	Grooved ring
14	9.001-110.0	Moulded part complete
15	9.001-149.0	Spare parts set valve
16	9.001-106.0	Joining piece
17	9.001-107.0	Cage complete
18	9.047-026.0	Пружина
19	9.001-108.0	Injector complete
20	9.001-782.0	Spare parts set suction side
21	6.465-031.0	Connection 3/4
