Karcher (Керхер) Pучной пистолет-распылитель (0.104-565.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

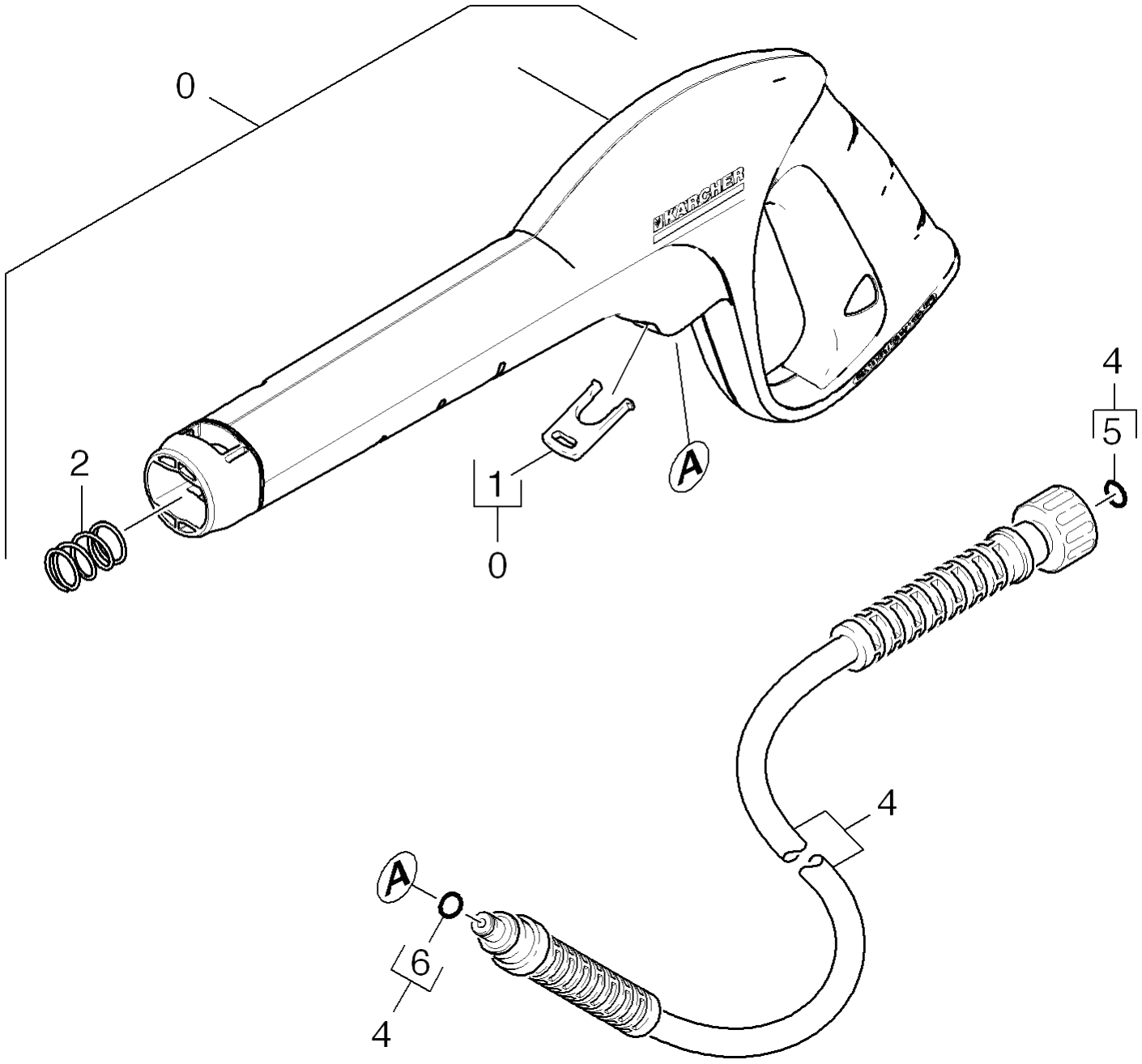

REF.	АРТИКУЛ	ОПИСАНИЕ
0	2.641-959.0	G 160 pistol
0	9.001-125.0	Pistol only for replacement -KAERCHER 9
0	2.642-172.0	G 160 Q pistol Quick Connect
1	5.037-185.0	Clamp
1	9.036-408.0	365 TRIGGER GUN HANDLES (CASING)
1	5.731-652.0	Filter with weight
1	6.303-265.0	Self-tapping screw M6x20
1	5.332-464.0	Pressure spring
2	5.332-464.0	Pressure spring
2	6.964-044.0	Moulded part
2	6.388-216.0	Hose DN 5
2	5.064-127.0	Cover
3	9.011-402.0	Bush completely
3	9.001-741.0	FRONT HOUSING MODULAR COMPACT
3	4.030-123.0	Moulded part complete only for replaceme
4	6.390-871.0	Шланг высокого давления M 6 м/1 МПа
4	6.964-002.0	Spring
4	9.001-104.0	Spare parts set control head
4	6.362-169.0	O-Ring seal 12,0 X 2,0
5	5.481-159.0	Lever
5	7.311-569.0	Square nut M4 -04-A2E DIN 562
5	4.580-666.0	Excess-current complete D5,7 PUR
6	6.362-498.0	O-Ring seal 6,75x1,78 NBR 70
6	6.303-122.0	M4 .2X13 DIN 7981 TORX T15 PAN HD HI/LO
6	9.081-422.0	Фасонное уплотнение
6	6.362-852.0	O-Ring seal complete 3,69
7	9.011-397.0	Tube pistol 99
7	9.036-322.0	Supporting disk
7	5.060-642.0	Piston guidance
8	6.362-898.0	O-Ring seal 7X2 NBR90
8	6.362-875.0	Grooved ring
9	5.031-068.0	Joining piece
9	9.001-110.0	Moulded part complete
10	5.332-349.0	Pressure spring
10	9.001-105.0	Spare parts set cylinder head
11	9.036-444.0	Sleeve
12	9.082-051.0	Шланг высокого давления нейтр. 9,0/130,
12	9.082-057.0	Шланг высокого давления 7,5/130
12	2.889-075.0	Spare part set pressure cap
12	9.039-117.0	Cover
13	6.363-115.0	O-Ring seal complete 1ST.-R.
13	7.306-042.0	Cylinder head screw M8x25 -8.8-A2E ISO4
14	9.047-026.0	Пружина
15	9.001-149.0	Spare parts set valve
16	9.001-106.0	Joining piece
17	9.001-107.0	Cage complete
18	9.001-108.0	Injector complete
19	6.465-031.0	Connection 3/4
20	9.001-187.0	Inlet Elbow
