Karcher (Керхер) Pучной пистолет-распылитель (0.104-398.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

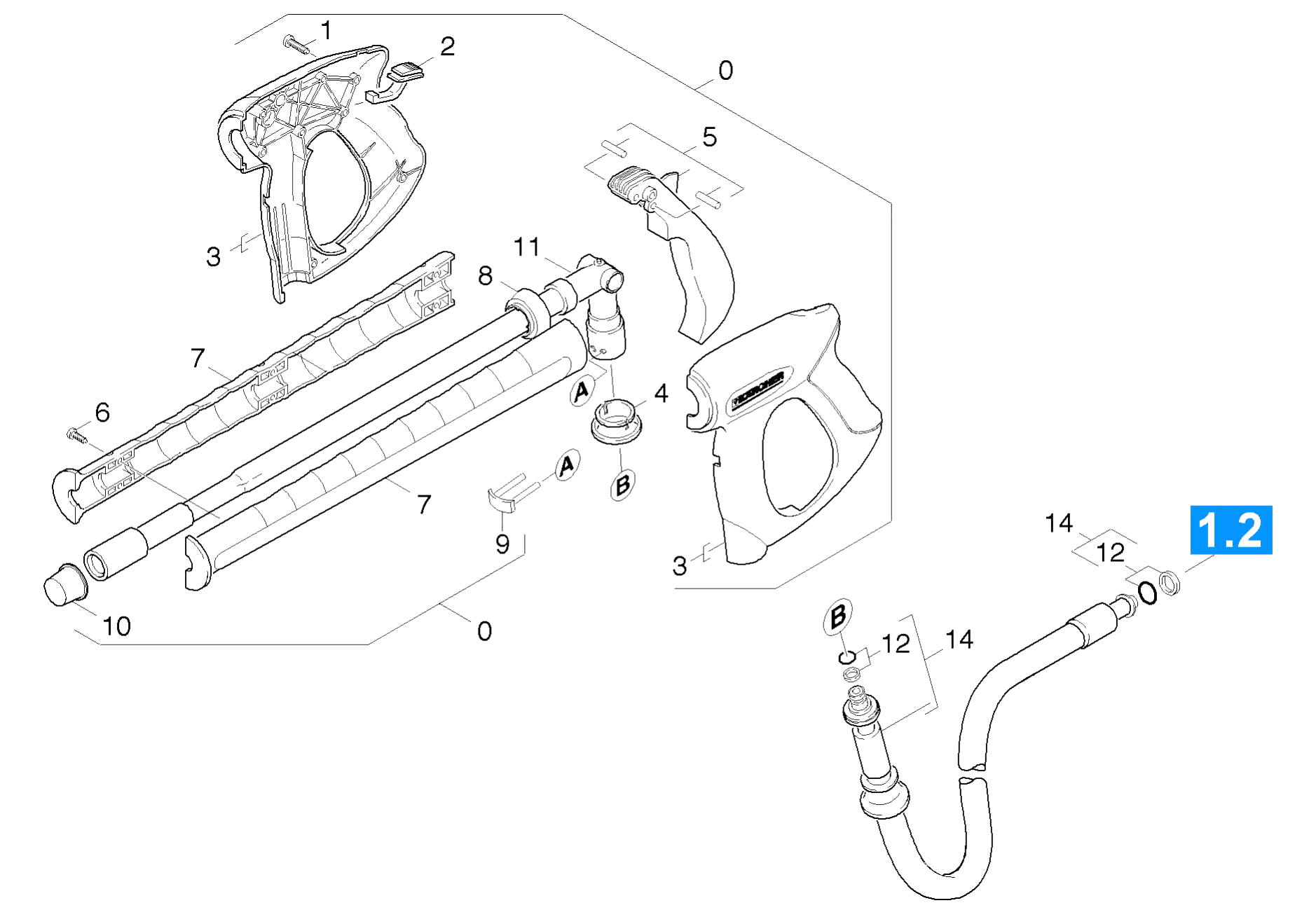

REF.	АРТИКУЛ	ОПИСАНИЕ
0	4.775-529.0	Trigger gun
1	7.303-096.0	Screw 4x22 -ST-10.9-R2R (IN6RD)
2	5.481-331.0	Slider
3	5.322-082.0	Handhold few hand trigger gun Low End
4	5.110-596.0	Sleeve
6	7.303-129.0	Screw 4x16 -10.9-R2R (K-In6Rd)
7	5.322-083.0	Handhold few extended Low End
8	5.032-801.0	Moulded part
9	4.037-013.0	Hook
10	6.368-012.0	Protecting cap 22X1,5
11	4.427-363.0	Manifold complete only for replacement L
12	4.363-691.0	O-Ring seal kpl. -nur fuer Ersatz-
14	6.391-417.0	Hose assembly standard DN6 25MPa 15m
15	7.401-908.0	Sphere 7 G300 -1.4301 DIN 5401
16	6.362-175.0	O-Ring seal 5,28x 1,78
17	5.332-258.0	Helical spring
18	6.362-384.0	O-Ring seal 9x1,5 - NBR 70
19	6.362-851.0	O-Ring seal 4 x 2 NBR 90
20	5.584-091.0	Valve pin check valve
21	4.769-034.0	Nozzle insert only for replacement
22	5.411-171.0	Screw plug
23	6.362-533.0	O-Ring seal 14,0 X 1,5-NBR 70
24	4.591-038.0	Overflow valve
27	5.110-630.0	Sleeve
28	7.314-629.0	Grooved pin 2x10 -A1 ISO 8742
29	5.583-147.0	Valve screw
30	6.362-468.0	O-Ring seal complete 1ST.-R.
31	4.291-014.0	Spindle complete
32	5.321-307.0	Handhold
33	4.744-168.0	Switch complete
34	5.034-494.0	Retaining bracket
35	6.362-480.0	O-Ring seal 12,42x 1,78
38	6.465-031.0	Connection 3/4
