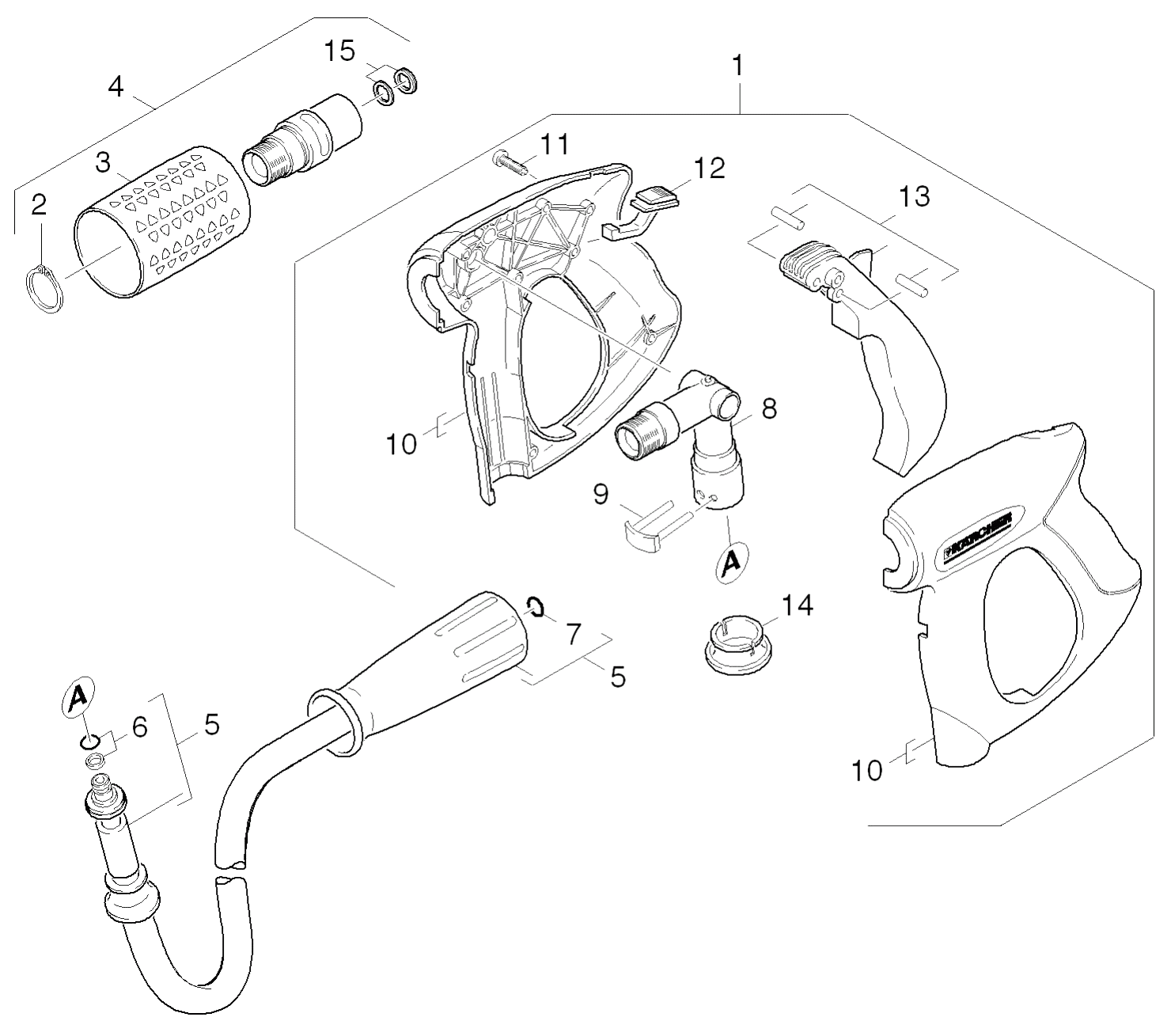

Karcher (Керхер) Pучной пистолет-распылитель (0.103-983.0)
Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85
| REF. |
АРТИКУЛ |
ОПИСАНИЕ |
ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
| 1 |
4.775-463.0 |
HAND TRIGGER GUN EASY PRESS |
|
| 1 |
4.403-002.0 |
Coupler |
|
| 2 |
7.343-008.0 |
Locking ring 25x1,2-St-vz DIN 471 |
|
| 3 |
5.321-668.0 |
Handle |
|
| 4 |
4.775-470.0 |
Rotary controller 416L |
|
| 5 |
6.391-351.0 |
Hose assembly only for replacement DN8 4 |
|
| 6 |
4.363-691.0 |
O-Ring seal kpl. -nur fuer Ersatz- |
|
| 7 |
4.747-097.0 |
Level probe -nur f?r Ersatz- |
|
| 8 |
5.310-062.0 |
Nut |
|
| 9 |
4.037-013.0 |
Hook |
|
| 10 |
5.443-312.0 |
Hose stem |
|
| 10 |
5.321-669.0 |
Handhold few |
|
| 11 |
5.311-204.0 |
Hexagon nut M22x1,5 |
|
| 11 |
6.391-612.0 |
Piece of tube only for replacement |
|
| 11 |
7.303-096.0 |
Screw 4x22 -ST-10.9-R2R (IN6RD) |
|
| 12 |
4.553-198.0 |
Piston complete only for replacement |
|
| 12 |
5.112-193.0 |
Bush |
|
| 12 |
5.481-331.0 |
Slider |
|
| 13 |
6.362-468.0 |
O-Ring seal complete 1ST.-R. |
|
| 13 |
5.443-553.0 |
Connection piece |
|
| 14 |
6.362-161.0 |
O-Ring seal 19,3 X 2,4 |
|
| 14 |
5.110-596.0 |
Sleeve |
|
| 15 |
4.730-124.0 |
Filter complete |
|
| 15 |
4.363-695.0 |
Grooved ring only for replacement |
|
| 16 |
6.414-681.0 |
Filter cartridge |
|
| 17 |
5.363-613.0 |
Seal |
|
| 18 |
5.583-146.0 |
Valve screw |
|
| 18 |
5.064-107.0 |
Cover |
|
| 19 |
6.362-481.0 |
O-Ring seal 14,0 x 2,0 NBR 80 |
|
| 19 |
7.373-022.0 |
Hose clip A-16-27x9 -W2-2 DIN3017 |
|
| 20 |
2.884-512.0 |
Valve (3 Stueck) |
|
| 20 |
6.388-719.0 |
FLEX HOSE(CUT TO REQD LENGTH-M'S) |
|
| 21 |
6.363-003.0 |
O-Ring seal 13,0 X 2,0-NBR 90 |
|
| 21 |
5.310-061.0 |
"""Nut R 3/4"""" """ |
|
| 22 |
4.550-889.0 |
Cylinder head complete |
|
| 22 |
5.443-224.0 |
Hose stem |
|
| 23 |
6.363-536.0 |
O-Ring seal 21x1,5 |
|
| 23 |
6.362-078.0 |
O-Ring seal 13,3x2,4 |
|
| 24 |
5.427-416.0 |
Manifold water intake |
|
| 24 |
5.365-289.0 |
Rubber bushing transmitter feeder |
|
| 25 |
7.306-043.0 |
Cylinder head screw M8x30 -8.8-A2E ISO |
|
| 25 |
4.686-030.0 |
Solenoid valve only for replacement |
|
| 26 |
6.362-381.0 |
O-Ring seal 13x2 - NBR 70 |
|
| 27 |
6.362-703.0 |
O-Ring seal 6,0x1,5-NBR 70 |
|
| 27 |
6.641-474.0 |
Cable tape 8-210 |
|
| 28 |
5.110-865.0 |
Sleeve |
|
| 28 |
7.303-108.0 |
Screw 5x20 -10.9-R2R (In6Rd) |
|
| 29 |
6.362-427.0 |
O-Ring seal 15,0x2,0 |
|
| 30 |
4.580-581.0 |
Valve complete |
|
| 31 |
6.362-853.0 |
O-Ring seal 4,47x1,78 |
|
| 32 |
5.402-705.0 |
Joining piece |
|
| 33 |
6.363-037.0 |
O-Ring seal complete 1ST.-R. |
|
| 34 |
4.553-197.0 |
Piston complete only for replacement |
|
| 35 |
5.115-796.0 |
Washer |
|
| 36 |
5.332-268.0 |
Helical spring |
|
| 37 |
5.411-148.0 |
Screw plug |
|
| 38 |
5.367-030.0 |
Diaphragm |
|
| 39 |
5.034-494.0 |
Retaining bracket |
|
| 40 |
4.580-594.0 |
Valve complete |
|
| 41 |
4.744-225.0 |
Switch complete |
|
| 42 |
4.744-224.0 |
Switch complete |
|
| 43 |
5.411-504.0 |
Screw plug |
|
| 44 |
6.362-176.0 |
O-Ring seal 6,07x1,78 |
|
| 45 |
6.362-079.0 |
O-Ring seal 18,0 X 2,5 |
|
| 46 |
5.581-239.0 |
Valve seat |
|
| 47 |
6.362-386.0 |
O-Ring seal 5,0 x 1,5-NBR 80 |
|
