Karcher (Керхер) Pучной пистолет-распылитель (0.103-929.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

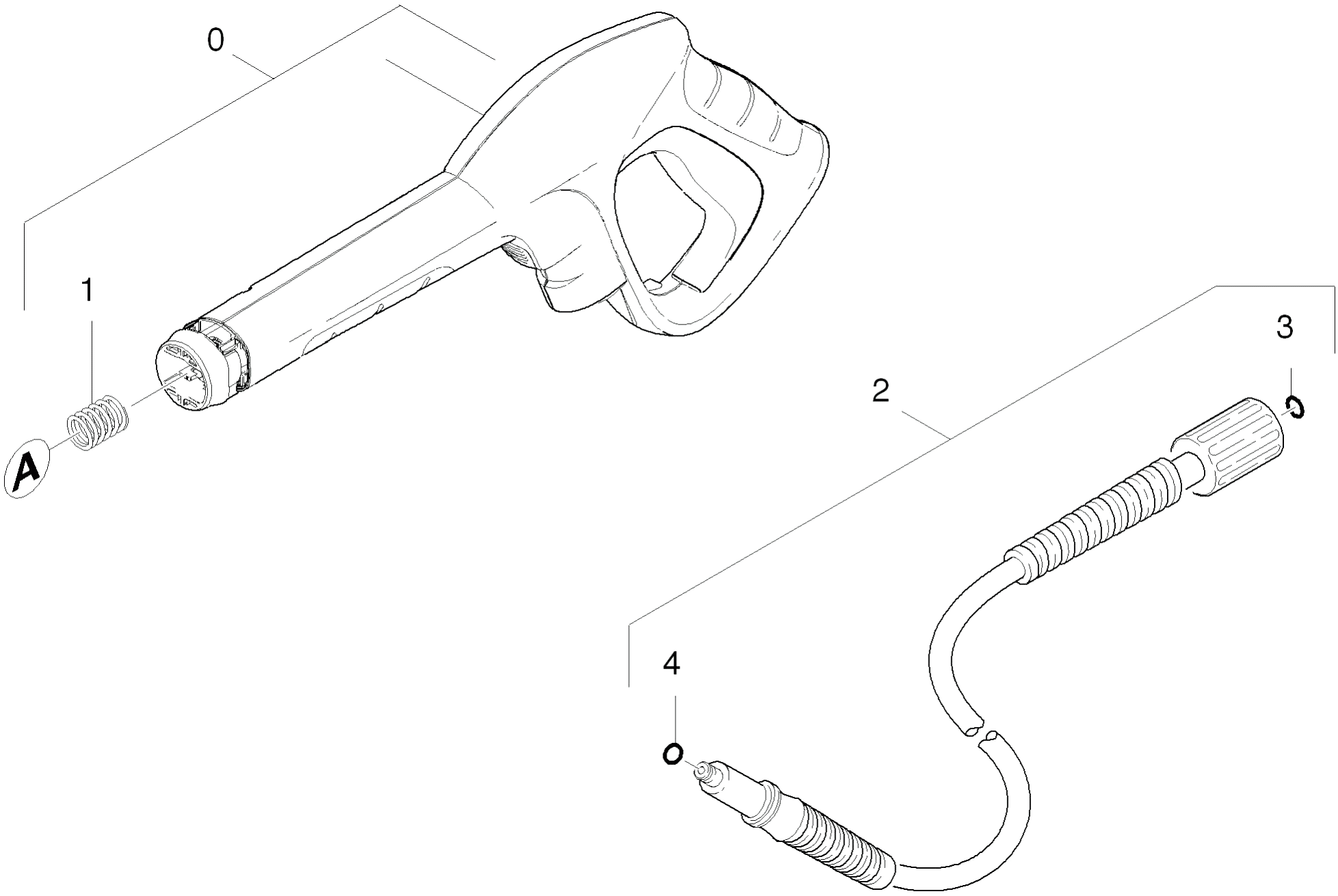

REF.	АРТИКУЛ	ОПИСАНИЕ
0	2.642-172.0	G 160 Q pistol Quick Connect
1	5.332-464.0	Pressure spring
1	9.036-898.0	Screw plug
1	9.039-352.0	Штифт часть шланга
1	2.885-244.0	Spare parts set hook hose
2	2.641-706.0	Шланг высокого давления 16MПа/9м
2	9.081-402.0	Кольцо 15х2
2	6.391-795.0	High pressure hose 16MPa/12m 60°C
2	6.391-794.0	High pressure hose 16MPa/9m 60°C
2	6.363-018.0	O-Ring seal 4X2
3	9.001-278.0	Connection complete
3	9.001-745.0	Connection complete
3	6.363-410.0	O-Ring seal 5,7x1,78 NBR 90Shore
3	6.390-426.0	Hose DN 5
4	6.363-410.0	O-Ring seal 5,7x1,78 NBR 90Shore
4	5.731-598.0	Fine filter
4	9.037-621.0	Handhold chemistry
5	9.086-199.0	Винт
5	6.362-522.0	O-Ring seal 24,0 X 2,0
6	9.081-417.0	Кольцо круглого сечения 20 х 2
6	9.086-203.0	Винт 4x22
7	9.001-281.0	By-pass valve
7	9.037-618.0	Holder pistol above
8	4.025-894.0	High-pressure outlet complete K5.91M
8	9.001-747.0	Connection delivery side
8	9.012-717.0	Handhold complete
9	6.362-151.0	O-Ring d. 10 x 2 NBR 70
9	9.012-681.0	RM retainer station
10	7.306-151.0	Cylinder head screw M8x65 -8.8-A2E ISO4
10	9.038-023.0	Holder accessories EU-USA
11	9.001-277.0	Spare parts set chemistry
11	9.037-871.0	Housing rear ACM Modular
12	4.515-325.0	Wheel set replacement 200 HUMMER
13	9.001-800.0	Spare part set control head
13	4.515-292.0	Screen for replacement 200 Hummer SF
14	9.081-424.0	Фасонное уплотнение
14	9.037-622.0	Catch for cable
15	9.001-274.0	Spare part set control head
15	9.037-636.0	Cover Modular TOP
15	9.037-971.0	Cover yellow WCM ** TOP
16	9.001-110.0	Moulded part complete
16	9.037-619.0	Holder pistol bottom
17	6.362-875.0	Grooved ring
17	9.037-630.0	Cover yellow X -TOP
18	9.037-059.0	Support ring
18	9.037-861.0	Nipple 90° Mod.Range
19	9.001-275.0	Valve set
19	9.001-766.0	Covering cap complete silver
20	9.001-276.0	Joining piece
20	6.276-045.0	Accessories mains
21	6.465-031.0	Connection 3/4
21	6.388-216.0	Hose DN 5
22	9.001-819.0	Cage complete
22	5.731-652.0	Filter with weight
23	4.769-035.0	Nozzle insert
24	9.037-142.0	Distance holder
