Karcher (Керхер) Принадлежности (0.163-689.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

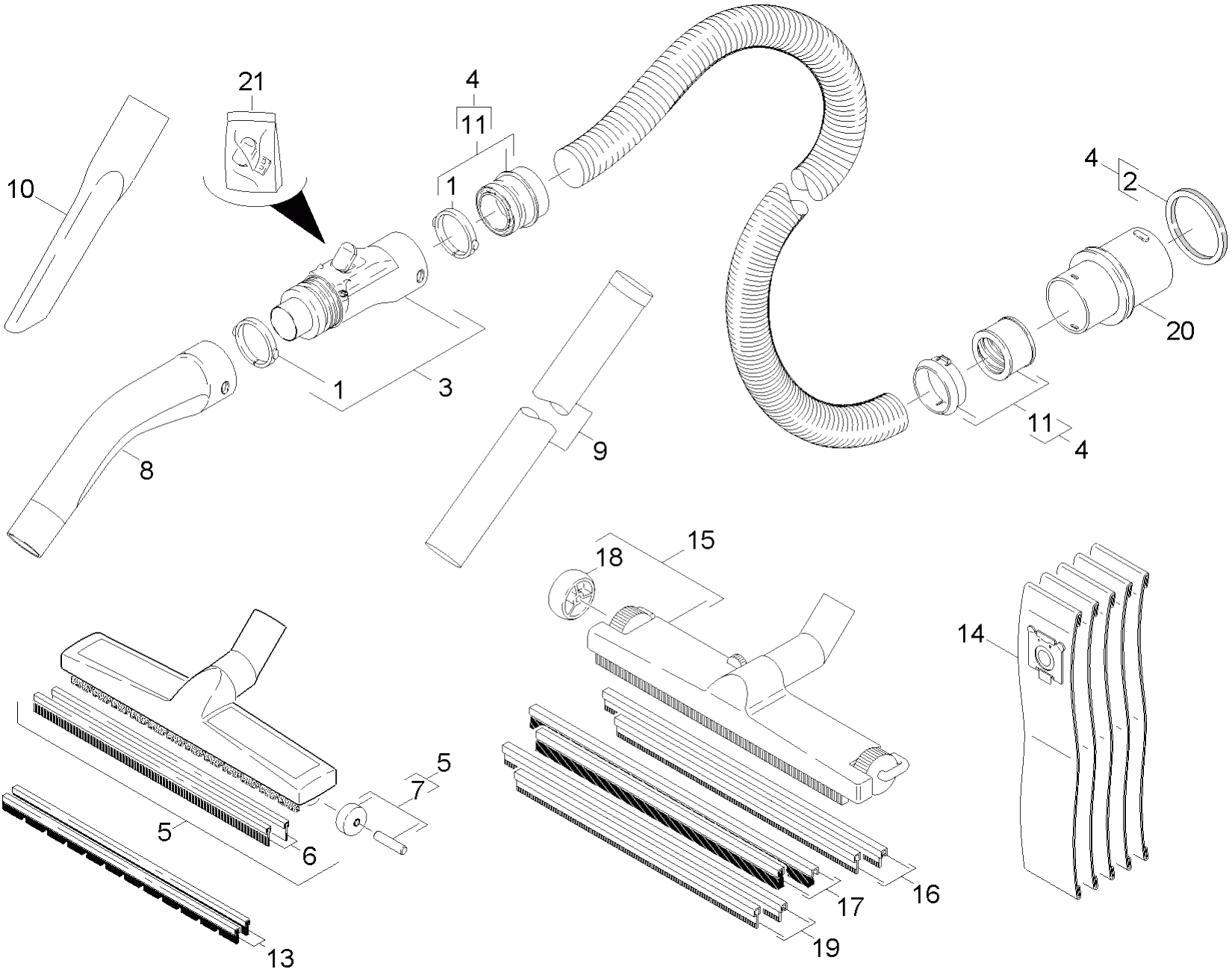

REF.	АРТИКУЛ	ОПИСАНИЕ
1	5.031-905.0	Tension ring C40
1	4.070-464.0	Tank complete NT 65/2 Eco
2	6.273-202.0	Cord cellular rubber
2	5.032-285.0	Fixing
3	4.060-474.0	Housing module C40
3	7.303-171.0	Screw 5x80 -10.9-R2R (K-In6Rd)
4	6.906-321.0	Suction hose C40 4m
4	5.032-261.0	Holder accessories large
5	6.906-554.0	Насадка для пола DN40
5	5.034-658.0	Shearing shackle
6	6.905-877.0	Rubber lip set only for replacement
6	5.032-331.0	Holder floor nozzle
7	4.515-342.0	Roller complete with axle
7	5.032-286.0	Holder axle
8	5.031-904.0	Elbow
8	5.105-367.0	Axle
9	6.902-081.0	Suction tube DN40
9	6.435-196.0	Wheel D 180
10	6.903-033.0	Crevice nozzle DN40
10	6.343-168.0	Lock washer
11	2.639-873.0	Repair set
11	6.435-197.0	Wheel cap zinc yellow
12	7.312-004.0	Washer 8 -200HV-A3E ISO 7090
13	6.905-878.0	Brush strips set only for replacement
13	6.303-285.0	Screw M 8x 40
14	6.904-285.0	Filter bags 5St. -NT 65/2 ECO
14	5.034-659.0	Retaining bracket steering rollers
15	6.903-018.0	Floor tool DN40-370
15	6.362-169.0	O-Ring seal 12,0 X 2,0
16	6.903-062.0	Rubber strip set
16	5.110-922.0	Bush M8
17	6.903-064.0	Brush strip set
17	5.031-602.0	Suction connection
18	6.903-016.0	Roller
18	6.435-384.0	Castor stop 75
19	6.903-081.0	Rubber strip set oil resistant
19	7.311-423.0	Hexagon nut M10 -04-A2E ISO 10511
20	5.443-477.0	Hosebarb DN40
20	5.032-262.0	Holder accessories
21	4.324-015.0	Pushbutton module complete
21	7.303-086.0	Screw 5x30 -10.9-R2R (K-In6Rd)
22	5.032-446.0	Covering cap
32	7.312-026.0	Washer 6 -A2 ISO 7090
33	7.311-334.0	Cap nut M6 -A1-50 DIN 917
34	6.368-371.0	Cap
35	6.321-172.0	Handhold complete
