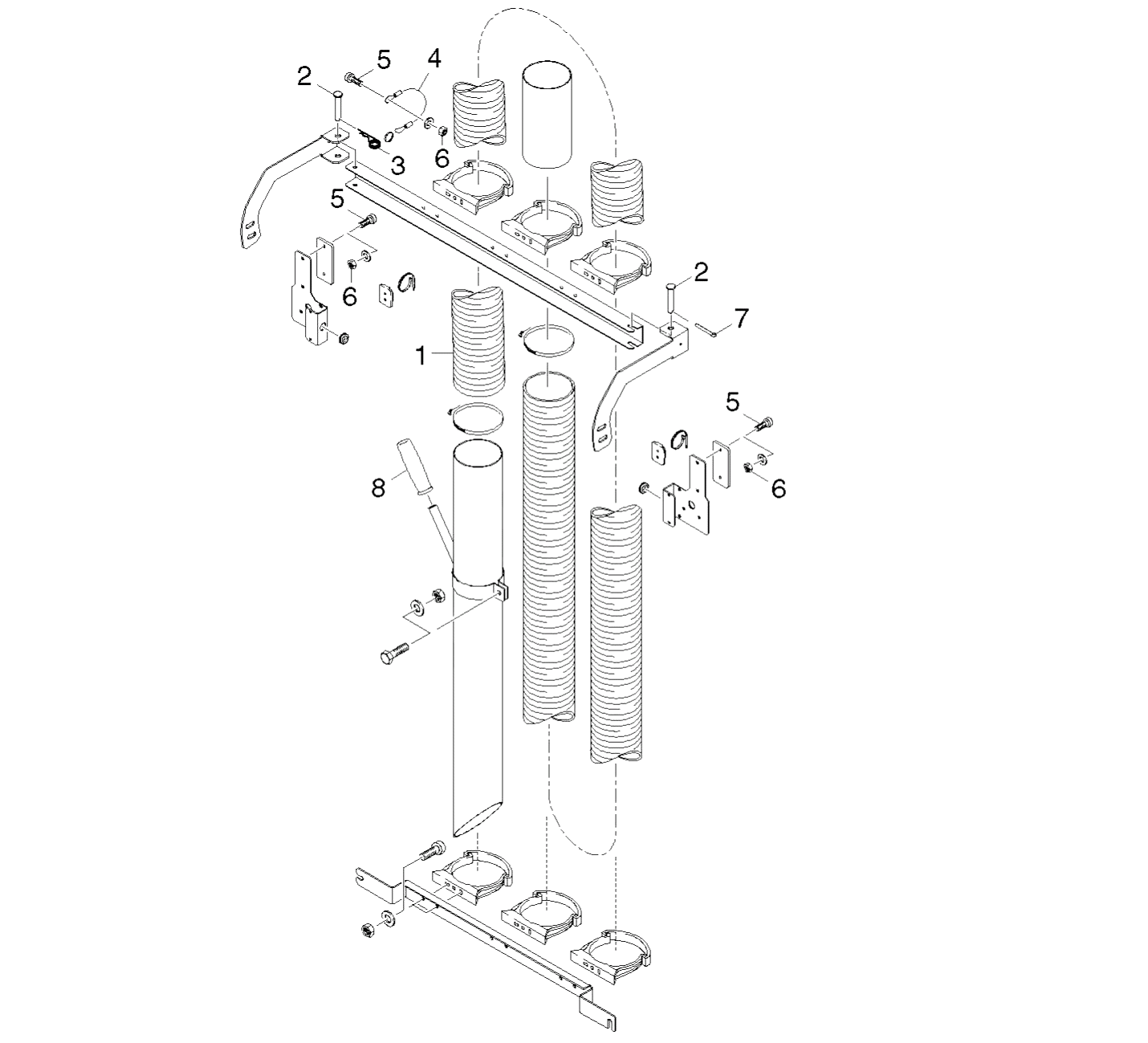

Karcher (Керхер) МК всасывающий шланг (0.208-384.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

REF.	АРТИКУЛ	ОПИСАНИЕ
1	6.391-607.0	Suction hose
2	7.316-226.0	Bolt B-10x60-St-A2E ISO 2341
3	7.316-450.0	Spring clip 3,2-DR-vz DIN11024
4	6.431-007.0	Rope D 1x260 mm
5	7.306-098.0	Cylinder head screw M 4X16-8.8-A2E DIN
6	7.311-424.0	Hexagon nut M4 -8-A2E ISO 7040
7	7.316-346.0	Cotter 3,2x18 -St-A2E ISO 1234
8	5.321-000.0	Handhold
17	6.997-362.0	Wheel bolt G12x21-10.9
18	7.306-146.0	Cylinder head screw M12x70 -A4-70 ISO 4
19	7.312-054.0	Washer 12-A2 ISO 7090
20	7.311-429.0	Hexagon nut M12-04-A2E ISO 10511
21	6.503-011.0	Hydraulic motor wheel motor
21	6.503-016.0	Hydraulic motor
23	6.630-003.0	Switch
24	4.038-785.0	Sheet metal component complete
25	6.330-131.0	Extension spring
26	5.001-808.0	Plate position 0
27	6.472-939.0	Pump HYDR. FAHRANTRIEB
28	4.481-132.0	Lever complete
29	5.625-370.0	Belt pulley
29	5.625-363.0	Ремённый шкив
30	5.115-803.0	Washer blower EATON 11
32	7.311-004.0	Hexagon nut M8 -8-A3E ISO 4032
33	7.304-404.0	Hexagonal head screw M8x40-8.8-A2E ISO
34	6.435-381.0	Tire only for replacement 165/65R13
36	6.435-380.0	Wheel rim
37	2.883-876.0	Spare part set driveshaft EATON11
38	6.316-089.0	Bolt
39	2.883-875.0	Spare parts set EATON11
40	2.882-479.0	Conversion kit blower EATON11
41	5.115-861.0	Washer blower external
43	6.304-141.0	"""Hexagonal head screw 1/4""""-20UNC 1"""" 8.8 I"""
44	7.306-077.0	Screw M5x16 -8.8-R2R (In6Rd)
46	5.115-862.0	Washer blower inside
47	5.105-276.0	Axle
48	7.312-005.0	Washer 10-200HV-A3E ISO 7090
49	7.311-006.0	Hexagon nut M10 -8-A3E ISO 4032
50	7.312-263.0	Washer 12-100HV-A3E ISO7094
51	2.884-210.0	Spare parts set lever hydraulic
52	6.318-004.0	Curved washer
53	5.692-051.0	Blower wheel
54	6.401-451.0	Set of gaskets
