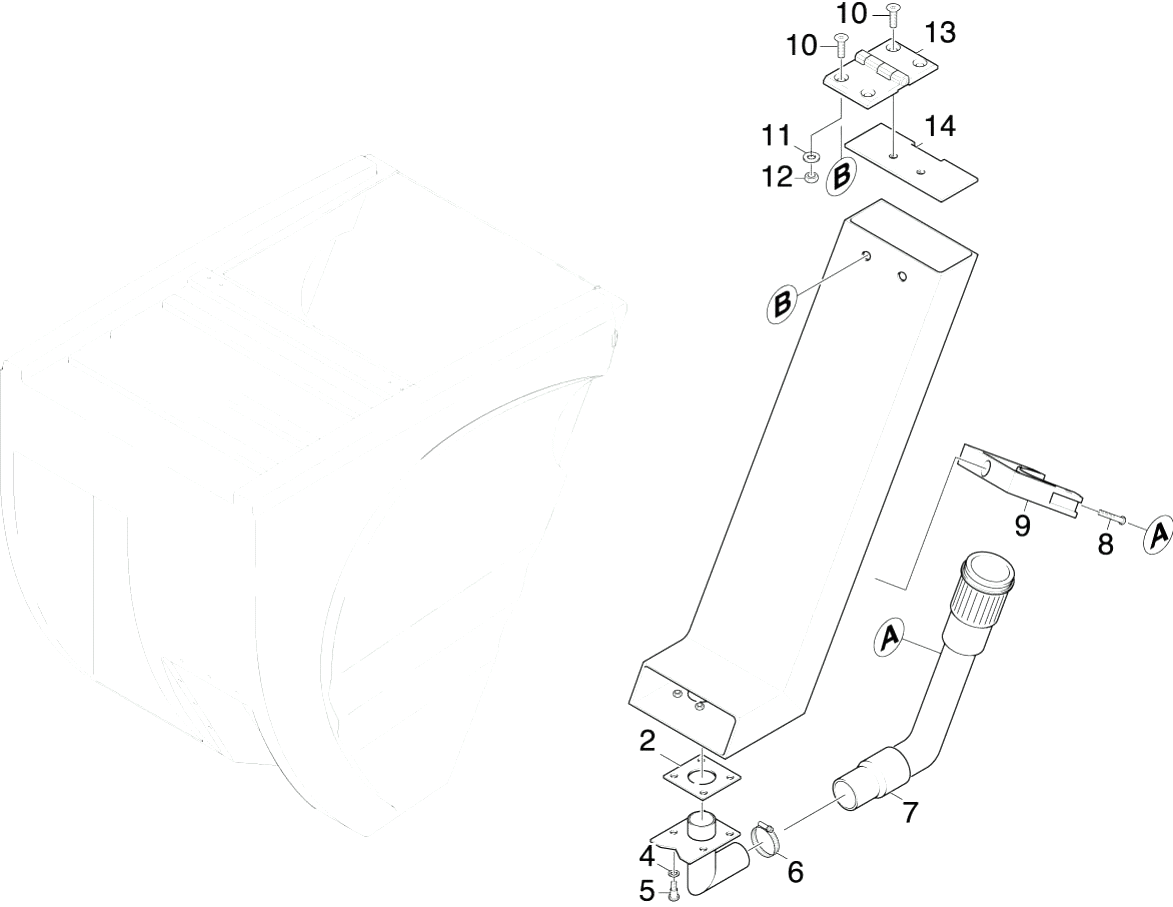

Karcher (Керхер) МК спуск воды (0.207-533.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

REF.	АРТИКУЛ	ОПИСАНИЕ
2	5.363-532.0	Seal water outlet
4	7.312-003.0	Washer 6 -200HV-A3E ISO 7090
5	7.306-105.0	Screw M6x30 -8.8-R3R (In6Rd)
6	6.388-521.0	Hose clip
7	7.312-276.0	Washer 6 -200HV-A2E ISO7093-1
7	4.446-010.0	Drain hose BR/BD 530
8	7.306-043.0	Cylinder head screw M8x30 -8.8-A2E ISO
8	7.306-138.0	Screw M6x60 -8.8-R3R (In6Rd)
9	6.373-692.0	Pipe clip D 63
9	7.312-278.0	Washer 5-200HV-A2E ISO7093-1
10	7.305-053.0	Countersunk screw M6x16-A2-70 (IN6RD)
10	7.303-098.0	Винт 5x20 -10.9-R2R (K-In6Rd)
11	4.040-214.0	Sheet metal component complete ABS-Heizu
11	7.312-266.0	Washer 6-A2 ISO 7094
11	7.306-268.0	Винт M6x70 -8.8-R3R (In6Rd)
12	7.312-002.0	Washer 5-200HV-A3E ISO 7090
12	7.311-022.0	Hexagon nut M 6-A2-70 ISO 7040
12	4.040-010.0	Sheet metal component complete holder
13	7.303-107.0	Screw 5x16 -10.9-P2R (K-In6Rd)
13	6.372-078.0	Hinge
13	5.100-369.0	Shaft
14	5.007-235.0	Plate flap water outlet
14	5.055-276.0	Stay
15	7.312-004.0	Washer 8 -200HV-A3E ISO 7090
15	5.055-277.0	Stay
16	7.304-395.0	Hexagonal head screw M8x16-8.8-A2E ISO
16	7.348-007.0	V-Belt AVX10x725La DIN 7753-3
17	7.305-022.0	Countersunk screw M4x12 -4.8-A2E ISO 20
17	7.305-627.0	Countersunk screw M8x25-A2-70 ISO 10642
18	4.040-215.0	Sheet metal component complete ABS-Heizu
19	4.040-224.0	Sheet metal component complete ABS-Heizu
19	7.304-123.0	Hexagonal head screw M10x120-8.8-A3E IS
20	6.273-055.0	Profile gasket
20	7.304-399.0	Hexagonal head screw M 8x25-8.8-A2E ISO
21	6.388-764.0	Suction hose DN50
21	7.312-004.0	Washer 8 -200HV-A3E ISO 7090
22	6.373-260.0	Pipe clamp 2 Z ST
22	7.304-406.0	Hexagonal head screw M 8x35-8.8-A2E IS
23	6.388-713.0	Hose clip
23	7.312-005.0	Washer 10-200HV-A3E ISO 7090
25	6.906-551.0	Ventilation grille
25	6.491-663.0	Dynamo
26	6.273-058.0	Sealing tape cellularrubber 9x4
27	6.641-404.0	Wire protecting sleeve
29	7.306-167.0	Cylinder head screw M 4x40-8.8-A2E DIN
30	7.312-001.0	Washer 4 -200HV-A3E ISO 7089
