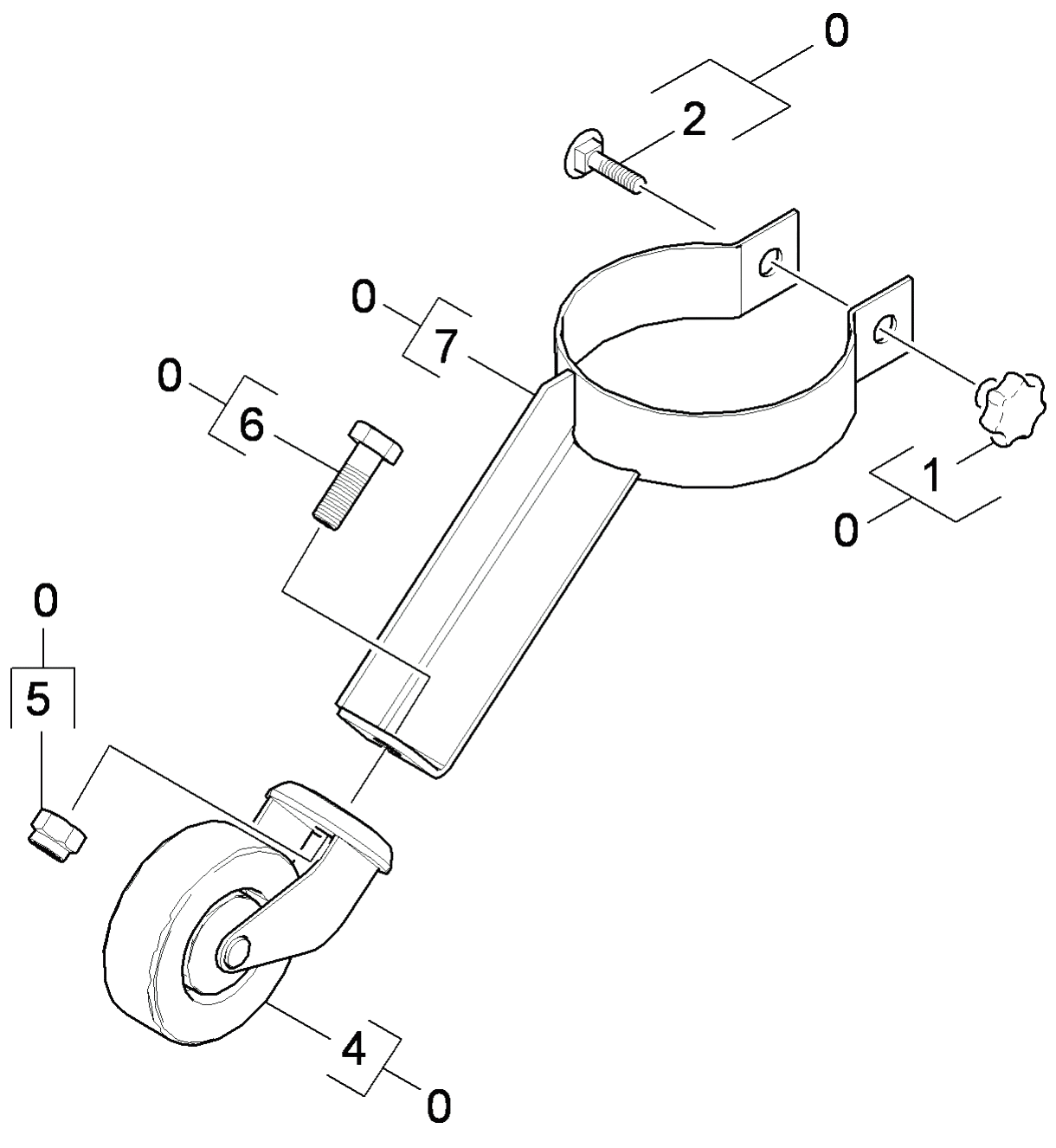

Karcher (Керхер) МК рулевая стойка (0.208-605.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

REF.	АРТИКУЛ	ОПИСАНИЕ
0	2.850-834.0	Дополнительный комплект рулевая стойка
0	2.850-883.0	МК бордюрный камень помощь
0	2.850-833.0	Дополнительный комплект круговой сигналь
0	2.850-839.0	МК всасывающий шланг 125mm
0	2.850-832.0	Доп. комплект к плоскому фильтру
0	2.850-831.0	Дополнительный комплект раздуватель лист
1	6.310-066.0	Star grip M 8
1	5.600-092.0	Blower wheel plastics
1	6.491-207.0	Parallel key
1	6.273-055.0	Profile gasket
1	6.330-142.0	Extension spring
1	6.651-566.0	Lamp
1	7.303-046.0	Screw M6x12 -St-R3R (In6Rd)
1	5.321-000.0	Handhold
1	5.731-631.0	Картридж фильтра IC 15/240 W
1	6.303-125.0	Screw 5x20-Sonder In6Rd+Spitze
2	7.303-204.0	Saucer-head screw M8x20 -St-A2R DIN 603
2	7.303-038.0	Screw M5x12 -St-P2R (In6Rd)
2	6.401-274.0	Flanged bearing 19,05
2	7.303-030.0	Screw M4x8 -St-P2R (In6Rd)
2	7.311-515.0	Hexagon nut M12-8-A2E ISO 7040
2	6.651-387.0	Socket pipe
2	7.311-427.0	Hexagon nut M8 -04-A2E ISO 10511
2	4.040-700.0	Clamp suction tube 125mm
2	6.313-004.0	Spring clip 4,0
2	5.017-861.0	Holder blow pipe
3	7.312-264.0	Washer 5-100HV-A3E ISO 7094
3	5.111-042.0	Sleeve axle
3	6.286-514.0	Sound insulation mat
3	7.312-008.0	Washer 12-200HV-A3E ISO 7090
3	6.632-476.0	Switch two-pole lamp
3	5.094-295.0	Plate support arm
3	5.107-277.0	Guide bar
3	6.388-767.0	Hose clip 70- 90
4	6.435-111.0	Castor D 75
4	5.033-408.0	Canal aspiration
4	6.435-751.0	Chain wheel 15 Z
4	6.286-513.0	Sound insulation mat
4	7.304-441.0	Hexagonal head screw M12x35-8.8-A3E ISO
4	6.303-125.0	Screw 5x20-Sonder In6Rd+Spitze
4	7.462-023.0	Angle joint CS13 -A2E DIN 71802
4	5.030-900.0	Stripper
4	6.391-718.0	Hose 75mm
5	7.311-511.0	Hexagon nut M10-8-A2E ISO 7040
5	6.365-498.0	Sealing profile
5	7.343-304.0	Lock washer 15 -A2 DIN 6799
5	7.303-032.0	Screw M4x12 -St-R2R (In6Rd)
5	7.304-072.0	Hexagonal head screw M12x110-A2-70 ISO
5	7.311-224.0	Hexagon nut M 8-04-A2E ISO 4035
5	6.375-257.0	Snap fastener
5	6.315-068.0	Rivet
5	6.286-514.0	Sound insulation mat
6	7.304-525.0	Hexagonal head screw M10x30-A4-70 ISO 4
6	7.303-032.0	Screw M4x12 -St-R2R (In6Rd)
6	6.432-269.0	Roller chain
6	5.094-286.0	Plate grate canal Ansaugung
6	7.311-429.0	Hexagon nut M12-04-A2E ISO 10511
6	7.462-006.0	Fork head G8x16 -St-A2E DIN71752
6	7.303-047.0	Screw M6x16 -St-R3R (In6Rd)
6	6.368-297.0	Protecting cap
7	4.044-083.0	Holder castor suction tube
7	5.094-286.0	Plate grate canal Ansaugung
7	6.996-959.0	Countersunk screw M 8x40
7	6.365-498.0	Sealing profile
7	7.306-118.0	Screw M 6x35 -8.8-R3R (In6Rd)
7	6.316-089.0	Bolt
7	6.391-702.0	Clamp 125mm
7	7.311-425.0	Hexagon nut M6 -04-A2E ISO 10511
7	7.303-030.0	Screw M4x8 -St-P2R (In6Rd)
8	6.286-513.0	Sound insulation mat
8	5.094-292.0	Plate instep pinion
8	5.033-134.0	Canal aspiration
8	7.312-045.0	Washer 6-200HV-P4E ISO 7089
8	6.304-132.0	"""Hexagonal head screw 1/4""""-28UNF-8.8-A2R """
8	6.391-703.0	Suction hose 125mm
8	7.314-945.0	Spring pin 5,0x28-St ISO 8752
8	5.332-170.0	Pressure spring
9	6.286-514.0	Sound insulation mat
9	7.311-427.0	Hexagon nut M8 -04-A2E ISO 10511
9	7.306-201.0	Screw M 6x55-A2-70 (IN6RD)
9	7.312-276.0	Washer 6 -200HV-A2E ISO7093-1
9	7.312-260.0	Washer 6 -100HV-A3E ISO 7094
9	4.025-911.0	Suction nipple complete 125mm
9	5.107-271.0	Bar filter vibrator
9	7.312-045.0	Washer 6-200HV-P4E ISO 7089
10	7.311-029.0	Hexagon nut M 5-A4-70 ISO 7042
10	7.312-277.0	Washer 8-200HV-A2E ISO7093-1
10	7.312-276.0	Washer 6 -200HV-A2E ISO7093-1
10	7.311-200.0	Hexagon nut M6 -04-A2E ISO 4035
10	7.312-008.0	Washer 12-200HV-A3E ISO 7090
10	6.365-375.0	Sealing profile
10	6.303-031.0	Screw M8x16-ST-A2R DIN 7500-1
10	7.311-425.0	Hexagon nut M6 -04-A2E ISO 10511
11	7.306-089.0	Screw M6x12 -8.8-R2R (In6Rd)
11	7.303-230.0	Saucer-head screw M8x20 -8.8-A2E DIN603
11	6.273-058.0	Sealing tape cellularrubber 9x4
11	6.491-914.0	Kit contact surfaces
11	6.388-423.0	"""Angle bushing 1/4"""" """
11	7.306-058.0	Screw M 4X 12- 8.8-R2R K-IN6RD
11	7.303-046.0	Screw M6x12 -St-R3R (In6Rd)
11	5.094-287.0	Plate grate covering
12	7.312-285.0	Washer 10 -200HV-A2E ISO7093-1
12	6.432-117.0	Chain tensioner sprocket
12	6.484-311.0	Blower wheel
12	6.330-199.0	Extension spring
12	5.321-736.0	Handhold
12	5.129-138.0	Tube blow pipe 75mm
13	7.303-046.0	Screw M6x12 -St-R3R (In6Rd)
13	5.112-539.0	Bush
13	6.303-031.0	Screw M8x16-ST-A2R DIN 7500-1
13	5.063-471.0	Cover
13	7.311-430.0	Hexagon nut M4 -04-A2E ISO 10511
13	5.326-028.0	Button
14	7.304-393.0	Hexagonal head screw M 8x10-8.8-A2E ISO
14	6.432-116.0	Locking link
14	5.017-863.0	Holder tension roller blower
14	5.030-389.0	Moulded part
14	4.044-095.0	Holder castor suction tube 125mm
14	7.305-050.0	Countersunk screw M5x20 -A2-70-s (In6Rd
15	7.311-511.0	Hexagon nut M10-8-A2E ISO 7040
15	6.435-841.0	Wheel complete
15	7.311-427.0	Hexagon nut M8 -04-A2E ISO 10511
15	5.070-048.0	Box
15	7.304-525.0	Hexagonal head screw M10x30-A4-70 ISO 4
16	5.253-025.0	Bearing flange blower
16	5.116-088.0	Washer
16	7.312-004.0	Washer 8 -200HV-A3E ISO 7090
16	6.362-168.0	O-Ring seal 22,3 X 2,4-NBR 70
16	6.435-111.0	Castor D 75
17	6.401-317.0	Bearing 6206 2RS
17	7.304-433.0	Hexagonal head screw M12x25-8.8-A3E ISO
17	5.100-231.0	Bush
17	5.409-368.0	Nipple
17	7.311-511.0	Hexagon nut M10-8-A2E ISO 7040
18	7.343-002.0	Shim ring 30x42x2-St2K50 DIN988
18	5.100-547.0	Tension roller
18	7.343-031.0	Locking ring 14x1-FST-PHR DIN 471
18	5.094-329.0	Sheet metal component holder suction tub
19	5.625-498.0	Belt pulley blower D 85
19	7.401-022.0	Ball bearing 16003-2RS-WST PREISW. DIN 6
19	6.388-537.0	Hose clip
19	6.303-125.0	Screw 5x20-Sonder In6Rd+Spitze
20	7.312-263.0	Washer 12-100HV-A3E ISO7094
20	7.343-167.0	Locking ring 35x1,5-FST-BR DIN 472
20	6.389-610.0	Hose
20	5.129-122.0	Suction tube 125mm
21	7.304-034.0	Hexagonal head screw M12x120-A2-70 ISO
21	7.312-277.0	Washer 8-200HV-A2E ISO7093-1
21	7.304-401.0	Hexagonal head screw M 8x60-8.8-A2E ISO
22	6.348-440.0	V-Belt
22	7.312-004.0	Washer 8 -200HV-A3E ISO 7090
23	7.304-404.0	Hexagonal head screw M8x40-8.8-A2E ISO
23	6.348-439.0	V-Belt
24	7.312-004.0	Washer 8 -200HV-A3E ISO 7090
24	6.368-324.0	Drain plug
24	6.373-544.0	Ременная пряжка
25	7.312-277.0	Washer 8-200HV-A2E ISO7093-1
25	6.348-440.0	V-Belt
25	6.970-147.0	Батарея 12 В
26	7.343-167.0	Locking ring 35x1,5-FST-BR DIN 472
26	5.094-252.0	Sheet metal component covering cap belt
26	6.288-050.0	Engine oil 1L
27	7.401-022.0	Ball bearing 16003-2RS-WST PREISW. DIN 6
27	7.304-433.0	Hexagonal head screw M12x25-8.8-A3E ISO
27	6.368-324.0	Drain plug
28	5.100-547.0	Tension roller
28	7.312-263.0	Washer 12-100HV-A3E ISO7094
28	7.343-167.0	Locking ring 35x1,5-FST-BR DIN 472
29	5.100-231.0	Bush
29	5.625-491.0	Belt pulley blower
29	5.625-473.0	Belt pulley blower
29	7.304-404.0	Hexagonal head screw M8x40-8.8-A2E ISO
30	6.303-031.0	Screw M8x16-ST-A2R DIN 7500-1
30	6.401-317.0	Bearing 6206 2RS
30	7.312-277.0	Washer 8-200HV-A2E ISO7093-1
31	5.017-863.0	Holder tension roller blower
31	5.111-038.0	Spacer sleeve bearing
31	7.401-022.0	Ball bearing 16003-2RS-WST PREISW. DIN 6
32	6.273-055.0	Profile gasket
32	5.100-509.0	Axle blower
32	5.100-547.0	Tension roller
33	6.273-058.0	Sealing tape cellularrubber 9x4
33	7.318-104.0	Parallel key 8x7x14 -C45R DIN 6885-1
33	5.100-231.0	Bush
34	5.105-640.0	Axle blower
34	7.318-035.0	Parallel key 8x7x25 -C45R DIN 6885-1
34	5.112-610.0	Bush
35	7.318-104.0	Parallel key 8x7x14 -C45R DIN 6885-1
35	7.304-419.0	Hexagonal head screw M10x35-8.8-A3E ISO
35	7.311-510.0	Hexagon nut M 8-8-A2E ISO 7040
36	7.311-008.0	Hexagon nut M12-8-A3E ISO 4032
36	7.312-005.0	Washer 10-200HV-A3E ISO 7090
36	7.304-400.0	Hexagonal head screw M 8x30-8.8-A2E ISO
37	7.303-205.0	Screw 4x16-St-10.9-R2R (In6Rd)
37	7.312-285.0	Washer 10 -200HV-A2E ISO7093-1
37	7.311-004.0	Hexagon nut M8 -8-A3E ISO 4032
38	7.311-427.0	Hexagon nut M8 -04-A2E ISO 10511
38	7.311-511.0	Hexagon nut M10-8-A2E ISO 7040
38	7.303-259.0	Eye screw BM 8x40-4.6-A2E DIN 444
39	5.105-639.0	Flange blower
39	5.253-025.0	Bearing flange blower
39	6.330-197.0	Extension spring
40	7.303-046.0	Screw M6x12 -St-R3R (In6Rd)
40	7.312-261.0	Washer 8 -100HV-A3E ISO 7094
41	7.303-066.0	Винт M6x30 -St-R3R (In6Rd)
42	6.491-907.0	Oil level gauge
43	5.625-472.0	Belt pulley motor
44	5.484-002.0	Blower wheel D=184mm
45	6.304-040.0	Hexagonal head screw 5/16-24UNF-8.8-A2R
46	7.311-003.0	Hexagon nut M6 -8-A2E ISO 4032
47	7.312-003.0	Washer 6 -200HV-A3E ISO 7090
48	6.339-021.0	Rubber buffer 2xM6-D20 H15
49	7.303-032.0	Screw M4x12 -St-R2R (In6Rd)
50	4.040-782.0	Exhaust completely
50	4.040-641.0	Exhaust completely
51	7.312-281.0	Washer 4 -200HV-A2E ISO7093-1
52	6.454-191.0	Axle
53	6.491-839.0	Motor Honda GX160U1-QX-WE-OH
54	6.491-540.0	Air filter -HONDA 17210ZE1822
55	6.491-550.0	Ignition plug BPR6ES
