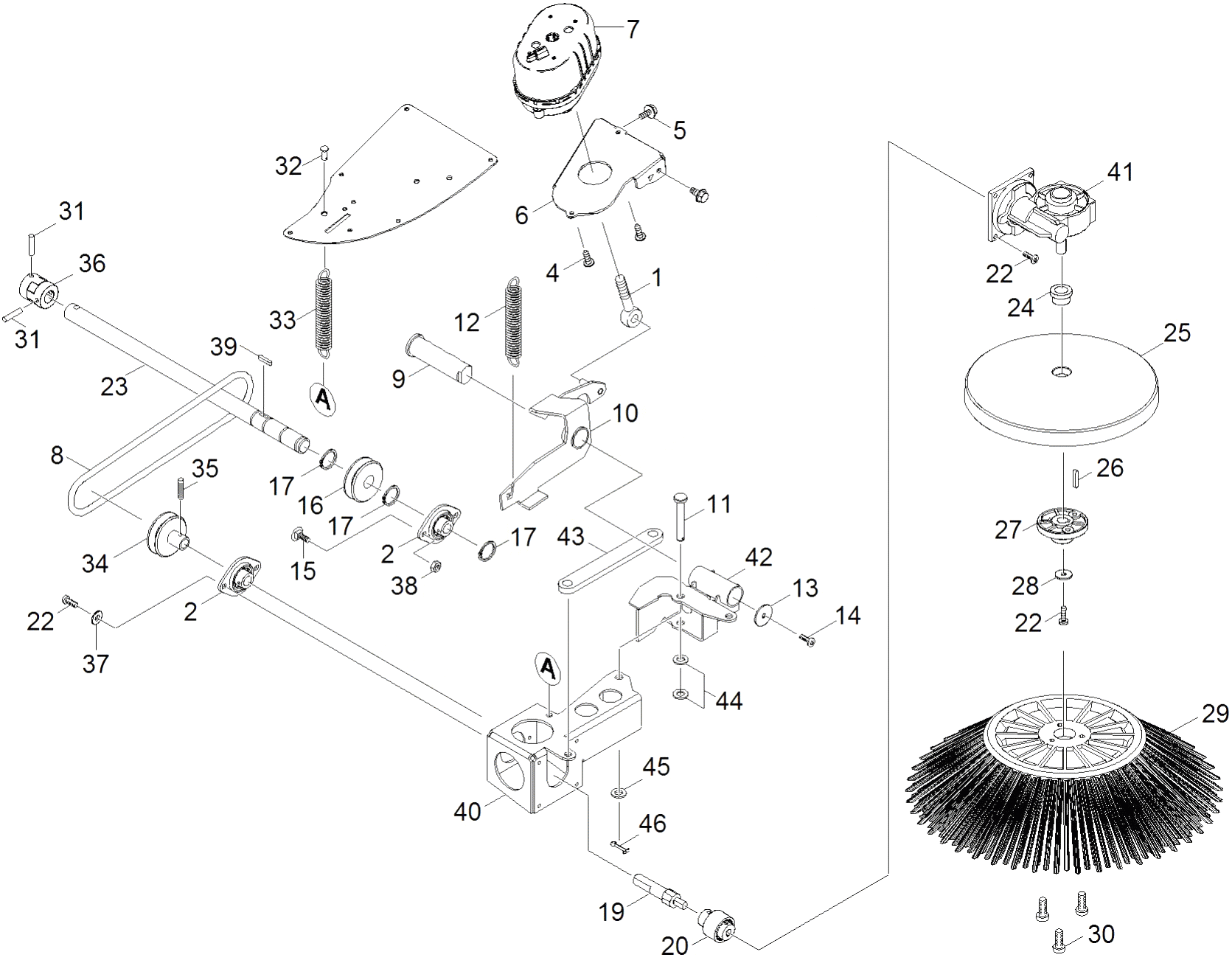

Karcher (Керхер) МК боковая щетка слева (0.210-751.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

REF.	АРТИКУЛ	ОПИСАНИЕ
1	7.303-262.0	Eye screw LBM 8x30-1.4571 DIN 444
1	5.033-213.0	Covering side left
1	6.321-196.0	Star grip M5x10
1	6.303-125.0	Screw 5x20-Sonder In6Rd+Spitze
2	6.401-242.0	Flanged bearing
2	5.033-165.0	Sweep tank left KM 90/60 R
2	7.313-002.0	Spring washer B 5-FSt-A3E DIN 127
2	6.632-482.0	Switch two-pole direction of travelling
3	7.311-004.0	Hexagon nut M8 -8-A3E ISO 4032
3	5.337-031.0	Plate spring stop
3	4.040-709.0	Lever lifting reversing rolling mill
3	5.032-738.0	Moulded part symbol washer KM100/100R
4	7.303-107.0	Screw 5x16 -10.9-P2R (K-In6Rd)
4	5.009-418.0	Plate locking bar sweep tank
4	7.306-230.0	Screw M8x25 -A4-70 (In6Rd)
4	7.307-025.0	Threaded pin M3x10 St-45H ISO 4029
5	6.303-031.0	Screw M8x16-ST-A2R DIN 7500-1
5	7.343-306.0	Lock washer 12-St-A2E DIN 6799
5	7.305-019.0	Countersunk screw M4x16 -8.8-R2R (In6Rd
6	5.061-444.0	Sheet metal component holder UDD links
6	7.312-289.0	Washer 8 -A2 ISO 7093-1
6	7.311-010.0	Hexagon nut M16-8-A3E ISO 4032
6	5.321-738.0	Handhold operational concept
7	6.421-331.0	Vacuum diaphragm unit oval lift 45 mm
7	7.304-033.0	Hexagonal head screw M 8X100-A4-70 ISO 4
7	7.306-089.0	Screw M6x12 -8.8-R2R (In6Rd)
7	6.632-475.0	Pushbutton two-pole hooter
8	6.348-409.0	Round belt
8	5.317-230.0	Bearing pin cover KM90/60R
8	6.421-331.0	Vacuum diaphragm unit oval lift 45 mm
8	7.306-217.0	Screw M5x14 -8.8-R2R (In6Rd)
9	5.105-591.0	Shaft bearing side brush
9	7.312-261.0	Washer 8 -100HV-A3E ISO 7094
9	5.009-184.0	Plate plate pedal
9	7.312-231.0	Serrated lock washer A5,3 -FSt-A3E DIN6
10	4.040-869.0	Lifting left complete
10	7.306-151.0	Cylinder head screw M8x65 -8.8-A2E ISO4
10	7.306-090.0	Screw M6x16 -8.8-R3R (In6Rd)
10	7.311-002.0	Hexagon nut M5 -8-A2E ISO 4032
11	7.316-225.0	Bolt B10,0x65-ST-A2E ISO 2341
11	5.095-540.0	Деталь из листового металла шарнир крышк
11	5.061-627.0	Sheet metal component hinge cover
11	7.303-204.0	Saucer-head screw M8x20 -St-A2R DIN 603
11	7.303-273.0	Saucer-head screw M8x25 -St-P2R DIN 603
11	6.631-736.0	Blind plug
12	6.330-200.0	Extension spring
12	5.033-166.0	Sweep tank right KM 90/60 R
12	7.311-093.0	Hexagon nut M8 -8-R2R ISO 4032
12	6.681-108.0	Hour counter 5-80V
13	5.115-150.0	Washer
13	5.033-214.0	Covering side right
13	5.061-449.0	Sheet metal component holder pedal
13	2.885-057.0	Set control panel circuit board
14	7.306-031.0	Screw M 6x16-A2-70 DIN 7984
14	6.970-147.0	Батарея 12 В
14	5.317-211.0	Bolt pedal GSK
14	7.303-030.0	Screw M4x8 -St-P2R (In6Rd)
14	6.600-113.0	Pushbutton emergency stop
15	7.303-139.0	Saucer-head screw M6x20 -A2 DIN 603
15	6.304-121.0	Oval head screw M 5X12
15	6.403-047.0	Plain bearing
15	6.600-114.0	Switch
16	5.625-477.0	Belt pulley
16	5.064-379.0	Cover front panel Grau
16	5.064-262.0	Cover front panel KM 90/60 R
16	7.343-007.0	Locking ring 20x1,2-FST-RF DIN 471
16	2.630-001.0	Switch program selection
17	7.343-004.0	Locking ring 15x1-FST-PHR DIN 471
17	6.365-371.0	Profile gasket
17	6.273-308.0	Profile gasket
17	7.306-224.0	Screw M10x35-A2-70 DIN 7984
17	6.362-410.0	O-Ring seal 40,4x1,5
18	6.313-014.0	Spring element
18	5.321-701.0	Handhold
18	5.033-164.0	Covering rear KM 90/60 R P
18	5.033-229.0	Covering rear KM 90/60 R BAT
19	7.304-521.0	Hexagonal head screw M 6x16-A4-70 ISO 4
19	5.105-590.0	Shaft transmission side brush
19	7.303-030.0	Screw M4x8 -St-P2R (In6Rd)
19	5.392-922.0	Label side 280 x 108
20	5.061-448.0	Sheet metal component lever GSK
20	6.465-020.0	Coupler
20	5.392-907.0	Label signet gel 102 x 113
20	6.303-125.0	Screw 5x20-Sonder In6Rd+Spitze
21	5.061-442.0	Sheet metal component connection GSK-Ped
21	5.033-163.0	Front component filter box KM 90/60 R
22	7.311-425.0	Hexagon nut M6 -04-A2E ISO 10511
22	7.306-092.0	Screw M6x20-ST- 8.8-R3R (IN6RD)
22	6.303-125.0	Screw 5x20-Sonder In6Rd+Spitze
23	4.040-832.0	Sheet metal component complete pedal GSK
23	5.105-618.0	Shaft transmission left SB
23	6.303-125.0	Screw 5x20-Sonder In6Rd+Spitze
23	4.040-617.0	Sheet metal component complete pedal GSK
24	6.330-091.0	Extension spring
24	5.110-703.0	Sleeve
24	7.303-030.0	Screw M4x8 -St-P2R (In6Rd)
25	7.312-264.0	Washer 5-100HV-A3E ISO 7094
25	5.064-252.0	Rejecting plate
26	7.305-104.0	Countersunk screw M8x25 -8.8-R3R ISO 10
26	7.318-079.0	Parallel key A 5x5x25-C45R DIN 6885
27	4.040-815.0	Dust protection vacuum diaphragm unit ov
27	5.120-305.0	Hub
28	7.312-260.0	Washer 6 -100HV-A3E ISO 7094
29	6.906-132.0	Side broom standard
29	6.905-626.0	Side broom soft
30	7.306-500.0	Cylinder head screw M6x12-8.8-A2E DIN 6
31	6.491-557.0	Spring pin
31	7.314-945.0	Spring pin 5,0x28-St ISO 8752
32	5.317-086.0	Bolt power brush
33	6.330-079.0	Extension spring
34	5.625-360.0	Belt pulley
35	7.307-352.0	Threaded pin M 6X 14-45H ISO 4029
36	6.465-027.0	Coupler
37	7.312-276.0	Washer 6 -200HV-A2E ISO7093-1
38	7.311-425.0	Hexagon nut M6 -04-A2E ISO 10511
39	7.318-065.0	Parallel key 5x5x14-C45R DIN 6885
40	4.040-870.0	Arm side brush left
41	6.454-036.0	Червячная передача
42	4.040-868.0	Suspension side brush left
43	5.062-367.0	Sheet metal component fixing battery
43	6.330-456.0	Extension spring RZ-177I m=5
44	7.312-062.0	Washer 10-Kunststoff ISO7089
45	7.312-005.0	Washer 10-200HV-A3E ISO 7090
46	7.316-341.0	Cotter 3,2x16-St-A2E ISO 1234
