Karcher (Керхер) Вагон (0.176-001.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

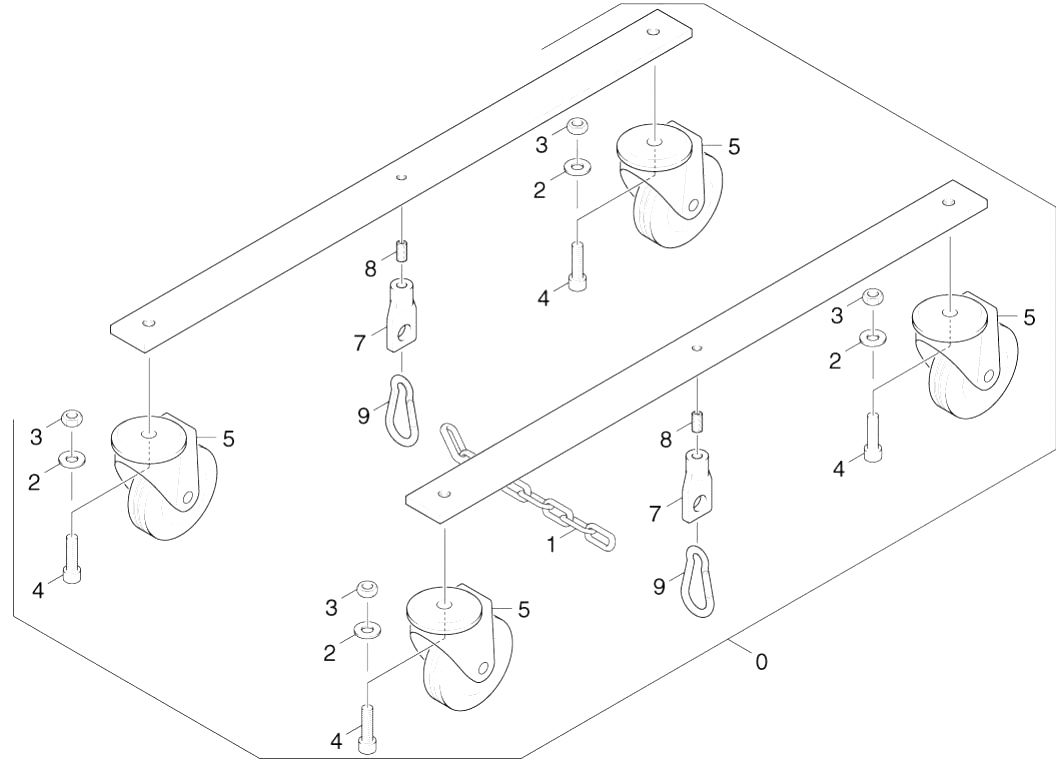

REF.	АРТИКУЛ	ОПИСАНИЕ
1	6.432-025.0	Chain 214LG
2	7.312-262.0	Washer 10 -100HV-A3E ISO 7094
3	7.311-511.0	Hexagon nut M10-8-A2E ISO 7040
4	7.306-074.0	Cylinder head screw M10x35-8.8-A3E ISO4
5	6.435-061.0	Castor D 75
7	6.373-430.0	Ear IG M8
8	7.307-417.0	Threaded pin M8x16 -45H-A2E ISO 4026
9	5.048-895.0	Sheet metal component black white mit Ka
9	6.431-077.0	Snap hook
10	7.306-211.0	Screw M 4x25-A2-70 (IN6RD)
10	5.048-897.0	Sheet metal component base plate
11	4.802-009.0	Mounting part self-service vacuum cleane
11	5.380-596.0	Label Muenzsymbol
11	5.383-490.0	Label Muenzsymbol
12	6.273-058.0	Sealing tape cellularrubber 9x4
13	7.306-182.0	Pan head screw M5x16 -A2-70 ISO 14583
13	5.383-447.0	Label self-service vacuum cleaner DUO
14	6.310-062.0	Cap nut M 8
14	5.380-597.0	Label Muenzsymbol
14	5.383-491.0	Label Muenzsymbol
15	7.315-411.0	Rivet 8,0x0,4x6,0-CuZn DIN 7340
15	5.049-079.0	Sheet metal component black column
16	6.304-054.0	Hexagonal head screw M 8x 16
16	6.631-165.0	Switch
17	5.042-268.0	Hose holder
17	5.042-403.0	Hose holder
17	6.768-070.0	Slot lock electrically
19	6.542-030.0	Spring drive 1-2kg
20	7.311-006.0	Hexagon nut M10 -8-A3E ISO 4032
21	7.306-021.0	Cylinder head screw M10x50 -A2-70 ISO 4
