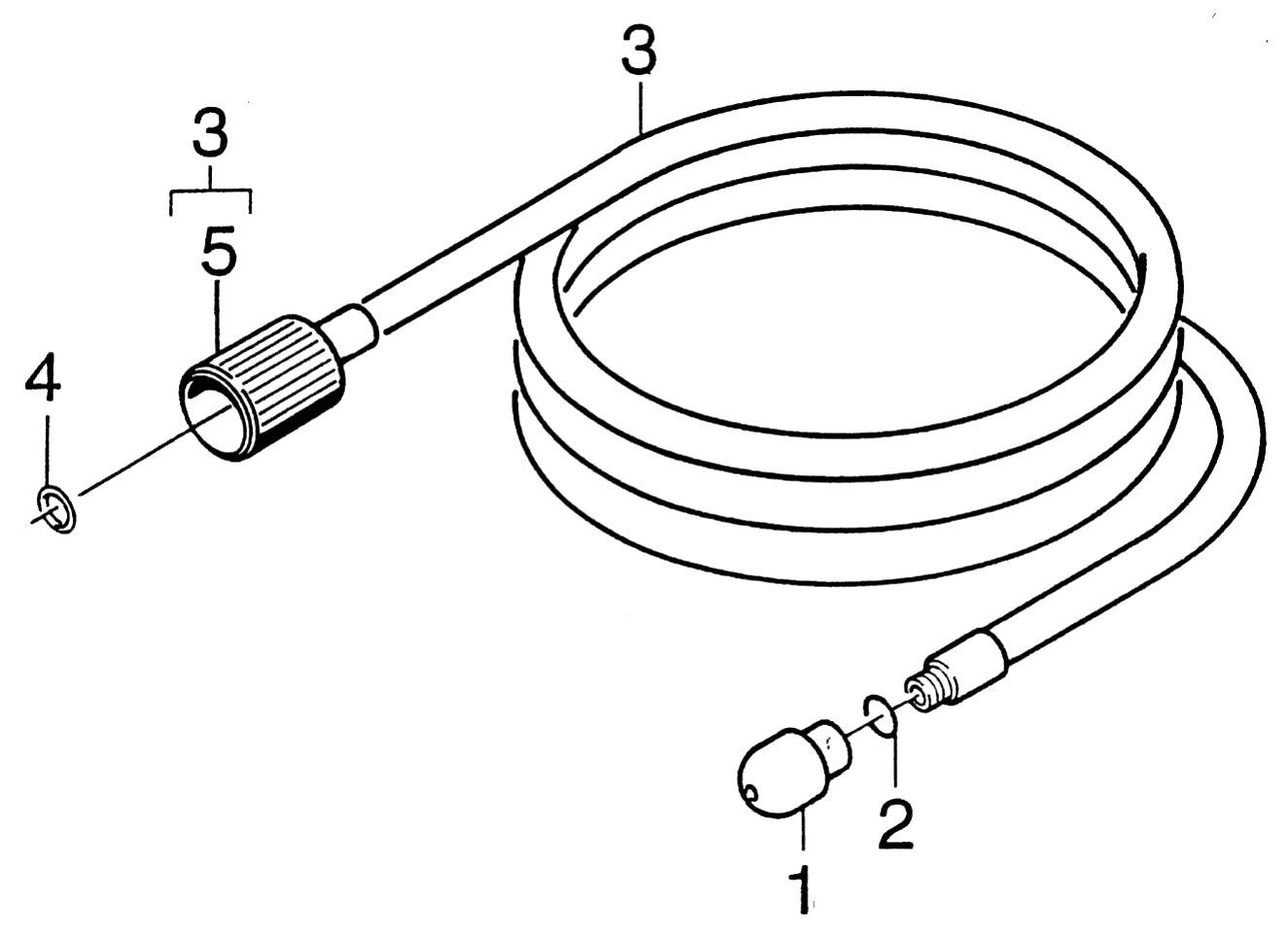

| REF. | АРТИКУЛ | ОПИСАНИЕ | ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
|---|---|---|---|
| 1 | 5.763-022.0 | Nozzle K?rcher | |
| 2 | 6.362-388.0 | O-Ring seal 8,0x1,5 -EPDM 70 | |
| 3 | 6.388-299.0 | Hose PE 6/4 | |
| 4 | 4.584-423.0 | Valve pin complete only for replacement | |
| 5 | 4.762-061.0 | Adapter A | |
| 5 | 2.880-154.0 | O-Ring kit | |
| 5 | 5.394-157.0 | Protection part | |
| 6 | 6.386-655.0 | Union nut M 22 X 1,5 | |
| 7 | 4.037-013.0 | Hook | |
| 8 | 6.362-388.0 | O-Ring seal 8,0x1,5 -EPDM 70 | |
| 9 | 5.061-749.0 | Housing | |
| 10 | 5.032-634.0 | Moulded part | |
| 12 | 6.362-930.0 | O-Ring seal 5,0 X 1,5 | |
| 13 | 5.108-291.0 | Turned part | |
| 14 | 5.321-733.0 | Handhold | |
| 15 | 7.307-360.0 | Threaded pin M 5X 6-A2-21H ISO 4029 | |
| 16 | 5.581-285.0 | Valve seat | |
| 17 | 6.363-045.0 | O-Ring seal 8X1,25 NBR | |
| 18 | 5.332-512.0 | Helical spring | |
| 20 | 5.553-465.0 | Piston | |
| 22 | 5.584-134.0 | Valve pin | |
| 24 | 6.388-216.0 | Hose DN 5 | |
| 25 | 5.731-652.0 | Filter with weight | |
| 26 | 5.116-349.0 | Washer 22.5 x 3,5 | |
| 27 | 5.304-088.0 | Hexagonal head screw | |
| 28 | 5.769-204.0 | Nozzle insert | |
| 29 | 6.365-519.0 | O-Ring seal 9,0x1,5 EPDM |
