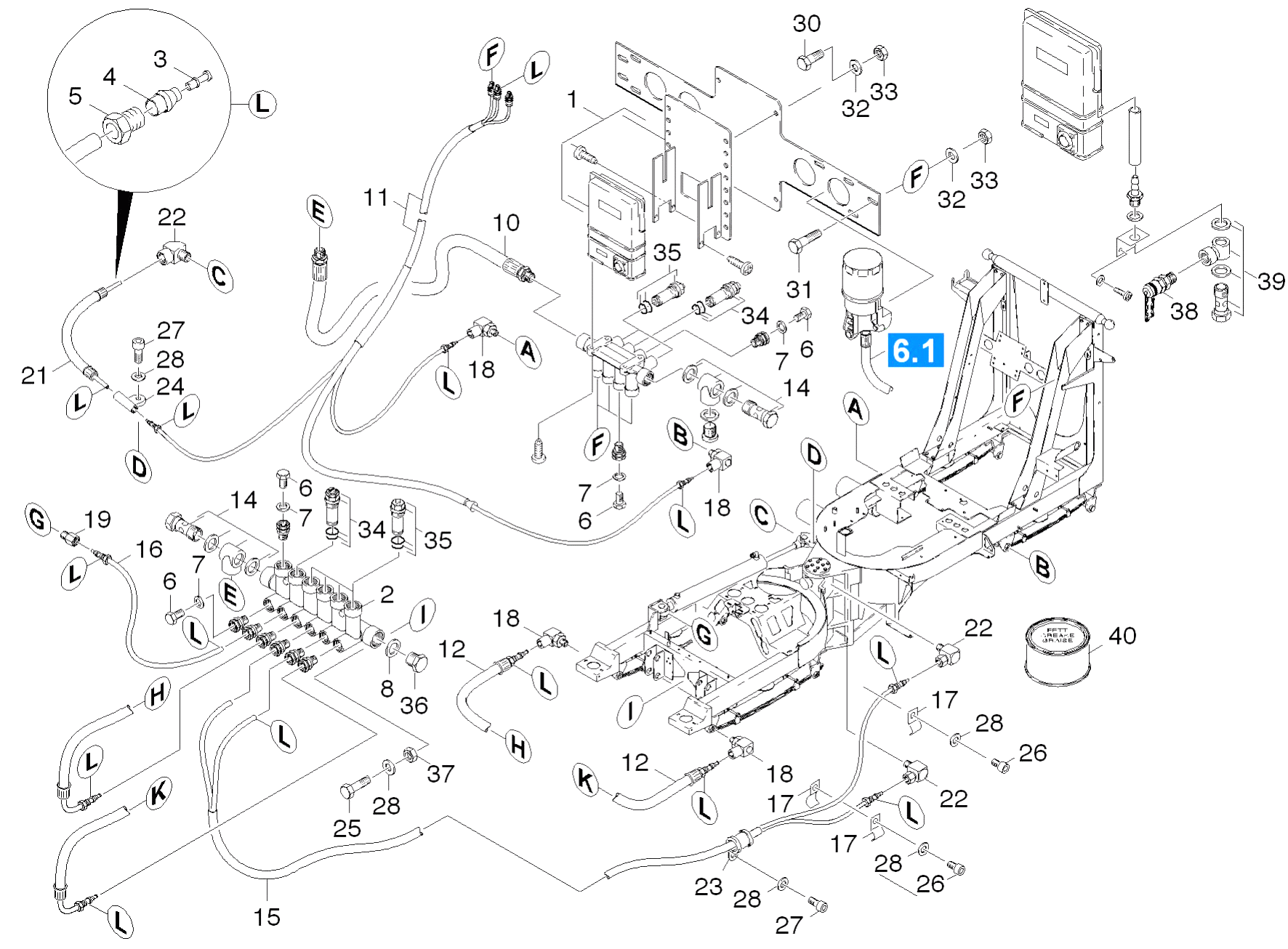

Karcher (Керхер) Централизованная смазка (0.207-931.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

REF.	АРТИКУЛ	ОПИСАНИЕ
1	2.882-624.0	Conversion kit central lubricating syste
1	4.040-118.0	Sheet metal component complete right Tue
1	6.465-024.0	"""Coupler Storz A 4"""" BSP IG4"""" Al """
2	6.996-882.0	Distributor piston
2	4.040-117.0	Sheet metal component complete left Tuer
2	4.040-220.0	Connection piece pipe 4 ZOLL
3	6.996-883.0	Receptacles for tabs 4MM
3	6.375-337.0	Closure with key Southco Serie1
3	6.391-129.0	Hose clip
4	6.996-884.0	Cone ring 4MM
4	6.996-535.0	Hose
5	6.996-885.0	Hollow screw 4MM
5	6.368-106.0	Edge protection
5	5.470-047.0	"""Coupler G 3/8"""" BSP """
6	6.996-886.0	Screw plug
6	5.310-136.0	Nut G 3/8 BSP
7	6.996-887.0	Seal CU 8x12
7	7.304-810.0	Hexagonal head screw M 8x45-A4-70 ISO 4
7	5.409-511.0	"""Nipple 1/4""""-BSPT """
8	6.996-888.0	Seal CU 16X20
8	7.312-268.0	Washer 8 -A2 ISO 7094
8	5.310-134.0	Nut 1/4 BSPT 521364
9	7.311-514.0	Hexagon nut M 8-A2-70 ISO 7040
9	4.040-217.0	Coupler
10	6.996-889.0	Hose assembly
10	5.110-987.0	Sleeve
10	4.040-216.0	Holder
11	6.996-890.0	Hose assembly 3AD
11	7.306-215.0	Screw M5x45 -8.8-R2R (In6Rd)
11	5.470-045.0	Coupler 4 ZOLL 521351
12	6.996-891.0	Hose assembly 550
12	6.996-543.0	Cover D305MM
12	7.304-537.0	Hexagonal head screw M 8x30-A4-70 ISO 4
13	4.040-307.0	Assembly group holder LBS
14	6.996-893.0	Screw connector
14	5.363-595.0	Seal 180/114/4
15	6.996-894.0	Hose assembly 2AD
15	6.996-530.0	Serrated locking washer D8
16	6.996-895.0	Tube red 4mm
16	6.997-186.0	Elbow connector 8MM
17	6.996-896.0	Clamp
17	7.312-003.0	Washer 6 -200HV-A3E ISO 7090
18	6.996-897.0	Swivel joint M8
18	7.311-425.0	Hexagon nut M6 -04-A2E ISO 10511
19	6.997-282.0	Connecting piece M8
19	7.304-536.0	Hexagonal head screw M 6x20-A4-70 ISO 4
20	6.996-544.0	Clamp
21	6.996-900.0	Hose assembly
21	4.040-218.0	Strap
22	6.996-901.0	Elbow 8X1
22	5.128-556.0	Tube
23	6.996-902.0	Pipe clamp rubber
23	5.058-485.0	Sheet metal component 521145
24	6.996-903.0	Joining piece
24	4.040-221.0	Sheet metal component
25	7.304-509.0	Hexagonal head screw M 6x25-A4-70 ISO 4
25	6.996-582.0	Belt fixing
26	6.996-586.0	Nozzle
27	7.306-031.0	Screw M 6x16-A2-70 DIN 7984
27	6.997-189.0	Hose nozzle 8mm
28	6.996-533.0	Serrated locking washer D6
28	6.997-190.0	Cable tie 775MM
29	6.390-218.0	Hose clip 13,8
30	7.304-397.0	Hexagonal head screw M8x20-8.8-A2E ISO
30	6.388-192.0	Hose DN 6
31	7.304-400.0	Hexagonal head screw M 8x30-8.8-A2E ISO
31	6.996-587.0	Nipple
32	6.996-530.0	Serrated locking washer D8
32	6.996-588.0	Coupler
33	7.311-427.0	Hexagon nut M8 -04-A2E ISO 10511
33	6.996-589.0	Screw connector
34	6.996-905.0	Nipple metering 0.05
34	5.310-135.0	Nut G4 374 521353
35	6.996-906.0	Nipple metering 0.20
35	6.996-847.0	Spacer rubber
36	6.996-909.0	Screw plug
37	7.311-425.0	Hexagon nut M6 -04-A2E ISO 10511
38	6.997-298.0	Nipple connection
38	6.996-848.0	Base
39	6.997-299.0	Screw connector adjustable
39	6.641-458.0	Cable tape
40	6.964-093.0	Viscous oil 1kg
40	5.132-164.0	Threaded part 521357
41	6.996-932.0	Valve
42	6.286-442.0	Adhesiv cloth tape Cellopren 50mm x 10m
43	5.409-512.0	"""Screw connector 8-3/8"""" """
44	6.996-791.0	Hose plastics
45	7.311-235.0	Castle nut M12X1,5-8-A3E DIN 935
46	6.996-989.0	"""Double nipple 3/8"""" """
47	4.040-222.0	Tube
48	5.007-723.0	Sheet metal component
49	5.470-046.0	Coupler 4 ZOLL 521355
