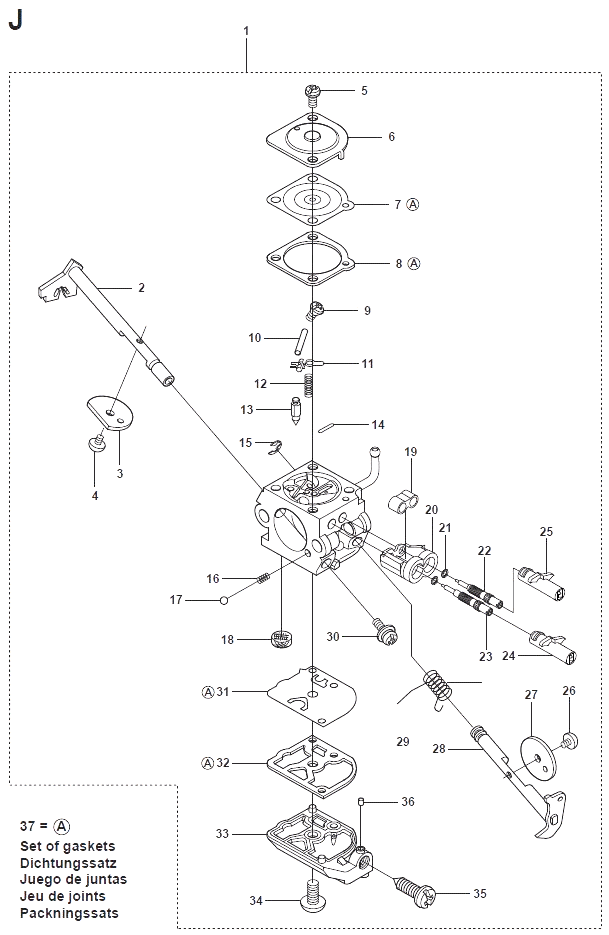

| REF. | АРТИКУЛ | ОПИСАНИЕ | ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
|---|---|---|---|
| 1 | 5032831-19 | unknounG1 | |
| 2 | 5373902-01 | SHAFT | |
| 3 | 5373703-01 | CHOKE FLAP | |
| 4 | 5034818-01 | Винт | |
| 5 | 5034805-01 | SCREW | |
| 6 | 5039743-01 | COVER | |
| 7 | 5034802-01 | METERING DIAPHRAGM | |
| 8 | 5034803-01 | GASKET METERING SIDE | |
| 9 | 5034801-01 | SCREW | |
| 10 | 5034800-01 | PIN FULCRUM | |
| 11 | 5036659-01 | LEVER | |
| 12 | 5370203-01 | unknounG1 | |
| 13 | 5034797-01 | INLET NEEDLE | |
| 14 | 5035356-01 | PLUG | |
| 15 | 5373852-01 | Кольцо стопорное | |
| 16 | 5370126-01 | SPRING | |
| 17 | 5370125-01 | BALL | |
| 18 | 5035357-01 | STRAINER | |
| 19 | 5372742-01 | SLEEVE | |
| 20 | 5039034-01 | SLEEVE | |
| 21 | 5039740-01 | WASHER | |
| 22 | 5372755-01 | LOW SPEED NEEDLE | |
| 23 | 5372756-01 | NEEDLE HIGH SPEED | |
| 24 | 5039033-01 | CAP | |
| 25 | 5039032-01 | CAP | |
| 26 | 5034792-01 | SCREW | |
| 27 | 5373901-01 | THROTTLE FLAP | |
| 28 | 5373900-01 | SHAFT | |
| 29 | 5370197-01 | SPRING | |
| 30 | 5037553-01 | SCREW | |
| 31 | 5370200-01 | PUMP DIAPHRAGM | |
| 32 | 5370201-01 | GASKET | |
| 33 | 5370202-01 | COVER | |
| 34 | 5034796-01 | SCREW | |
| 35 | 5370207-01 | IDLE SCREW |
